DIY BI-LED HEADLIGHT RETROFIT KIT

Upgrade your headlights with the PVS DIY H4 Bi-LED Projector Kit – a complete plug-and-play solution designed to modernise your factory halogen headlights. Inspired by OEM-quality retrofits, this kit delivers crisp low and high beam performance, improved night visibility, and a sharp, focused beam pattern — all while maintaining your vehicle’s original housing. Engineered for H4 halogen headlight compatibility, this DIY kit includes everything you need for a clean and reliable install, including Bluetooth-enabled shrouds and a custom PVS-etched finish for a professional result.

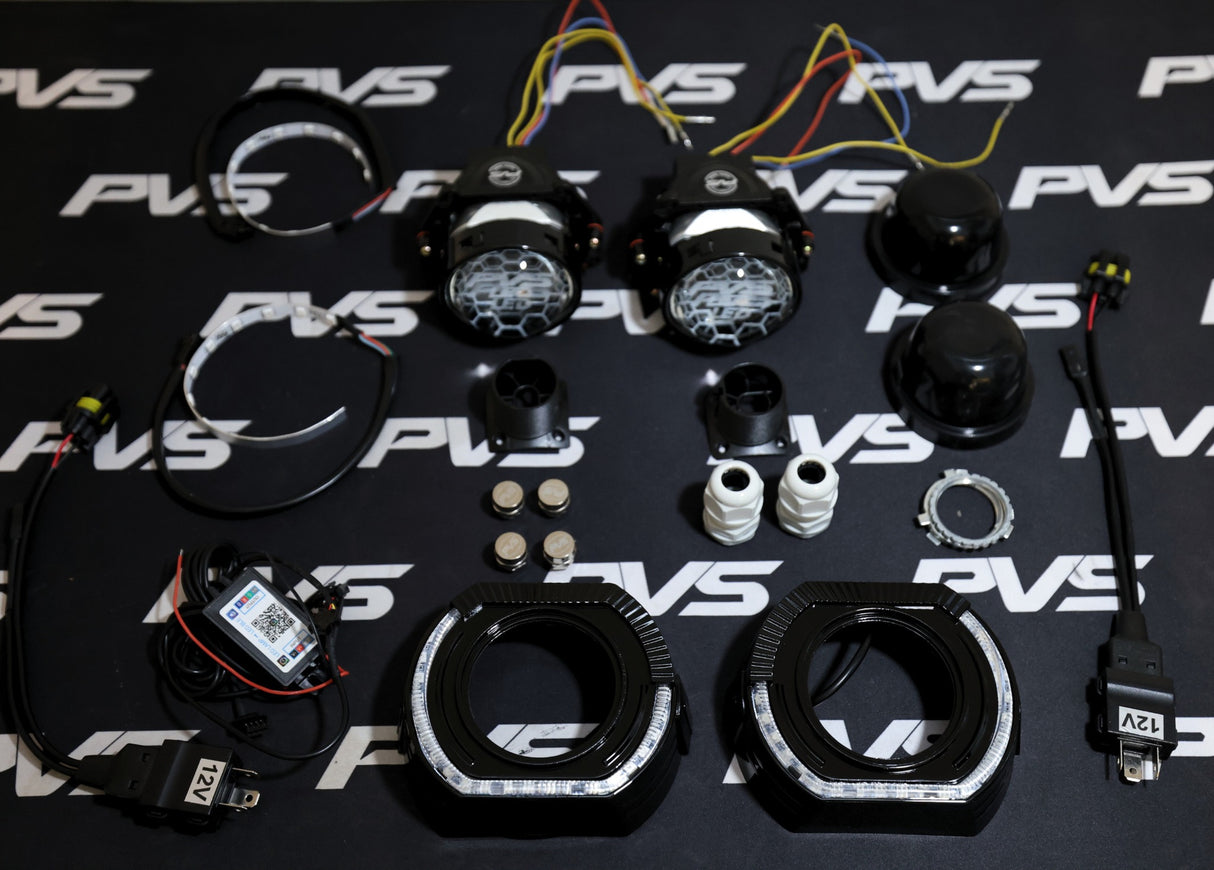

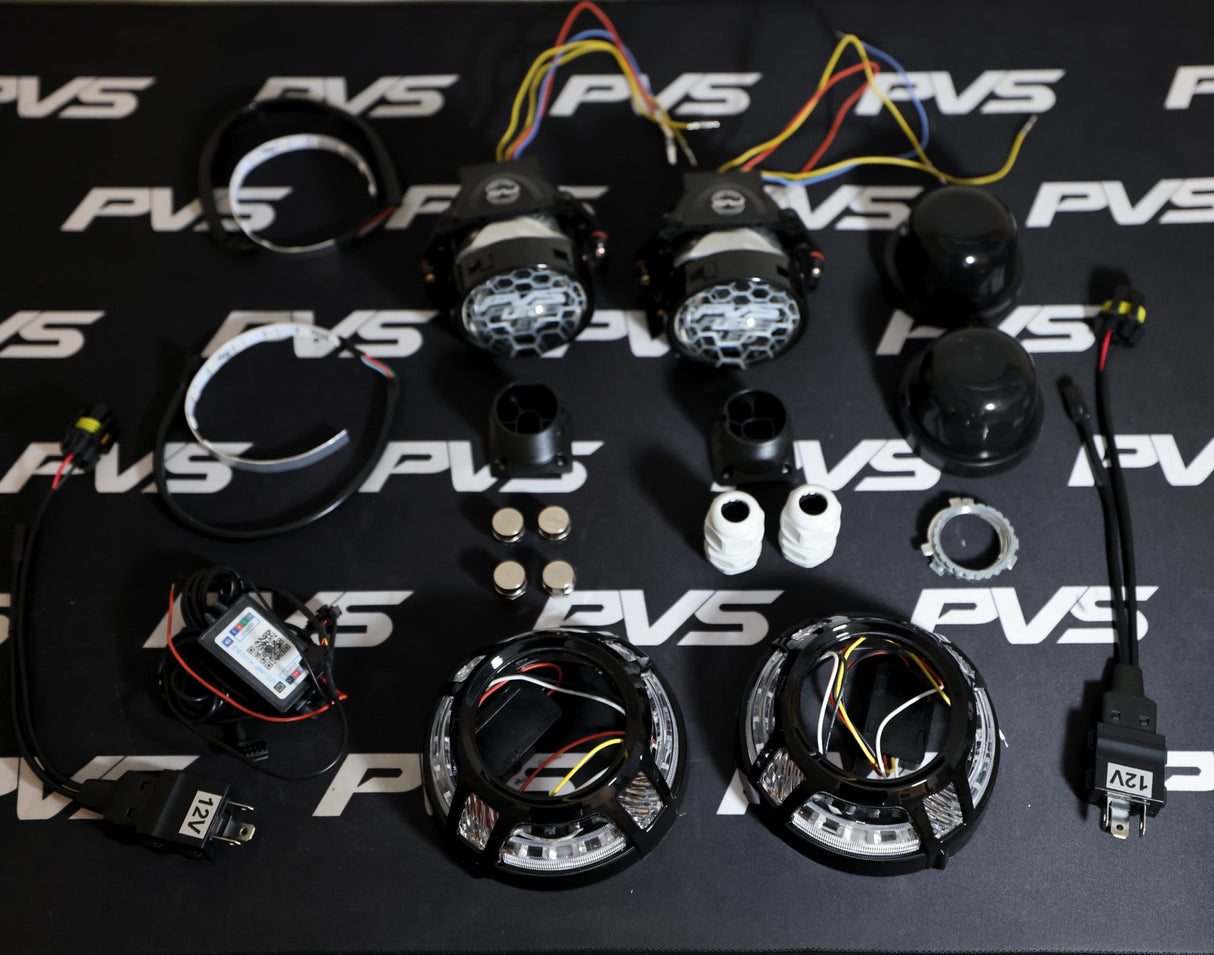

What’s in the Box?

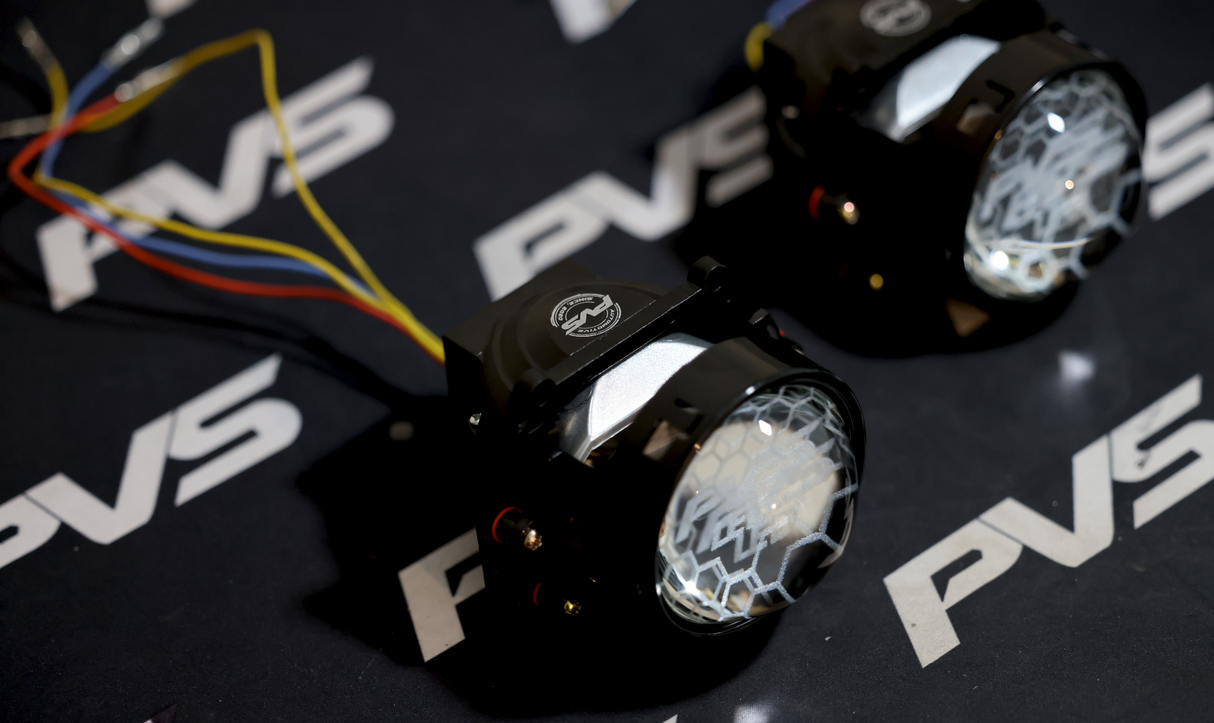

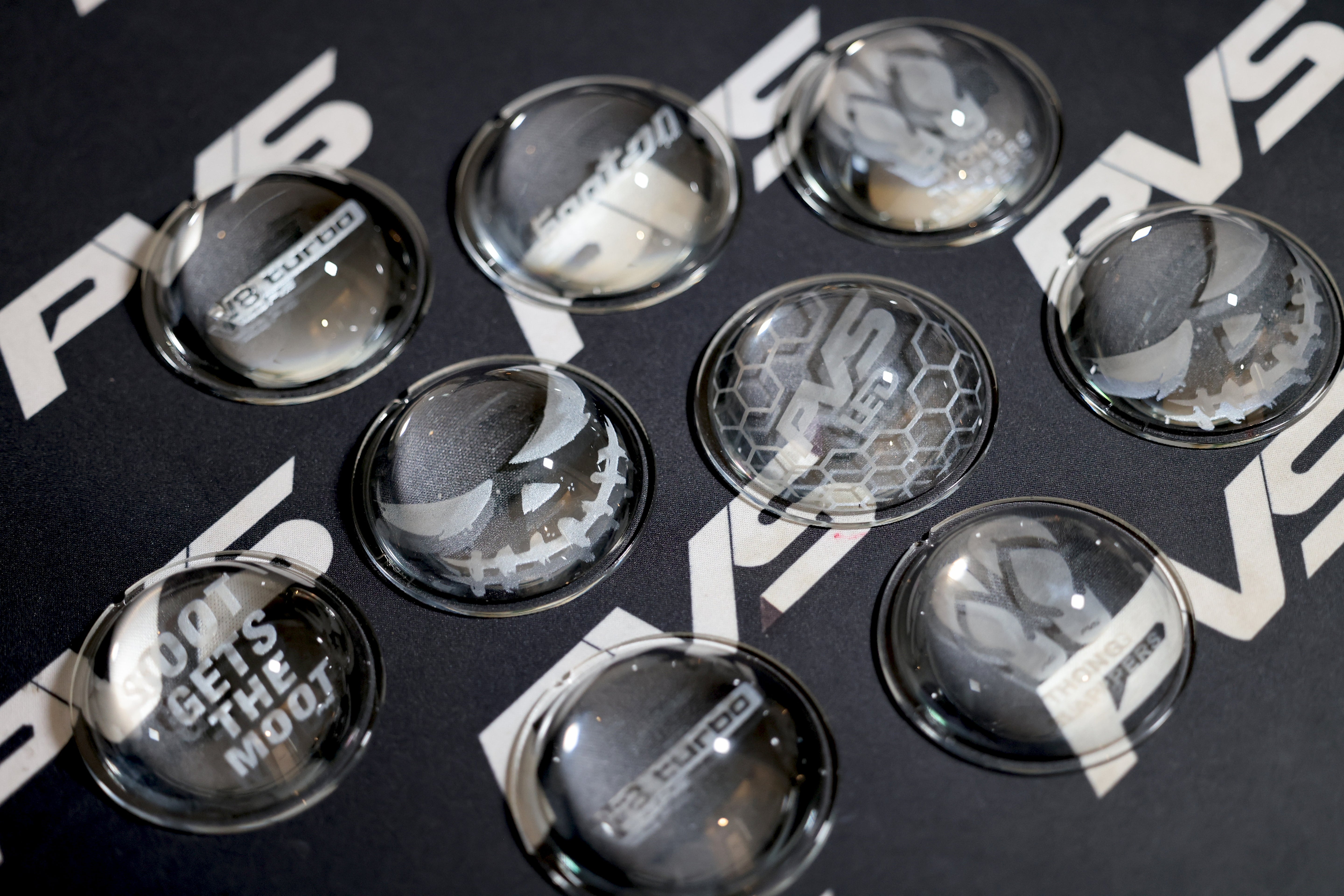

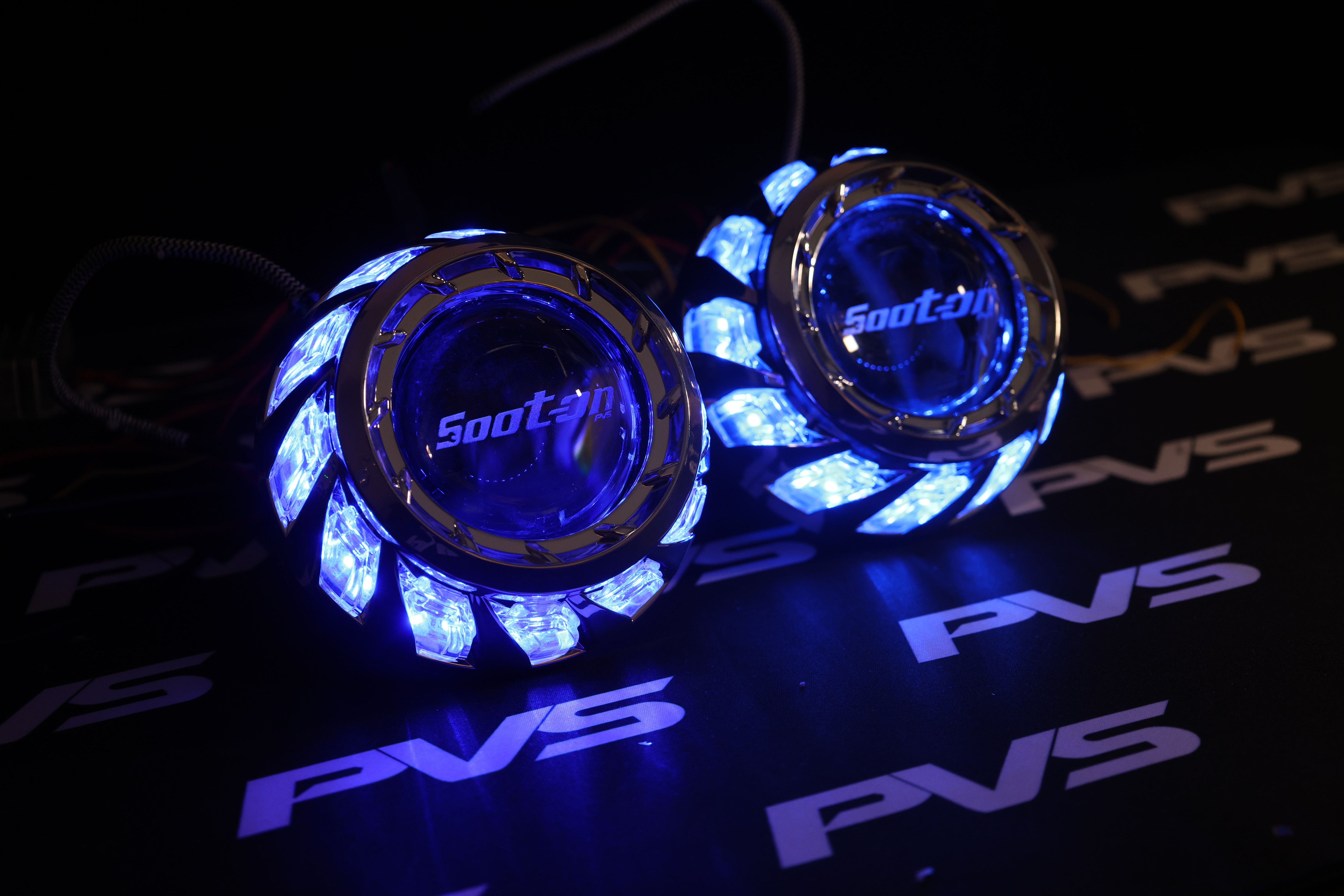

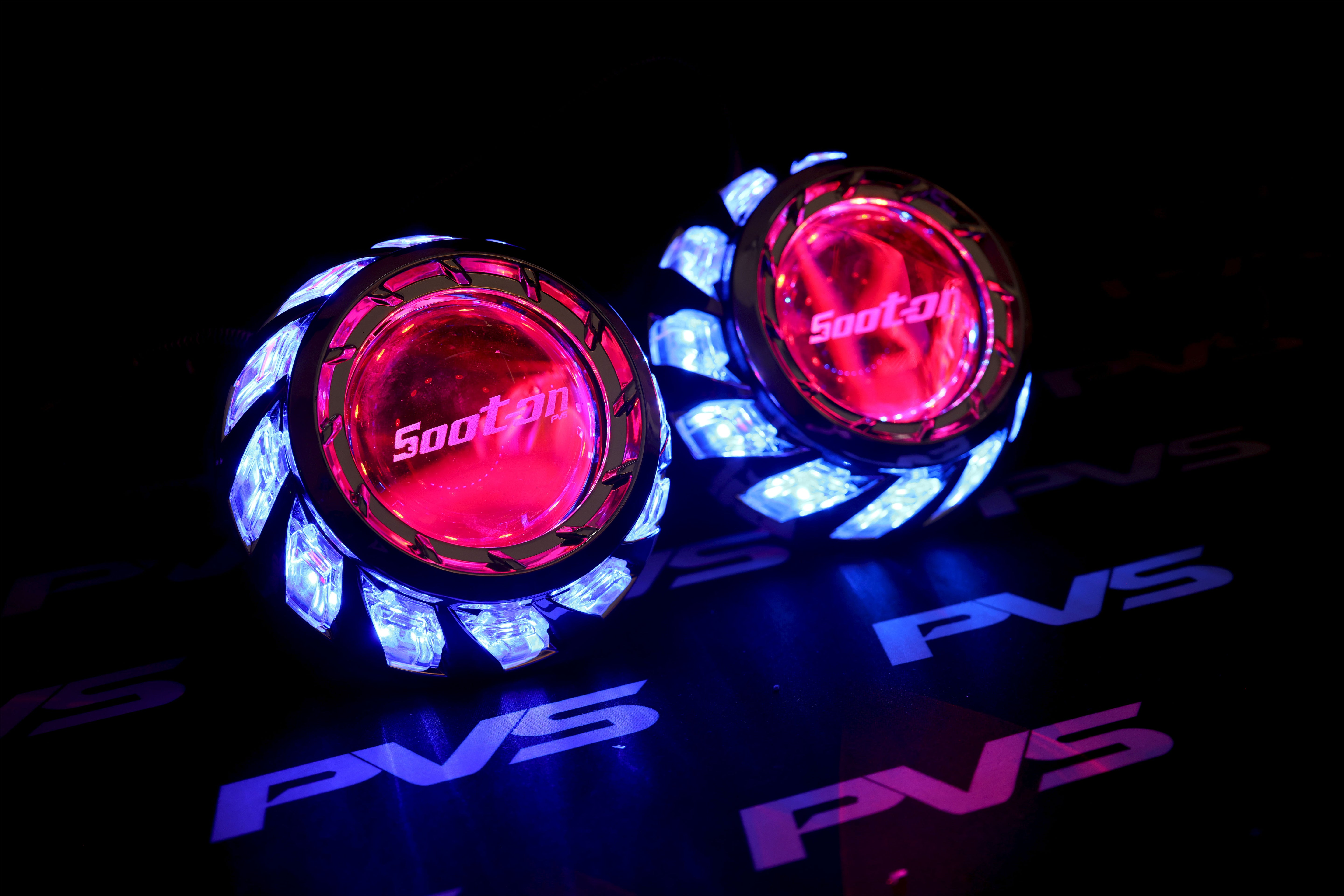

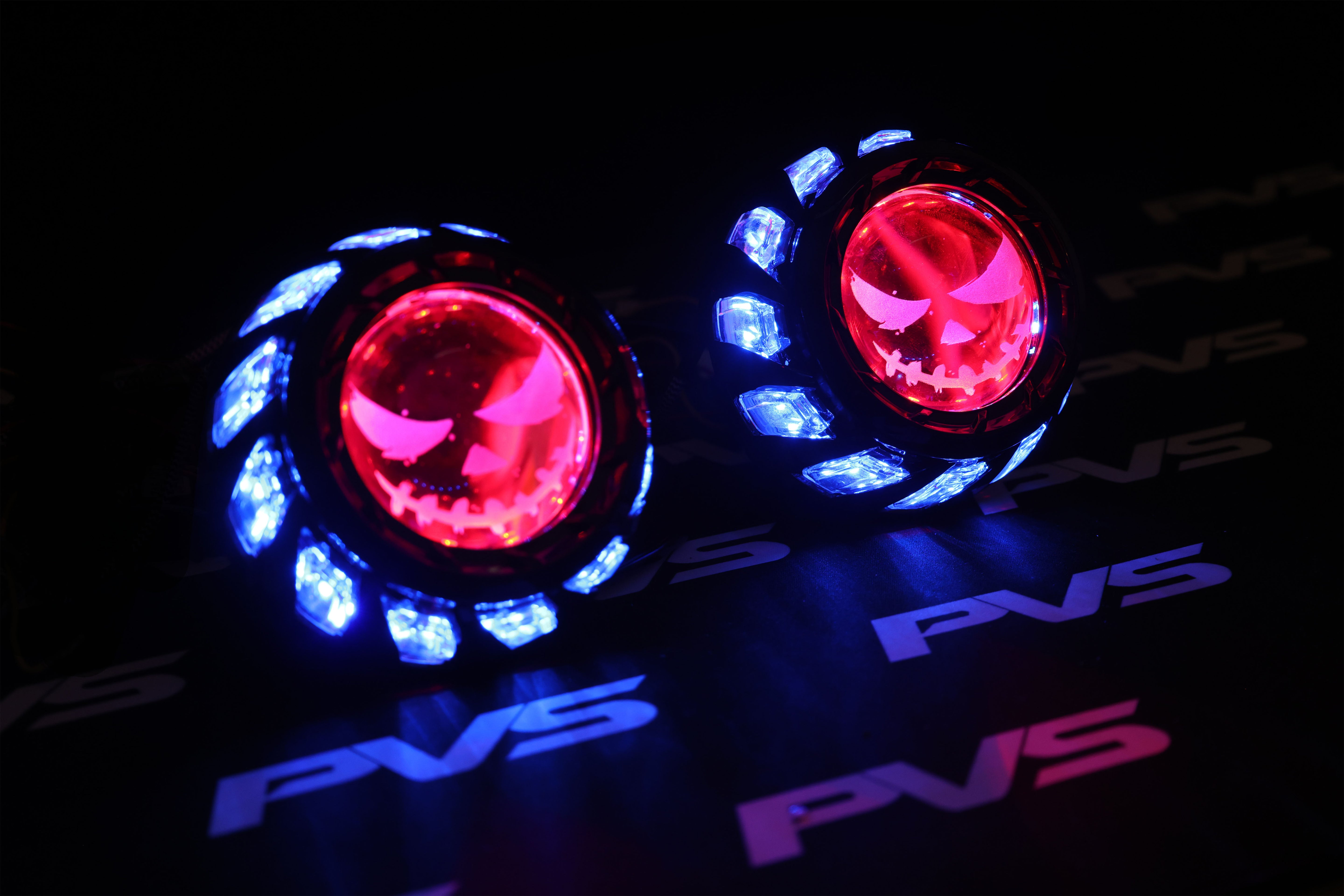

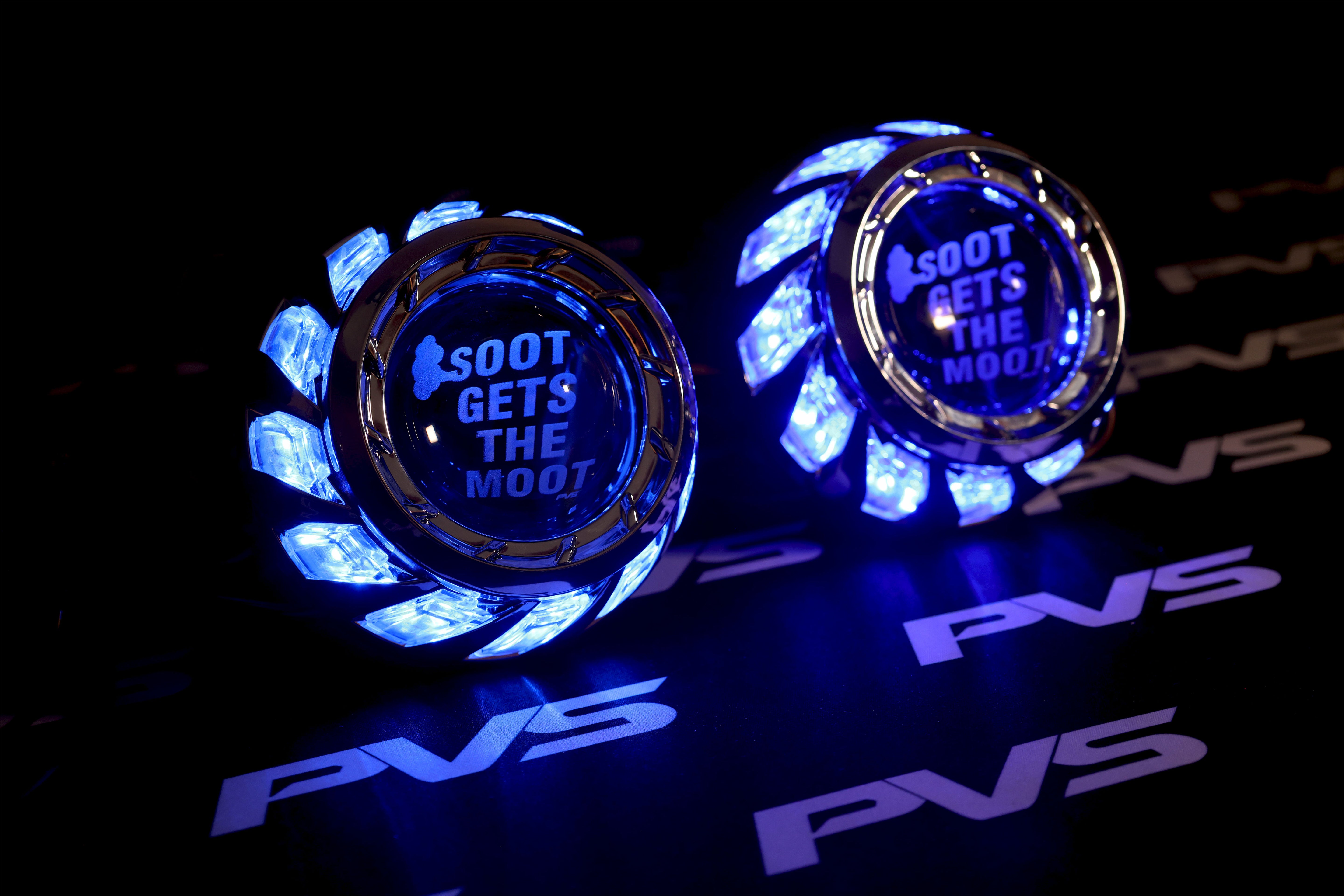

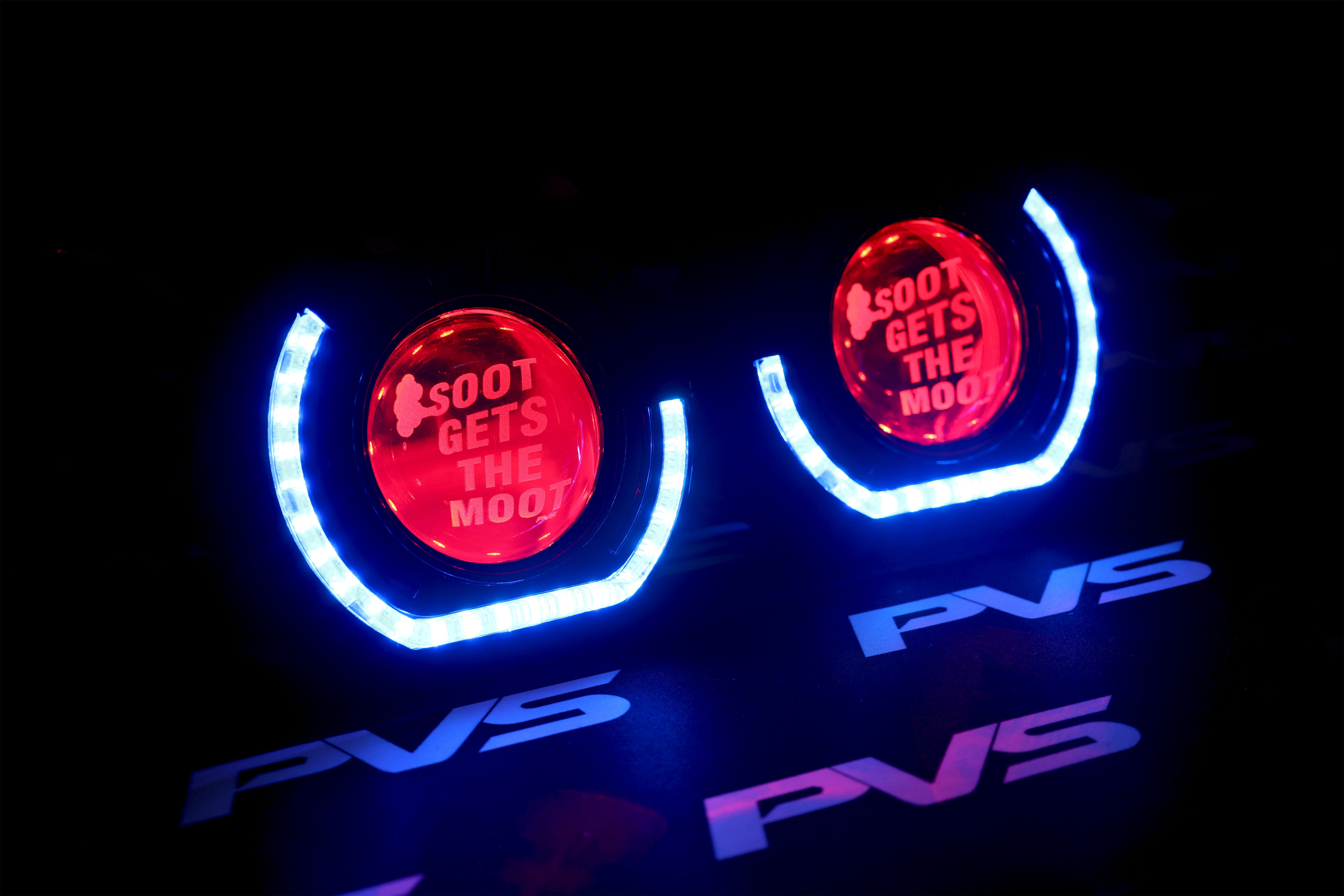

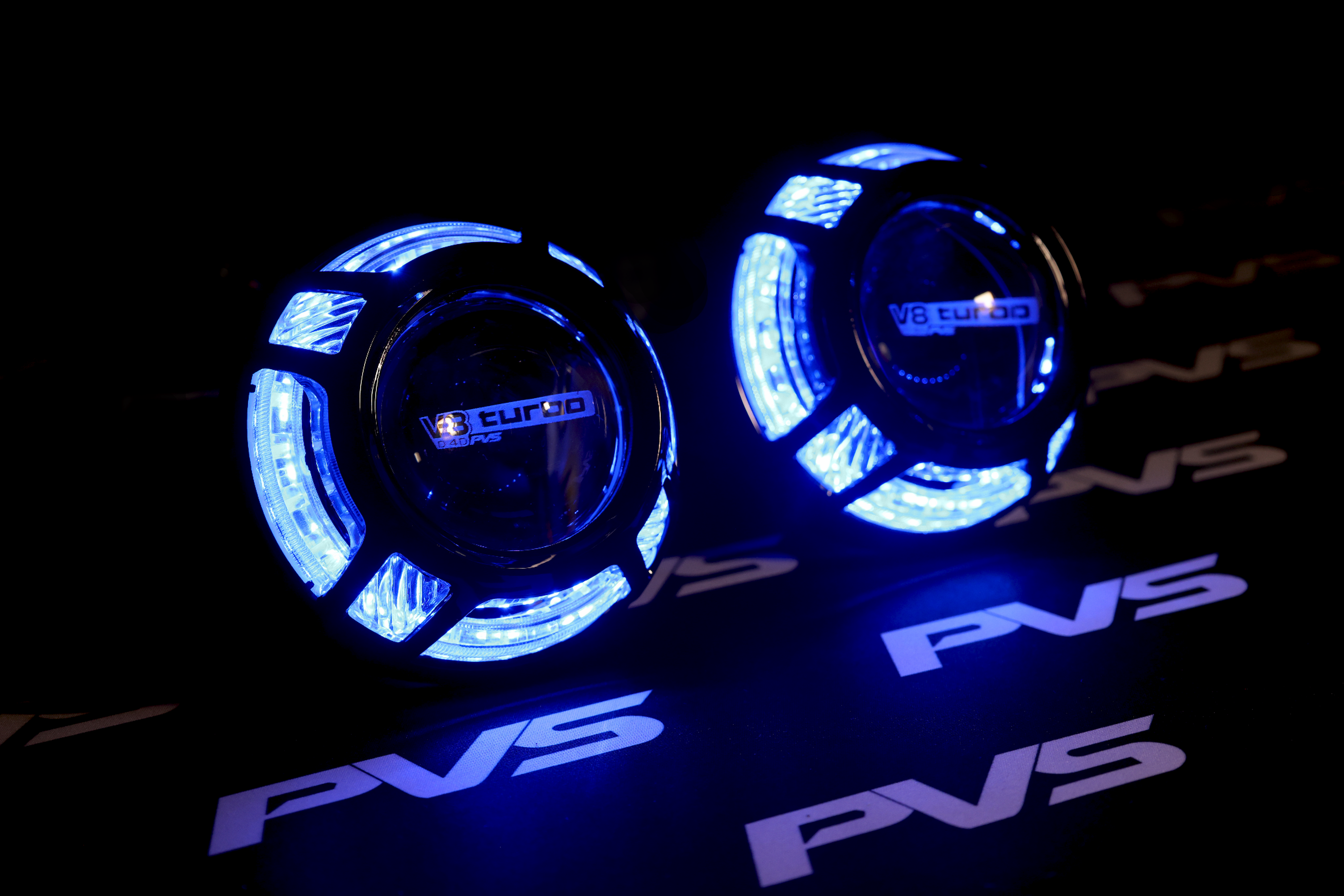

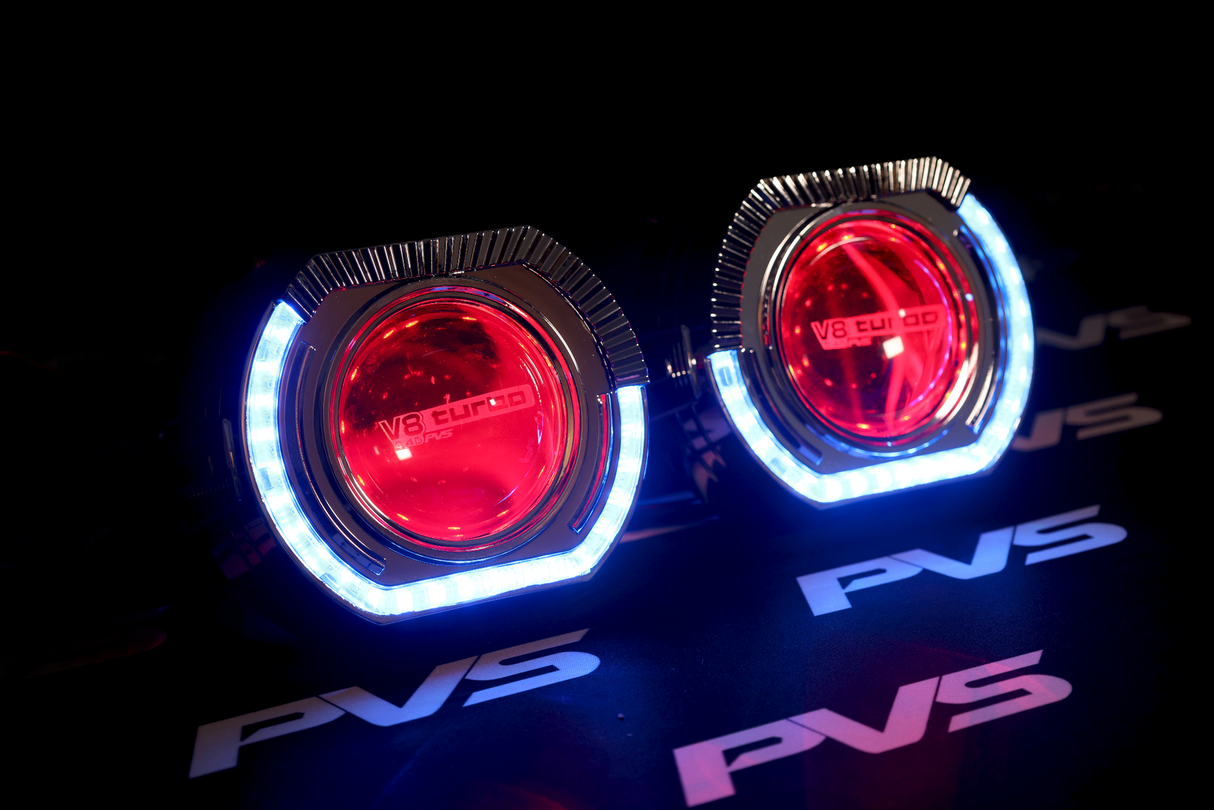

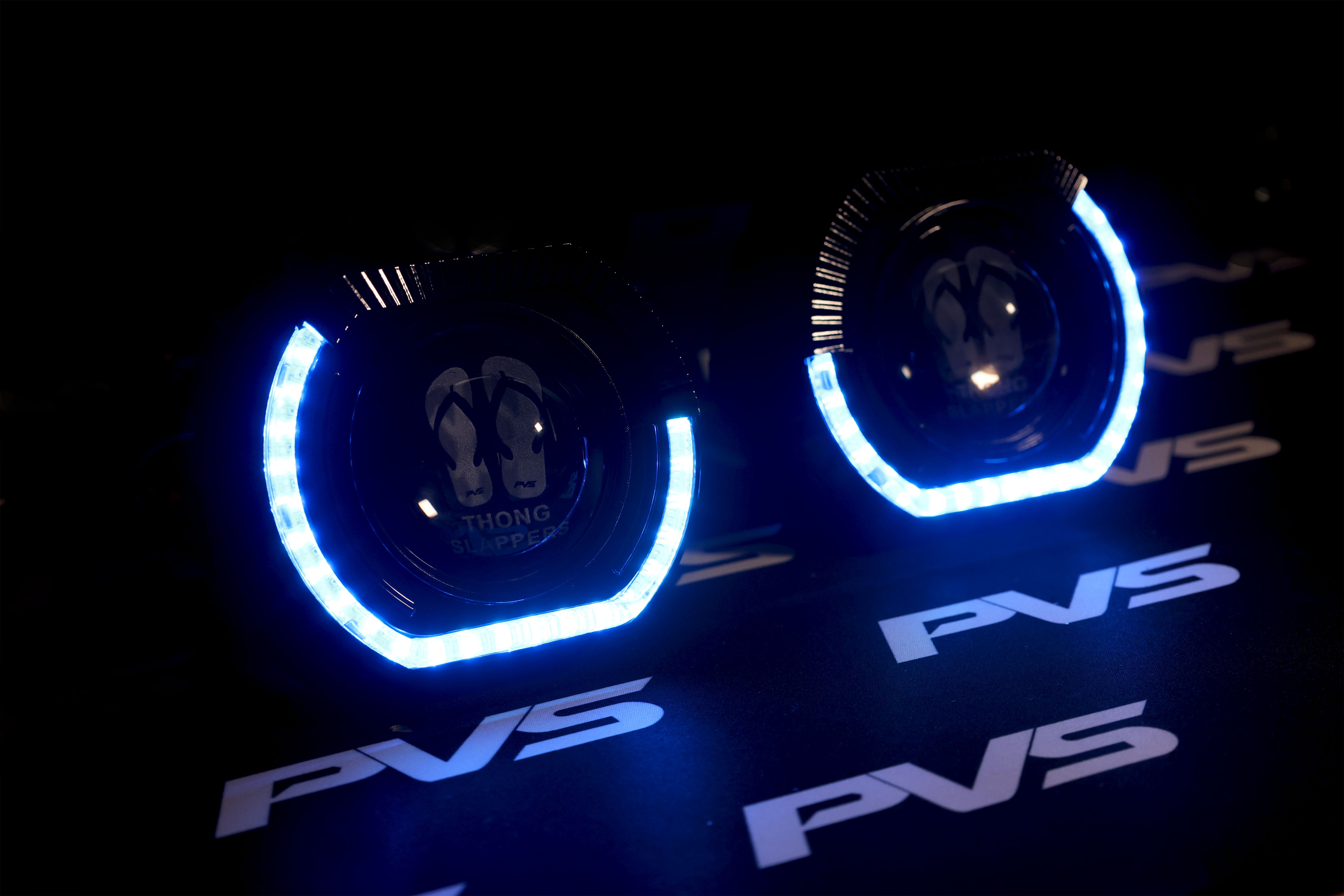

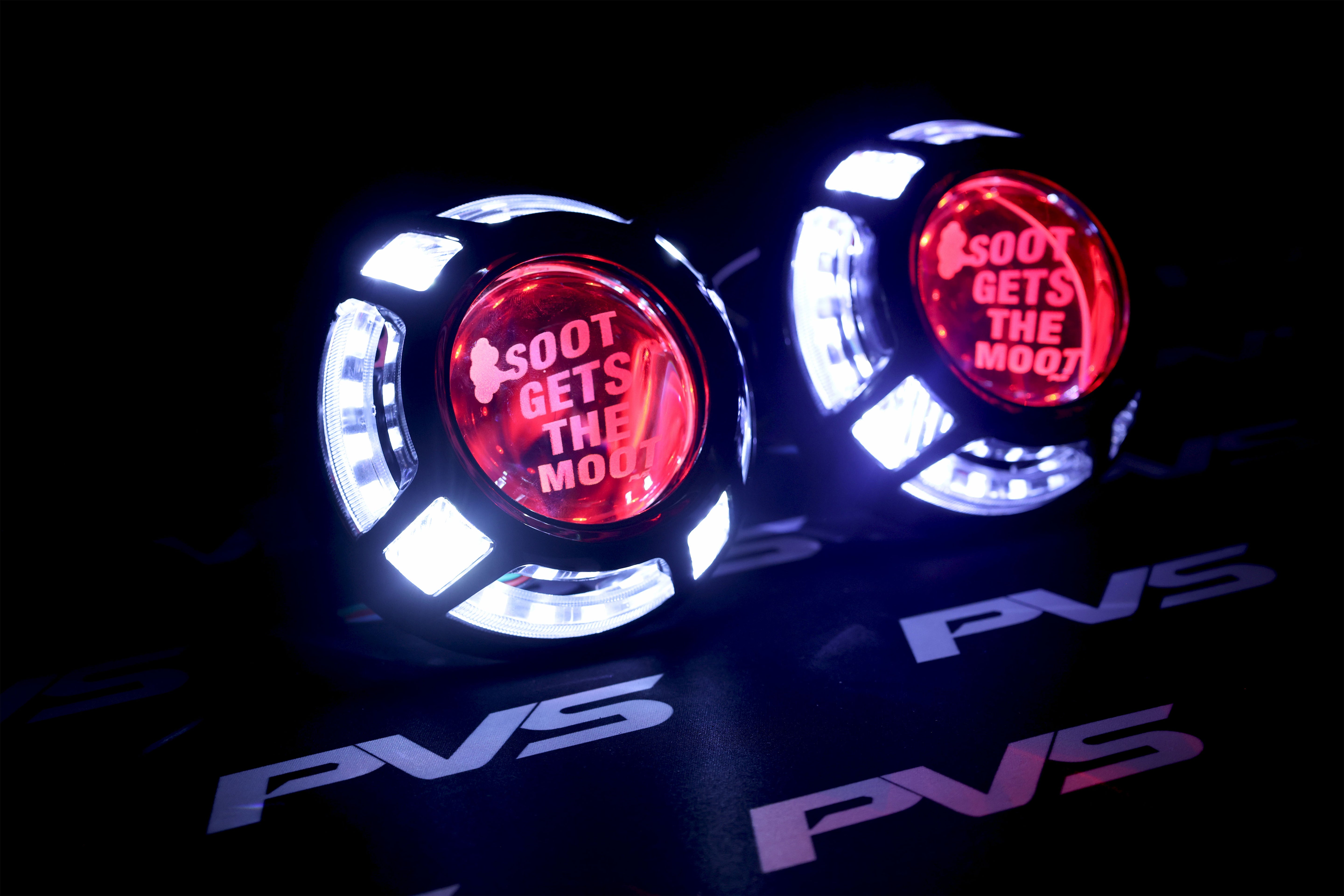

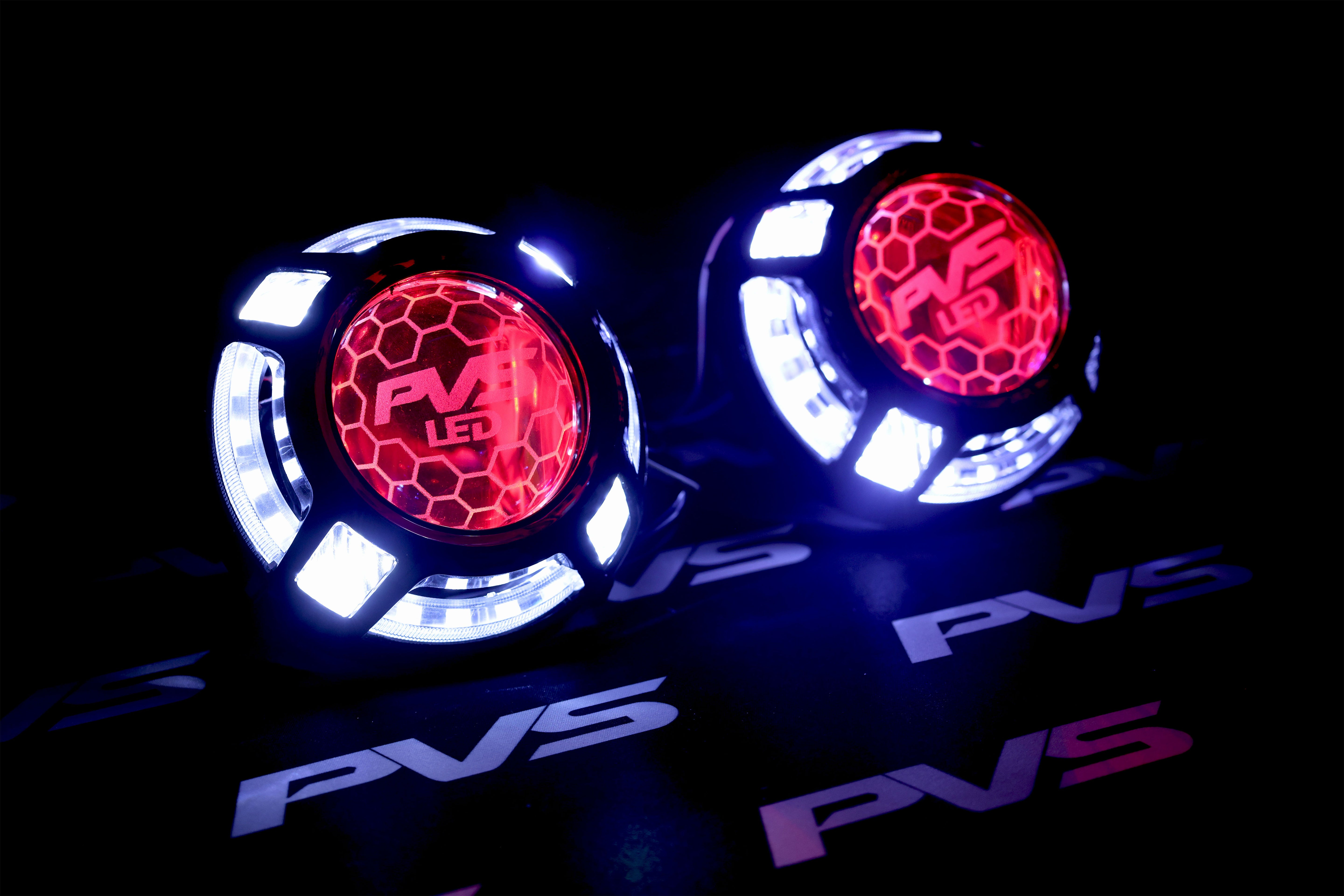

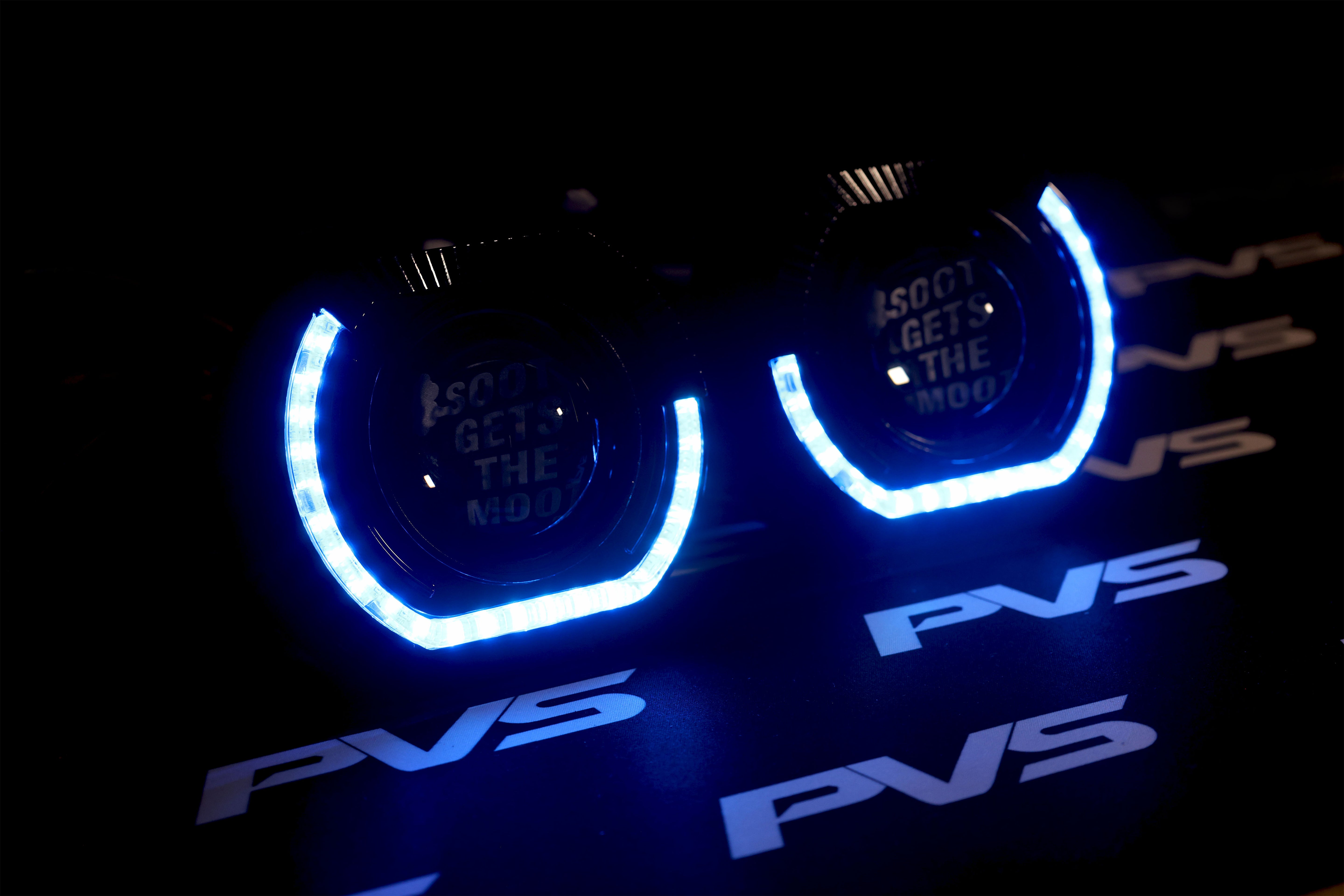

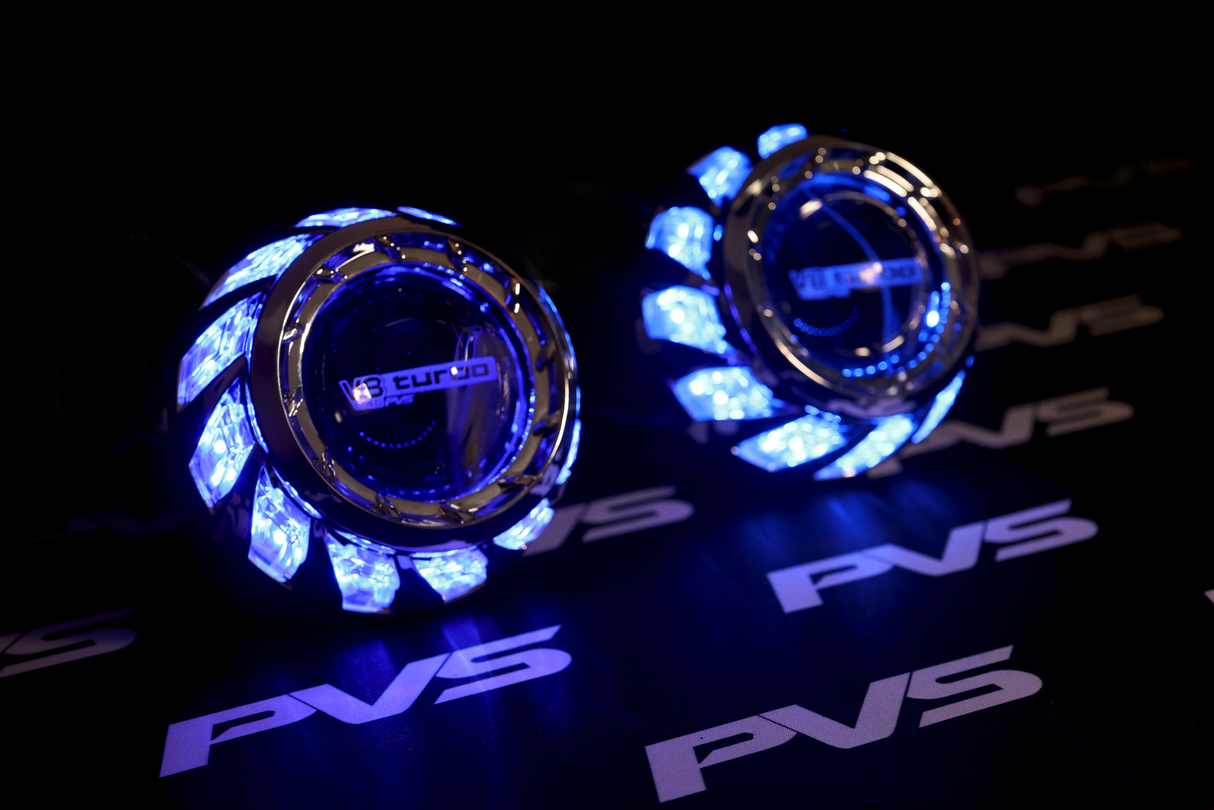

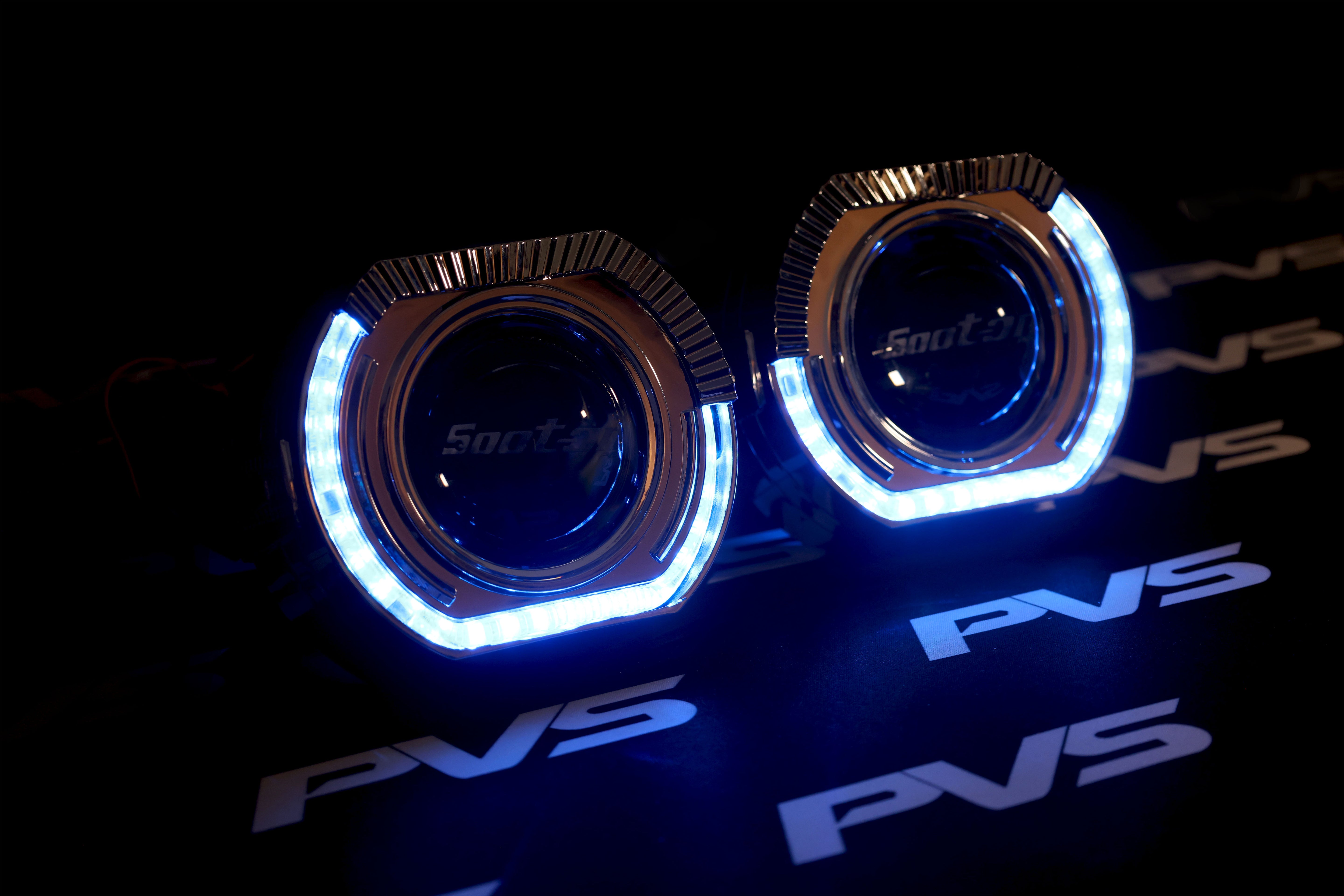

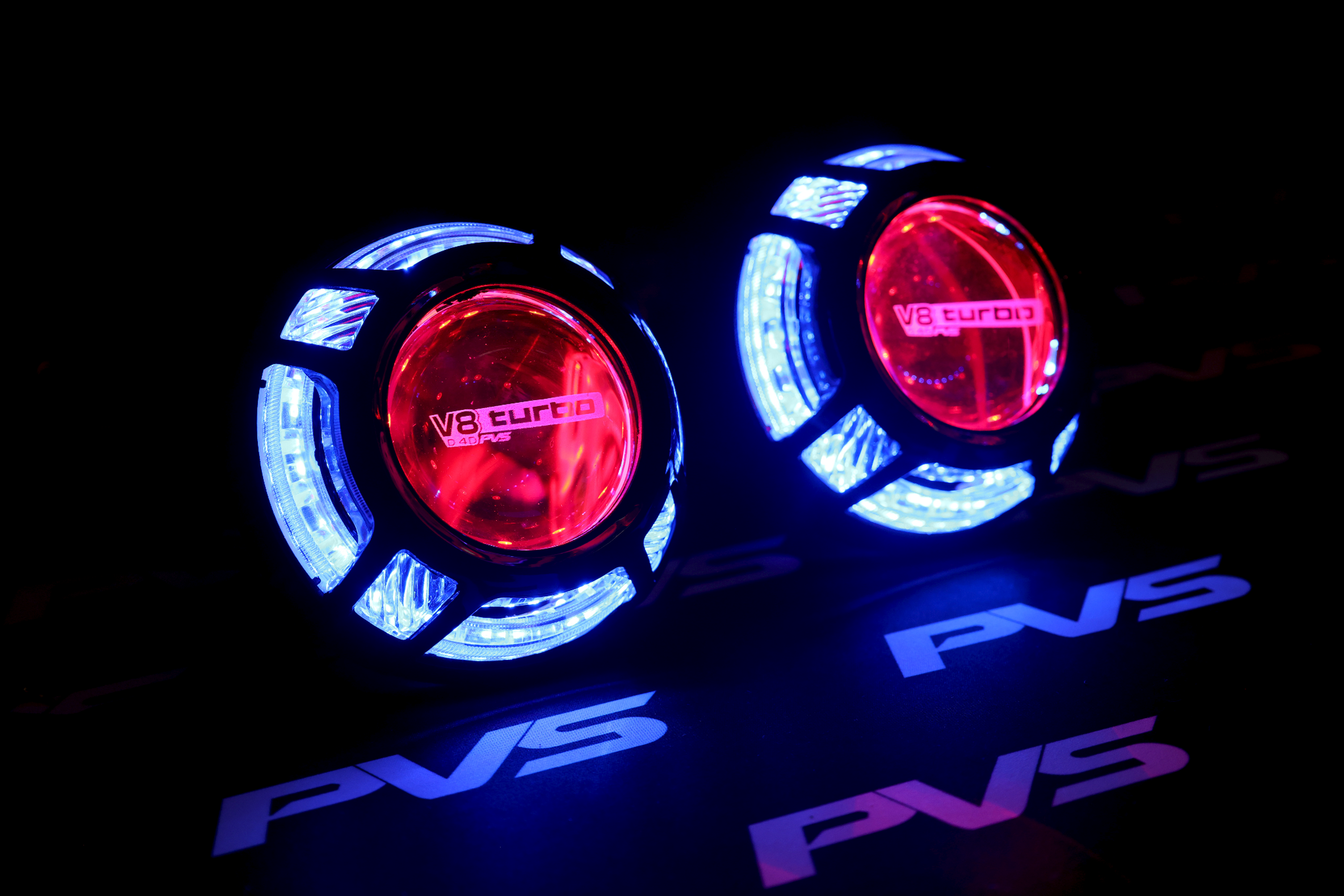

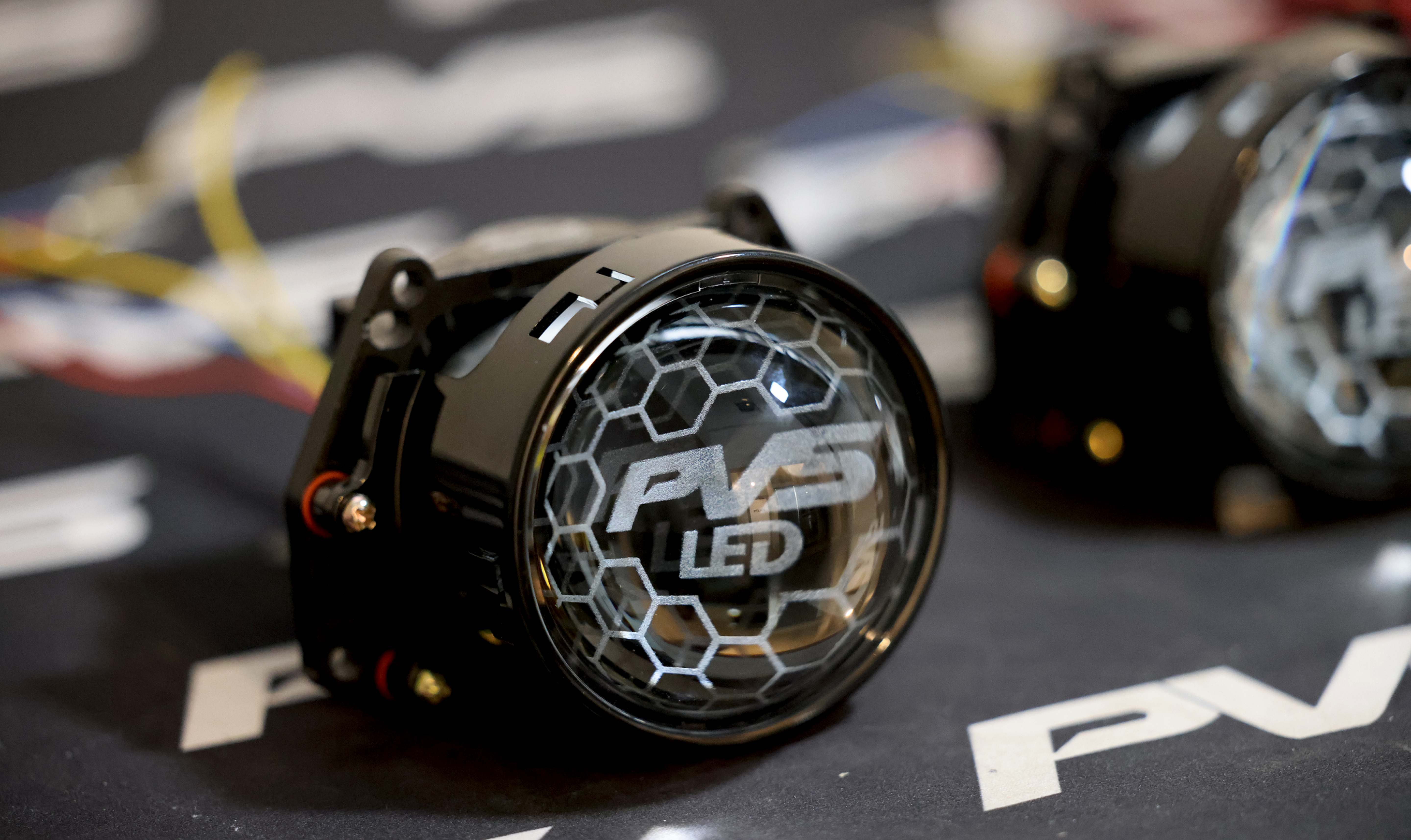

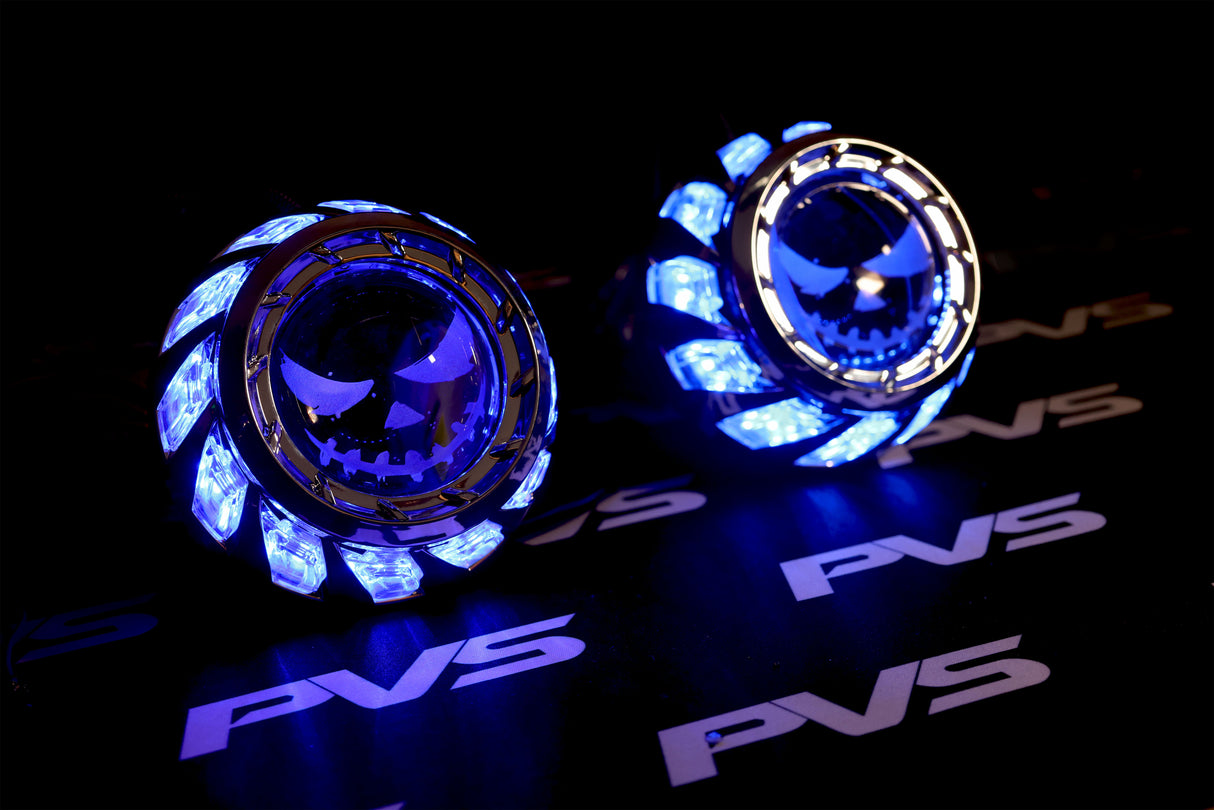

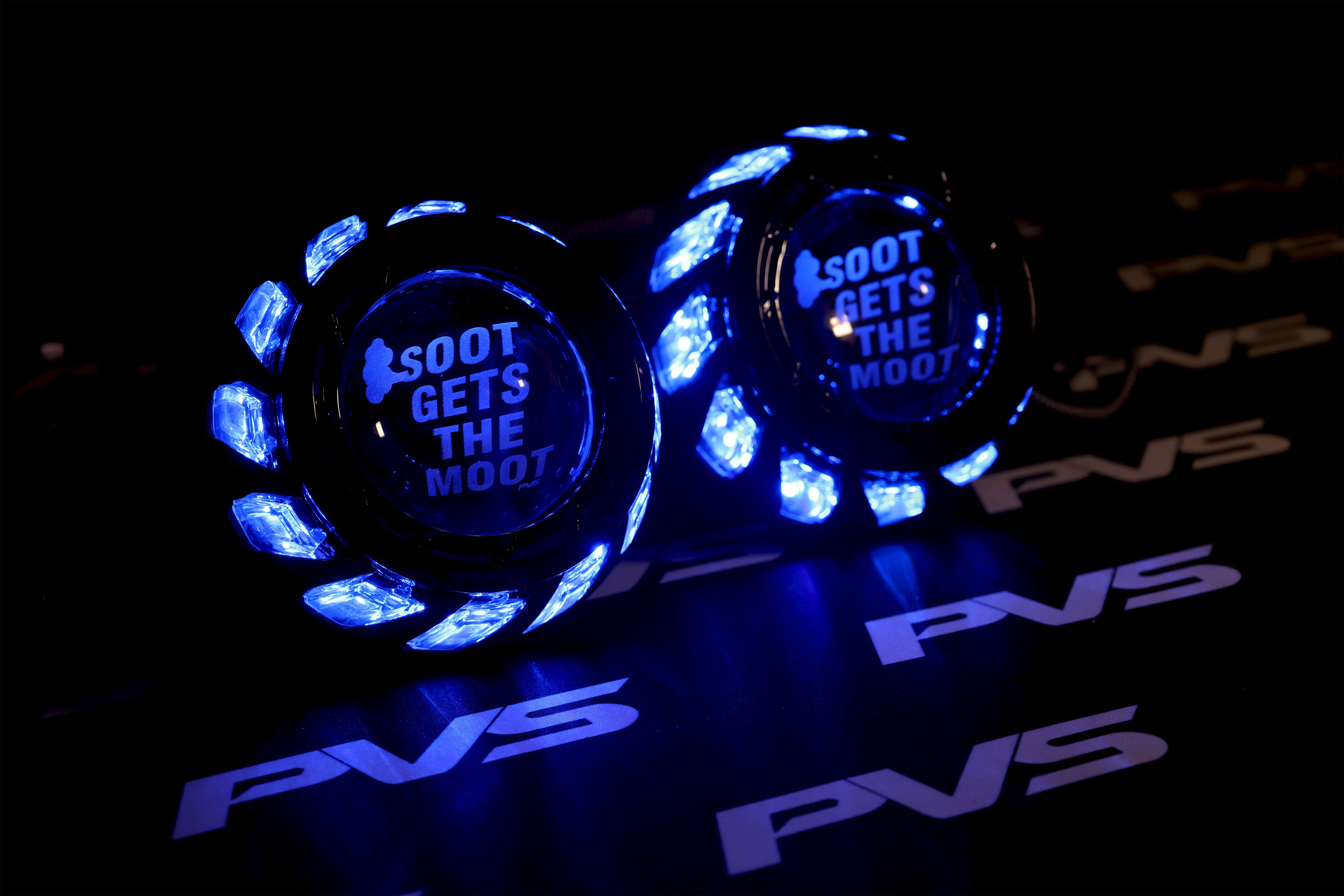

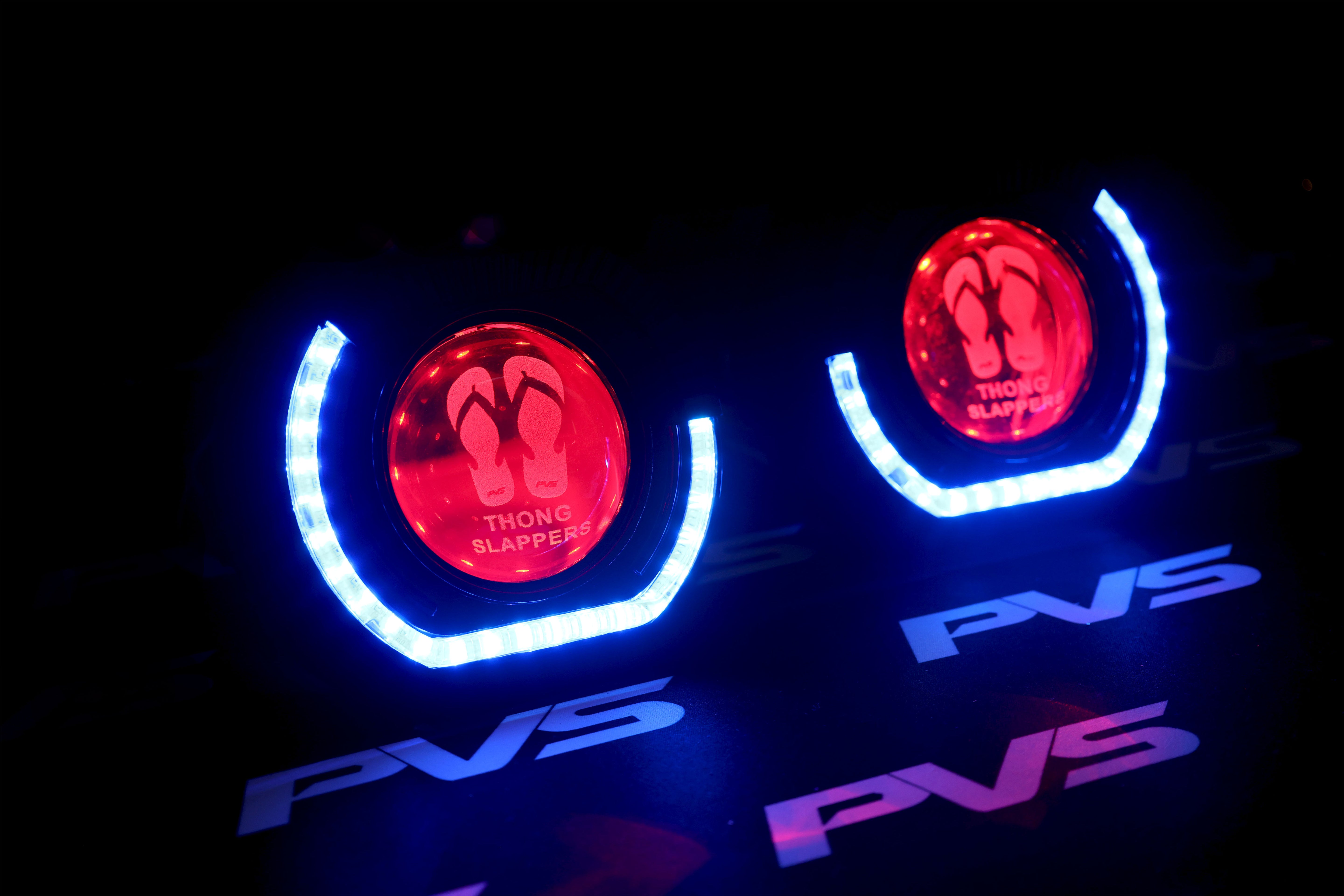

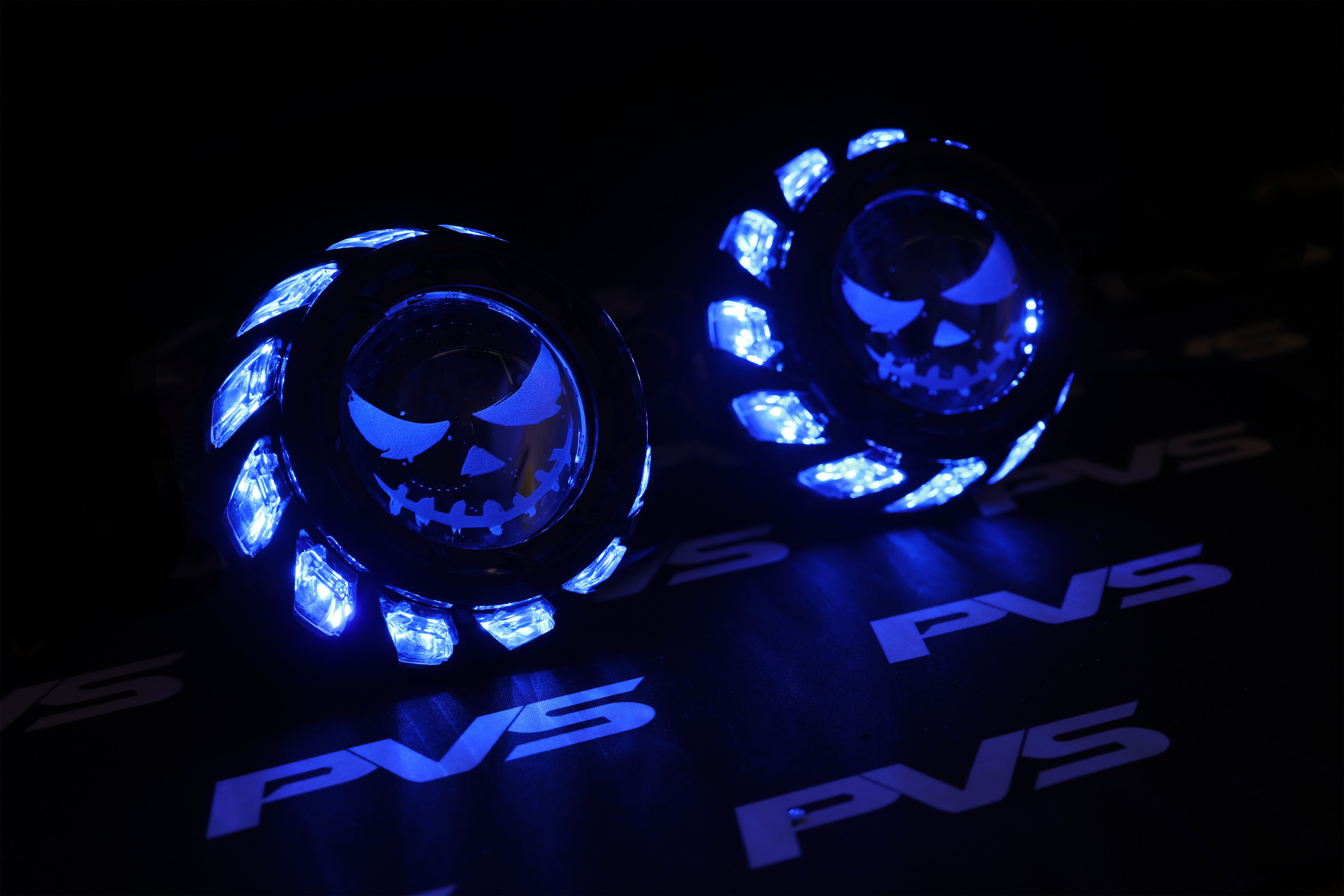

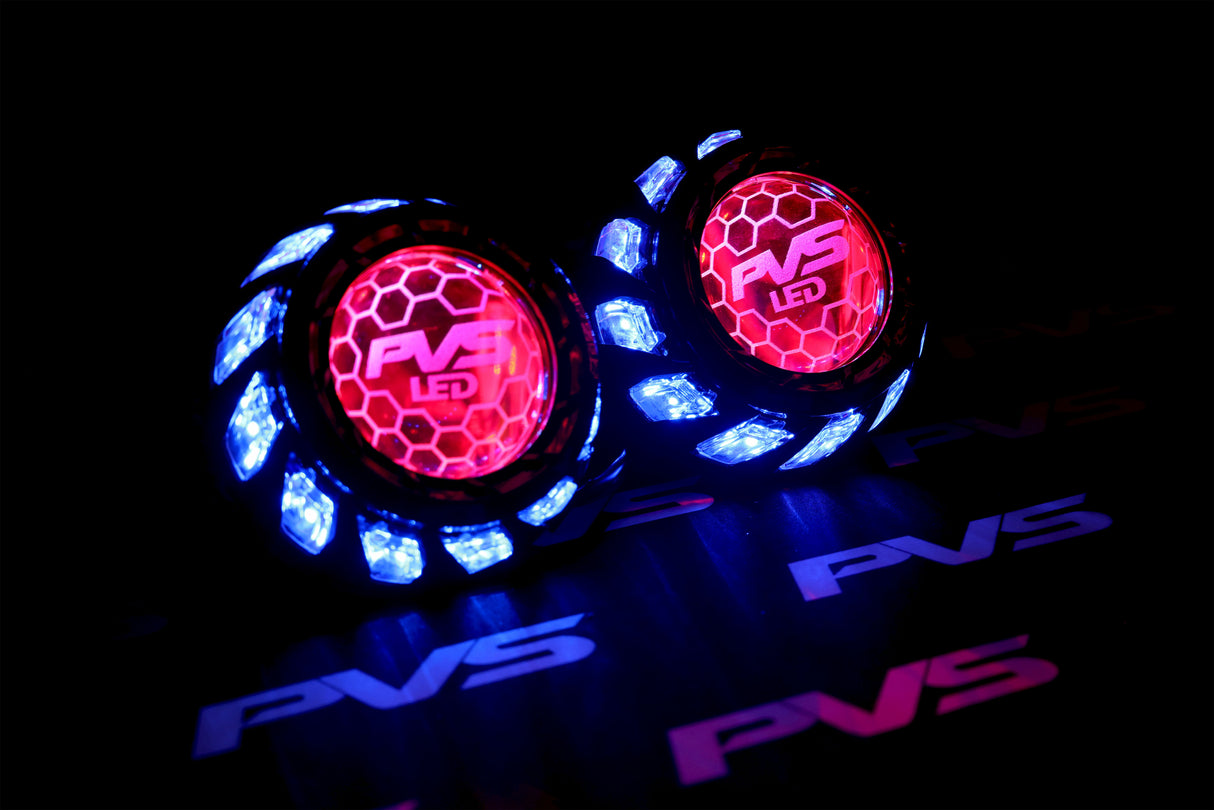

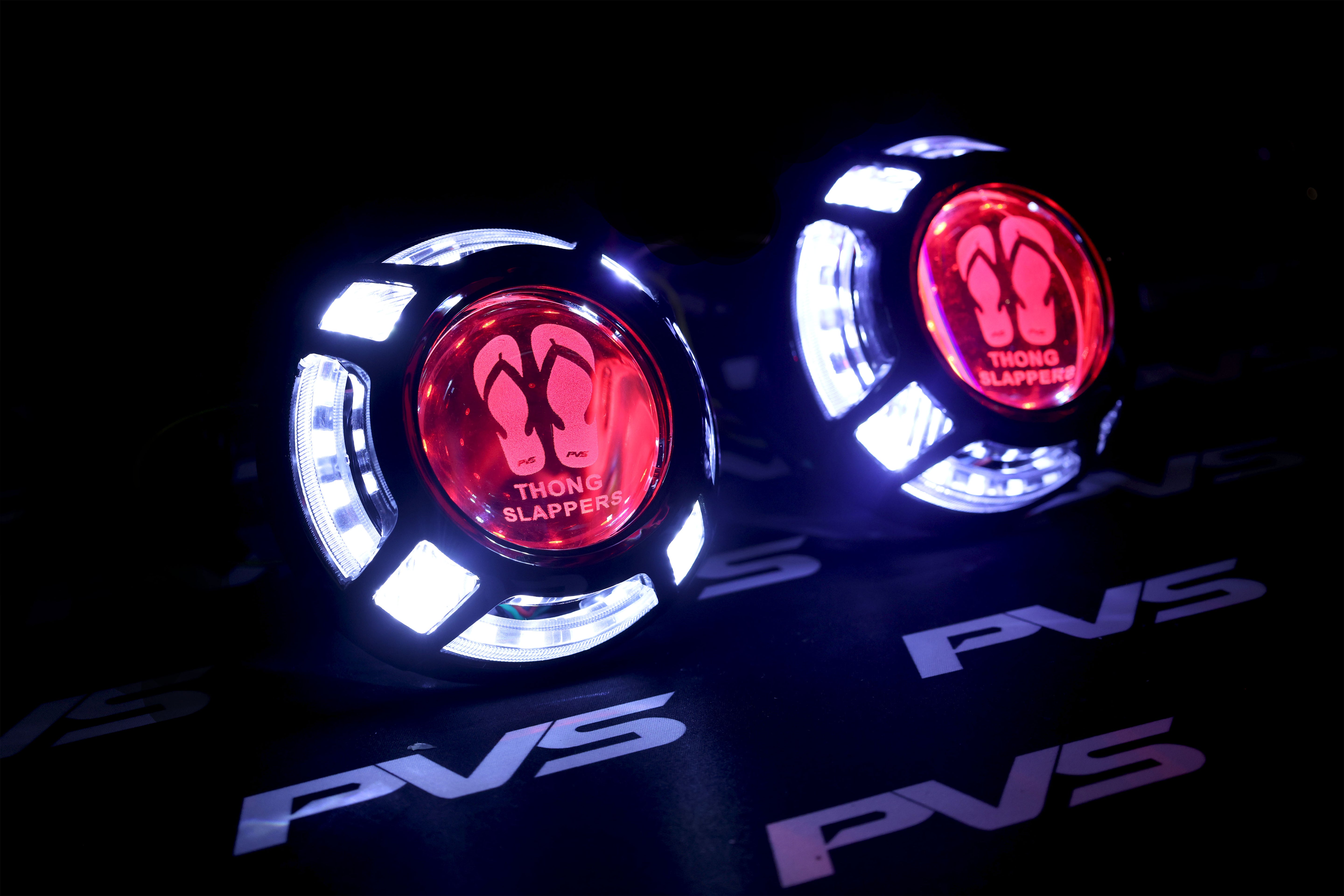

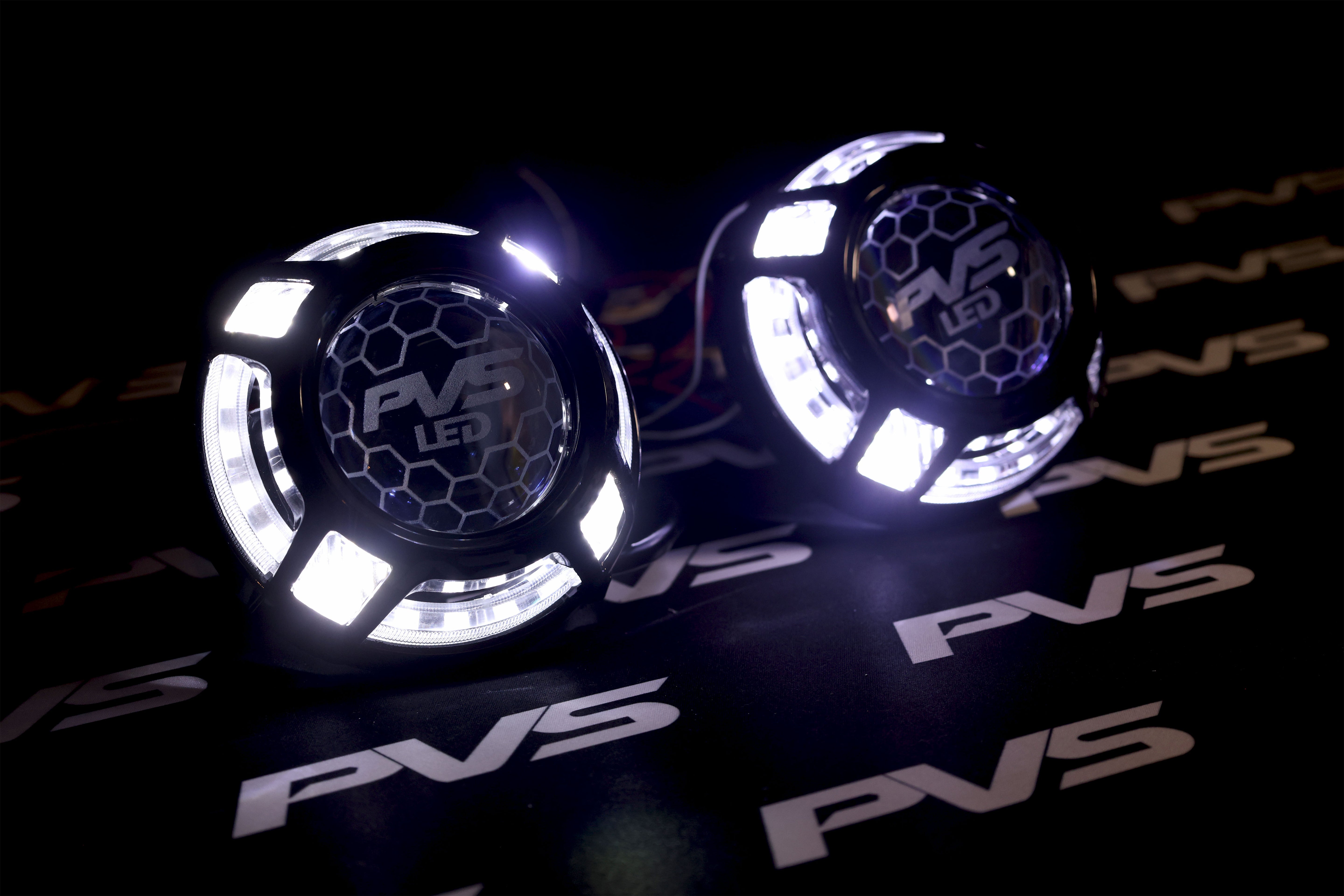

• Bi-LED Projectors (x2) – PVS-etched, H4-compatible design with integrated high and low beam functionality
• H4 Relay Harnesses (x2) – Provides stable power and protects factory wiring
• Projector Brackets, Locking Washers & Nuts (x2) – Secures your projectors inside the headlight housing

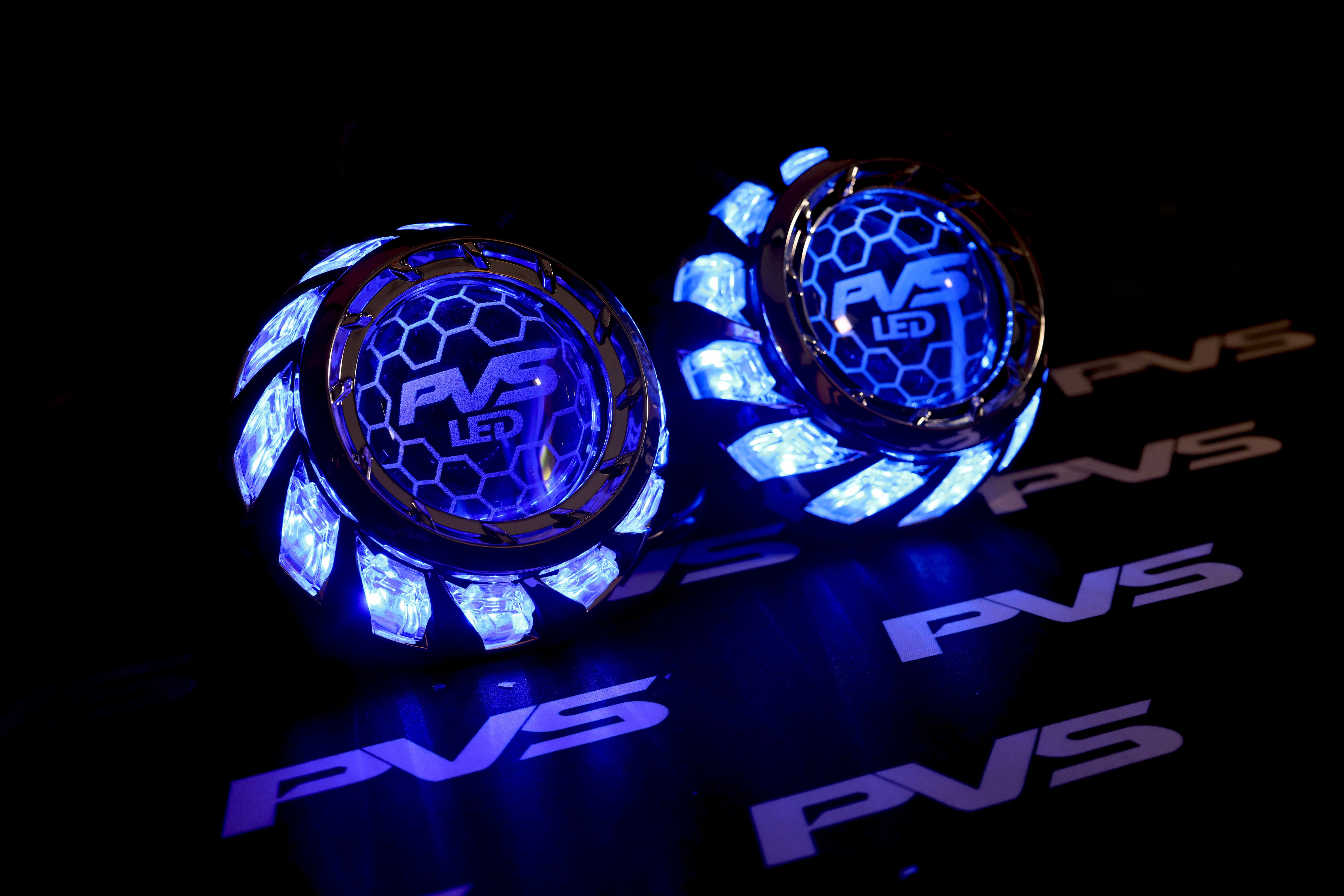

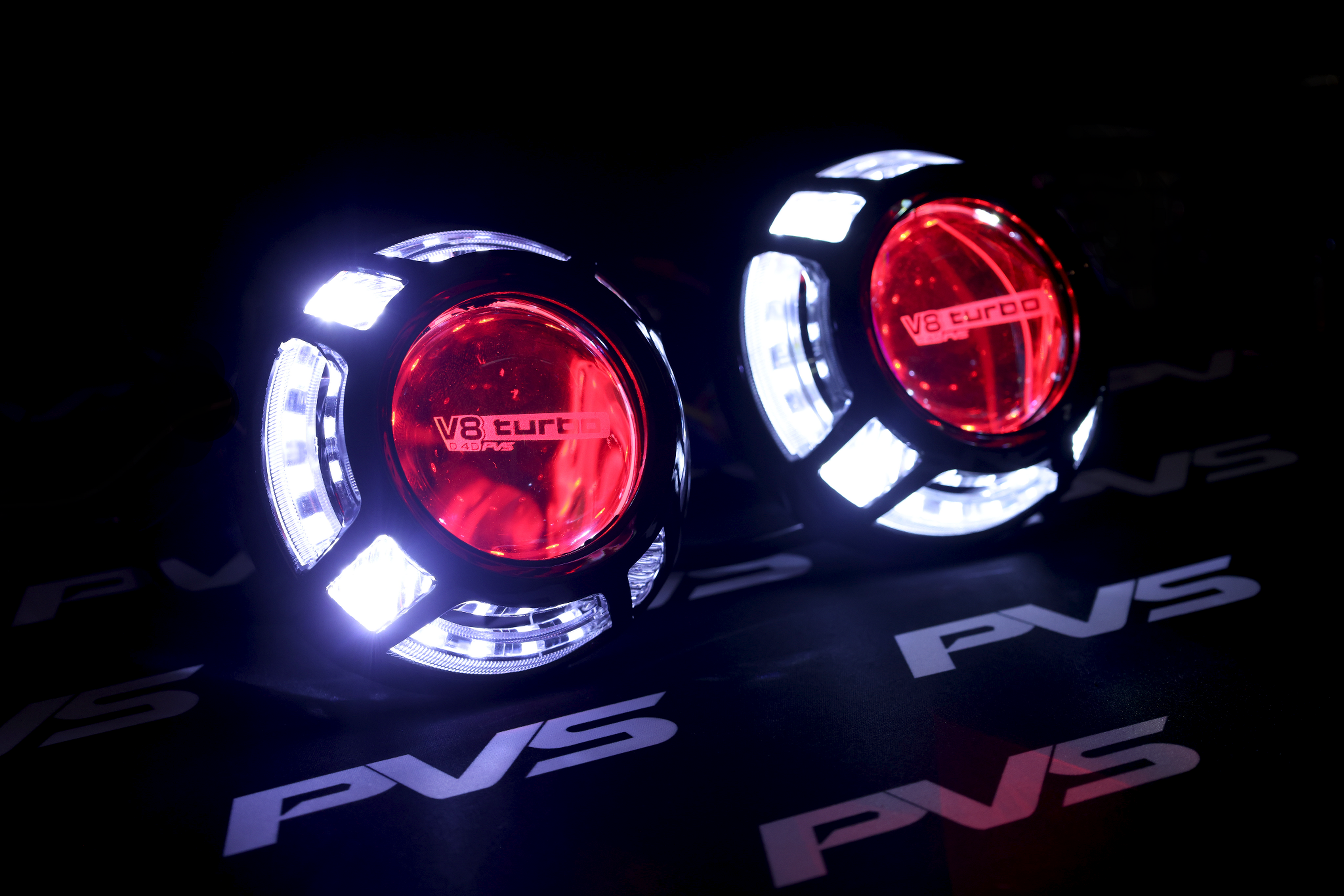

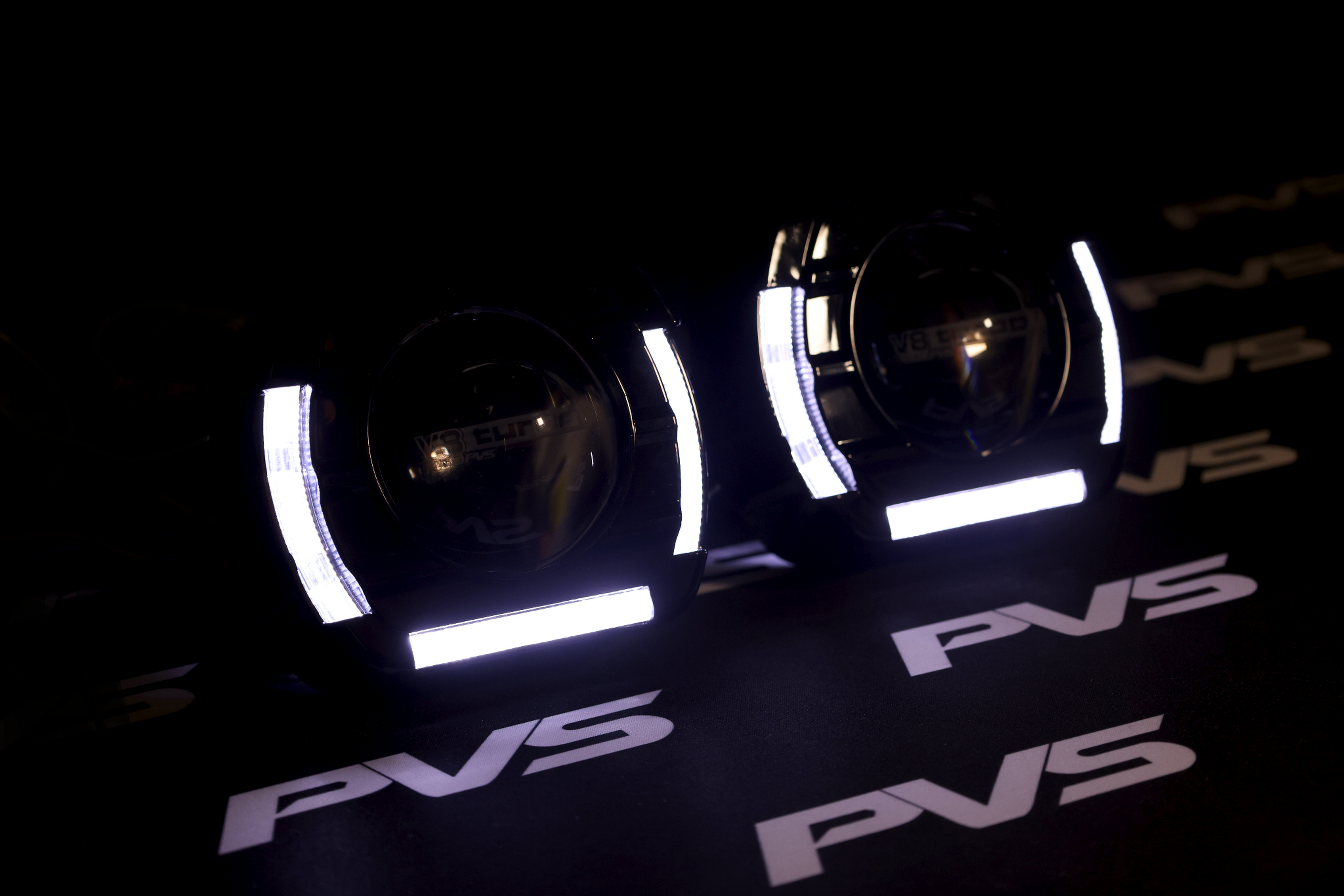

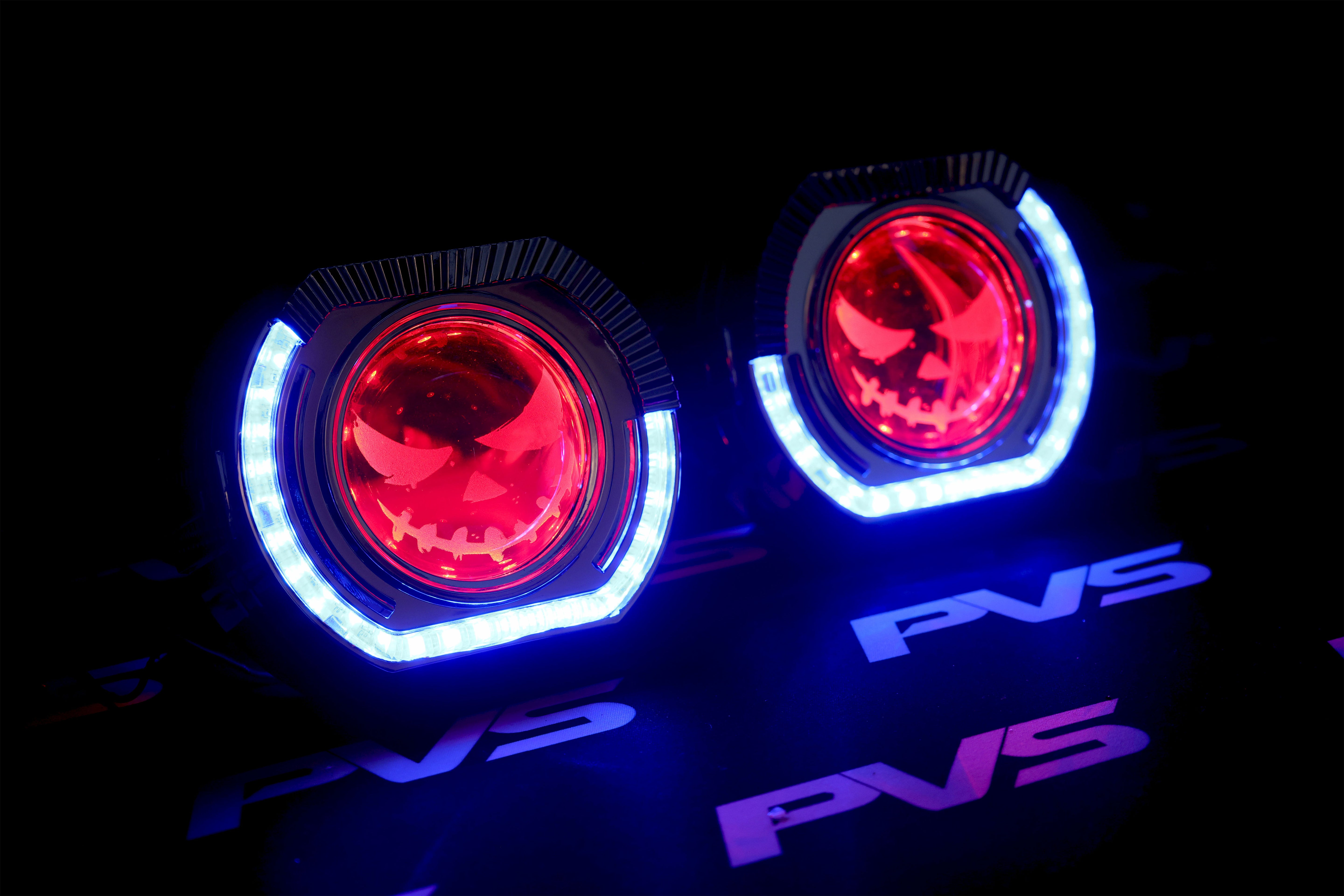

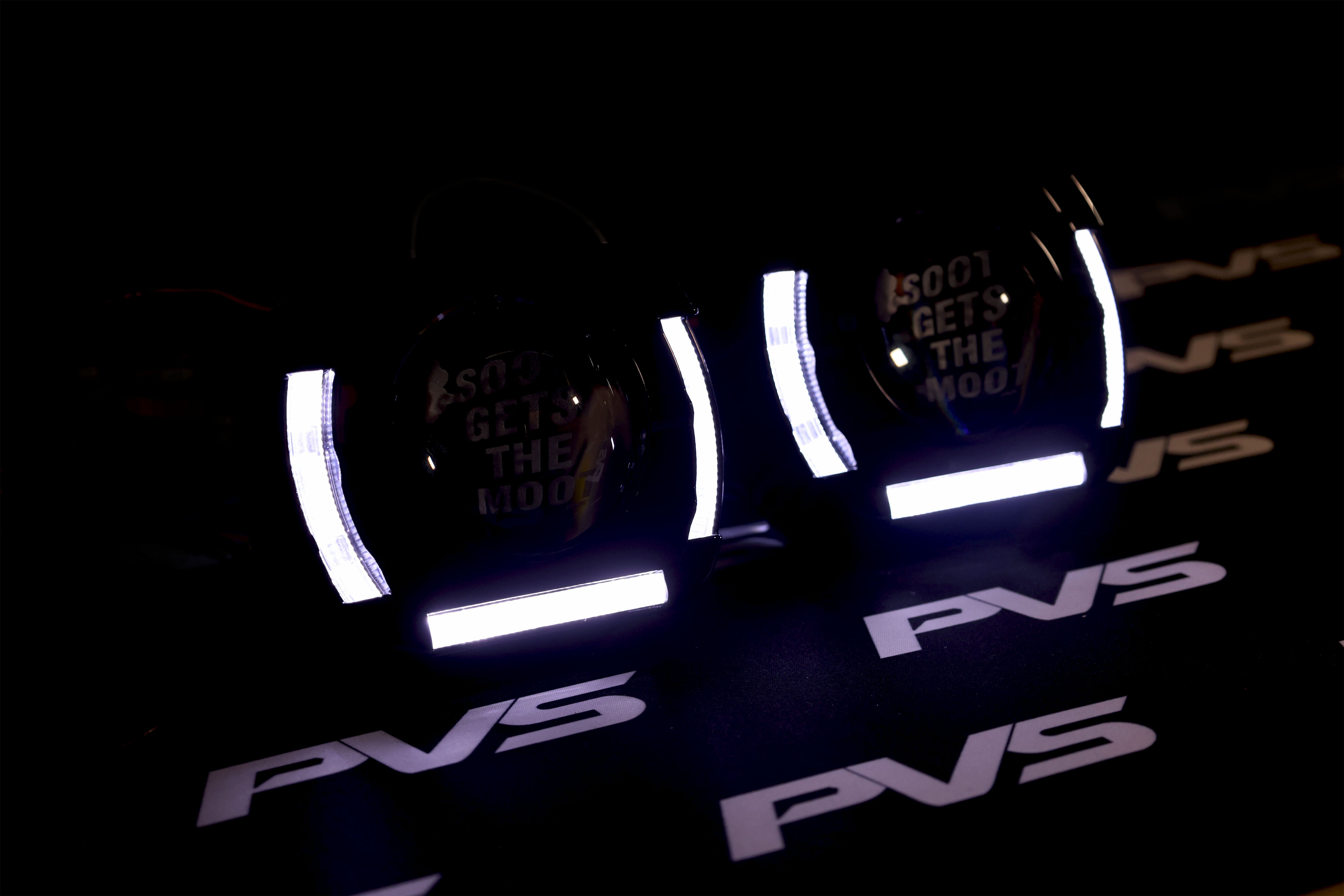

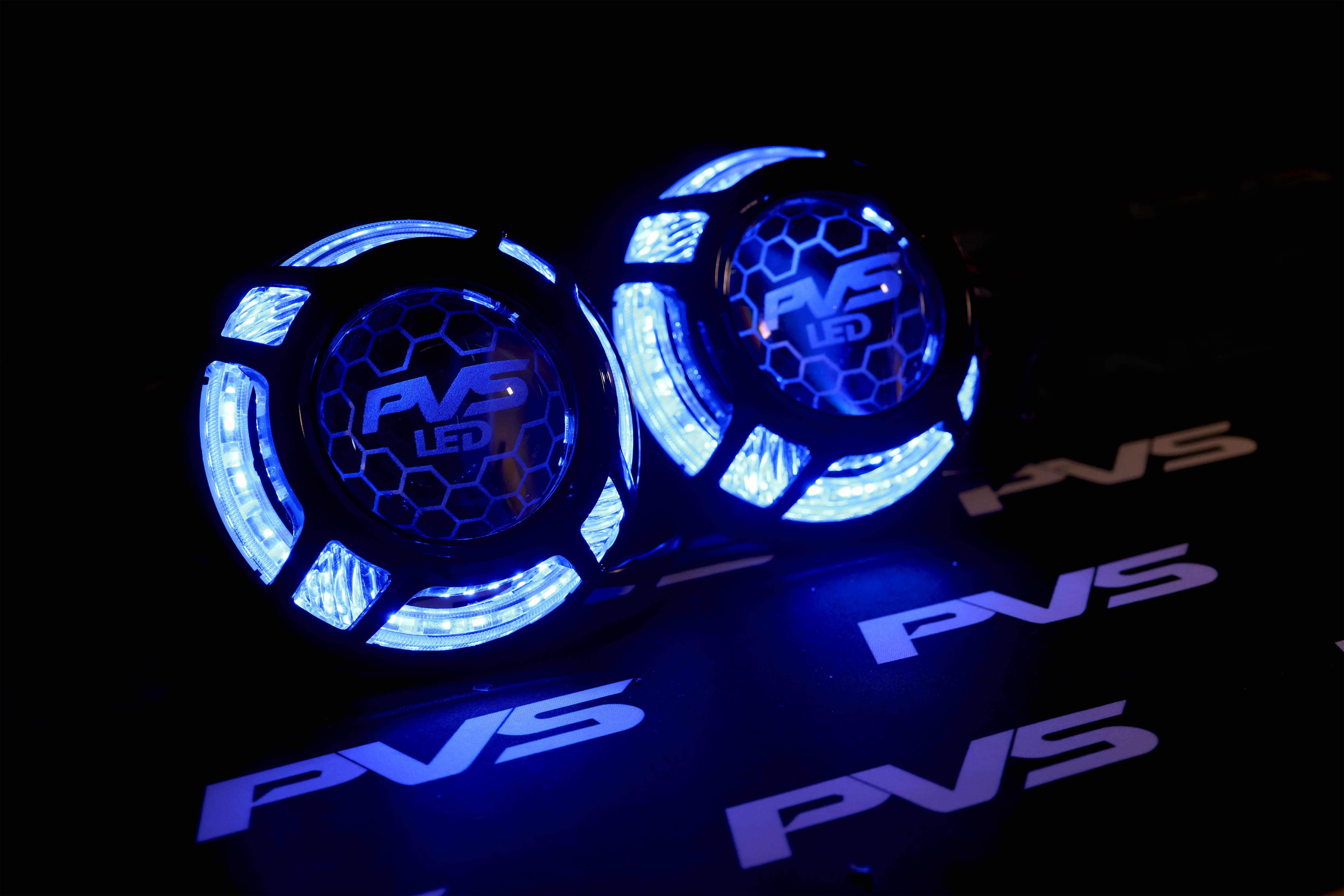

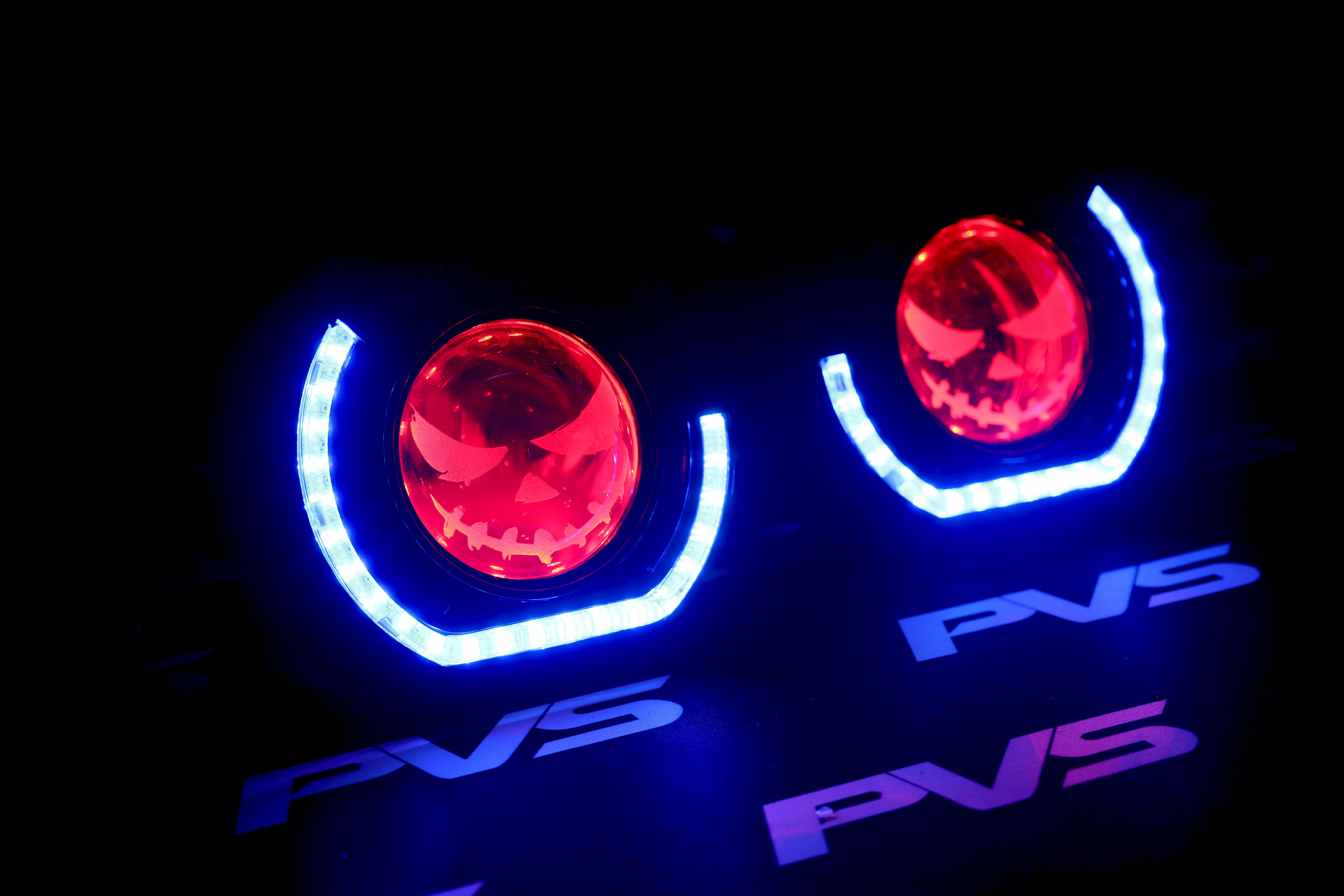

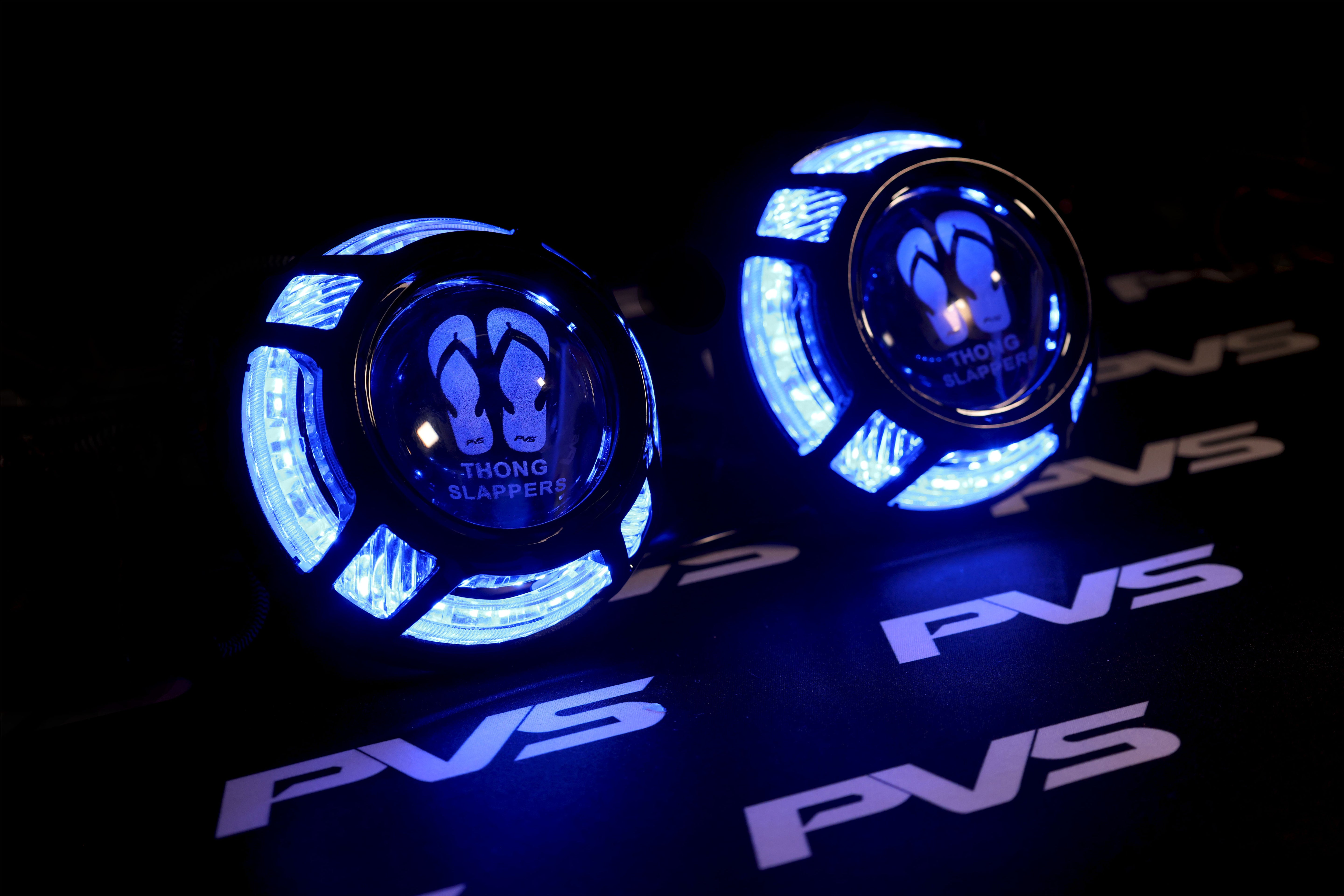

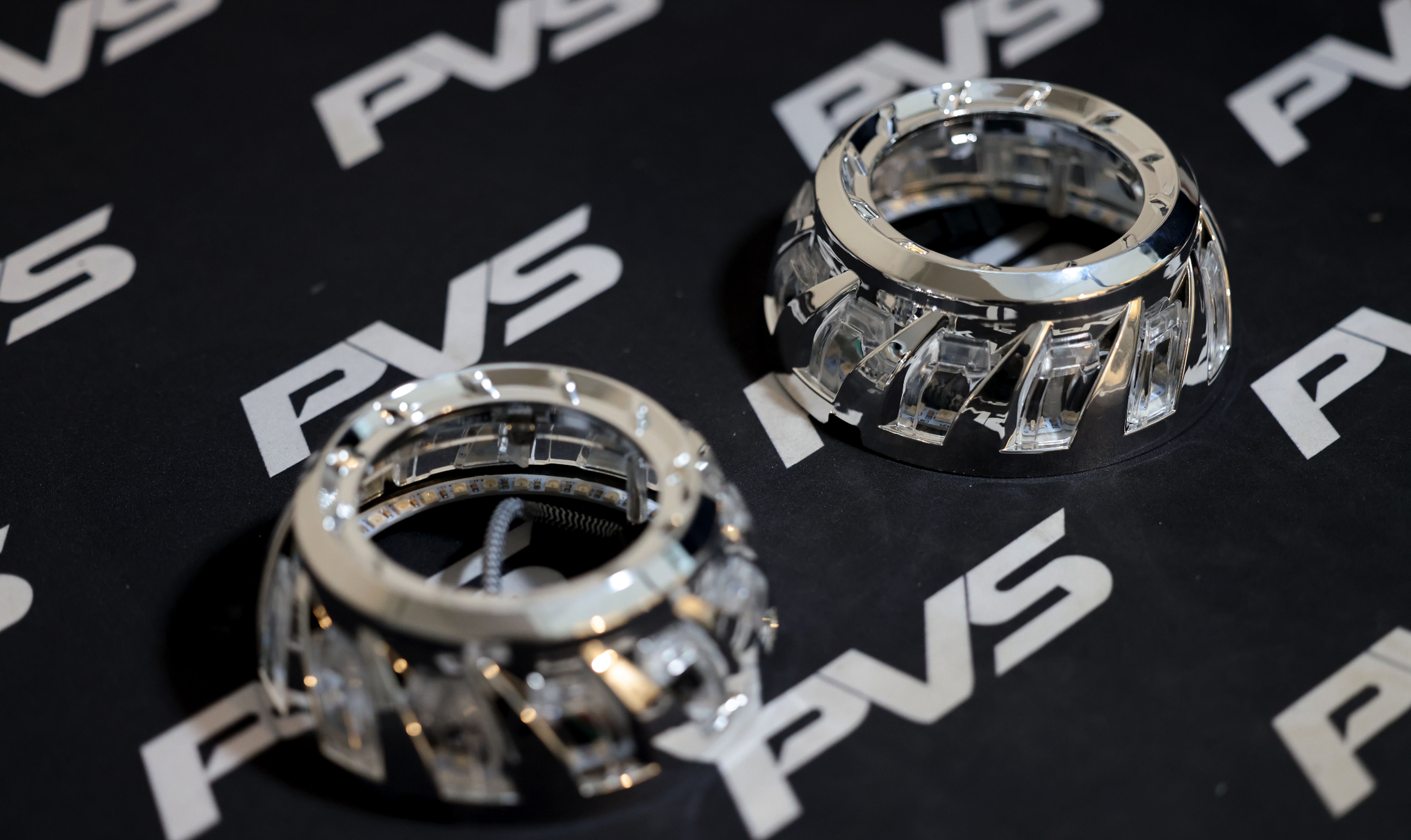

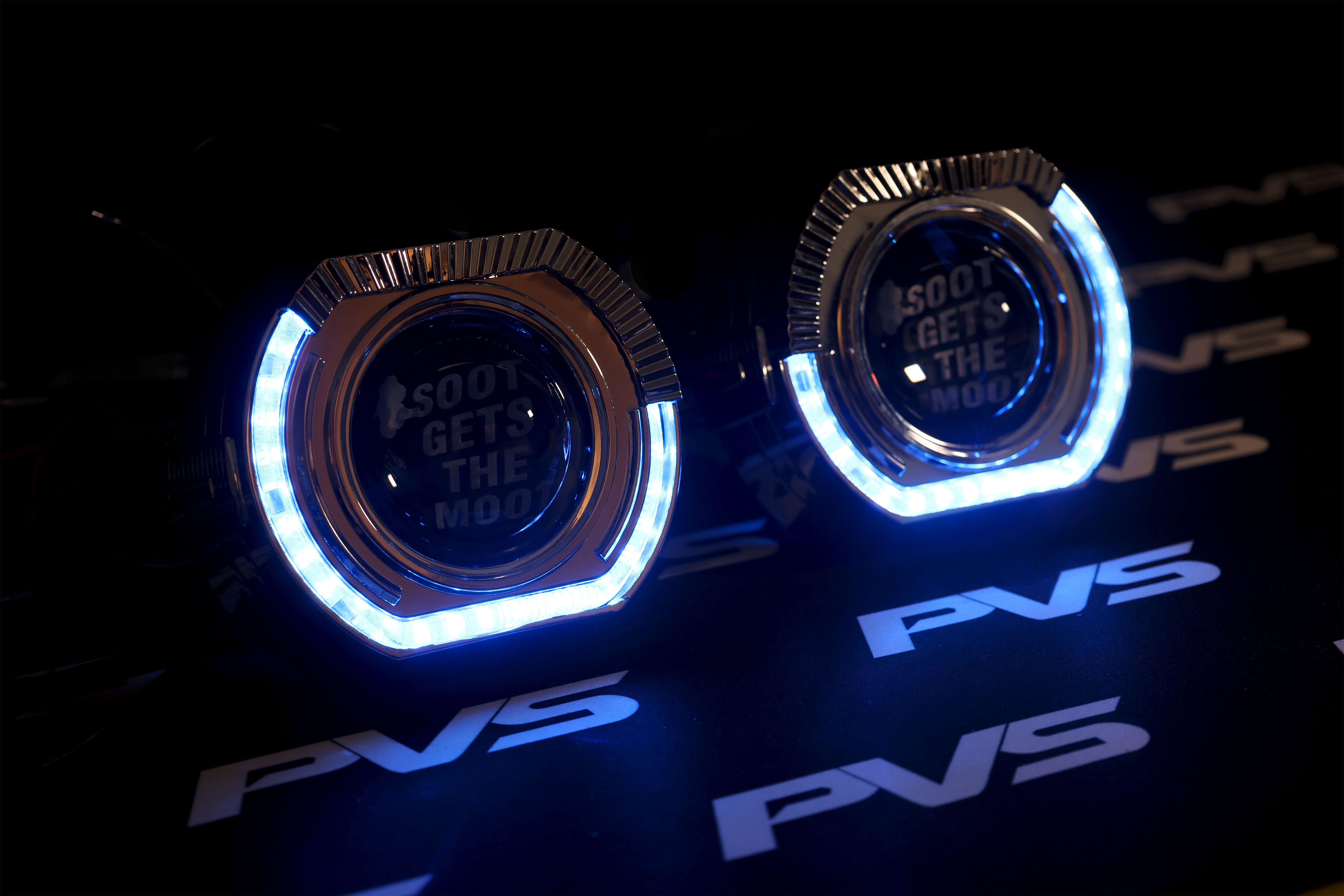

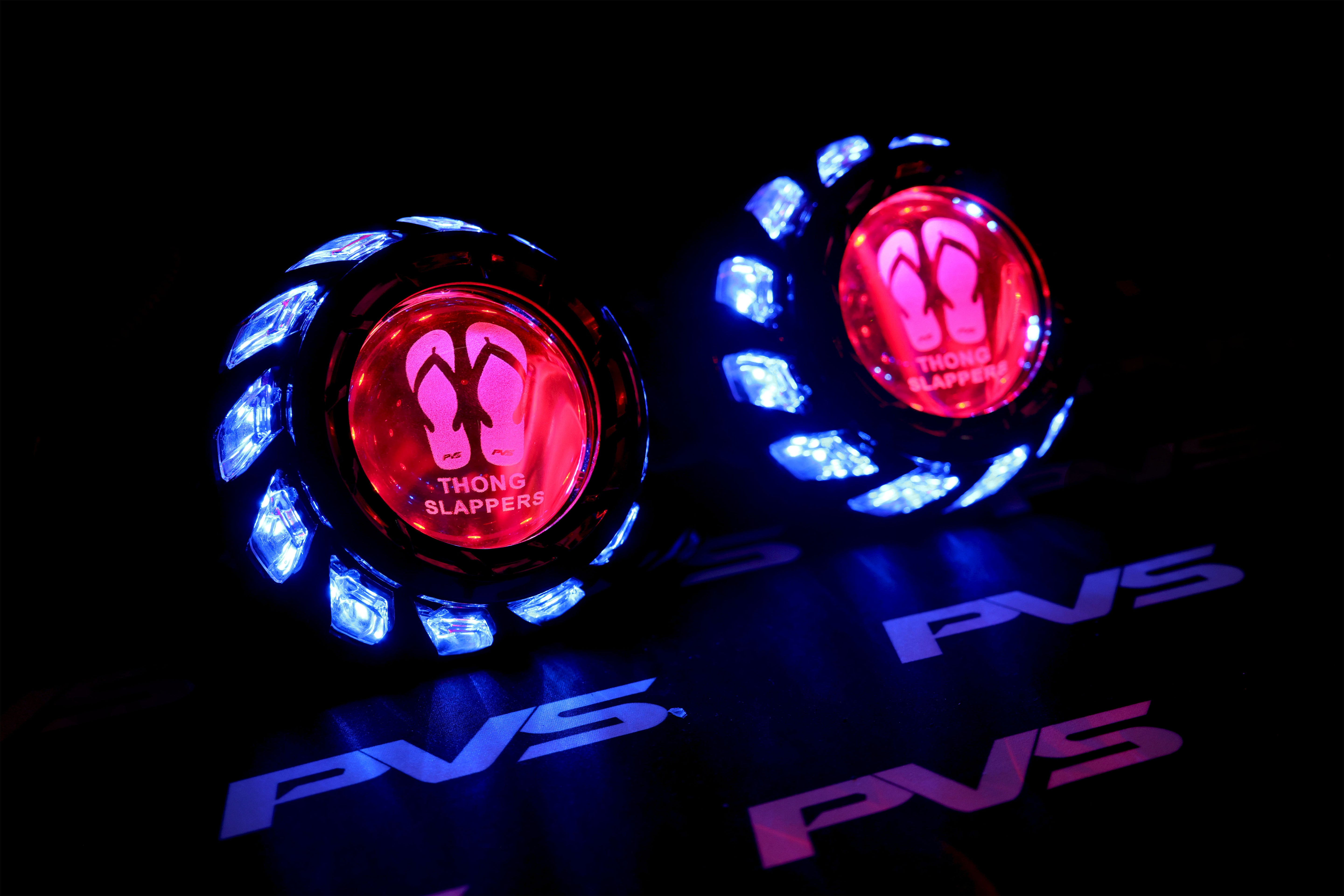

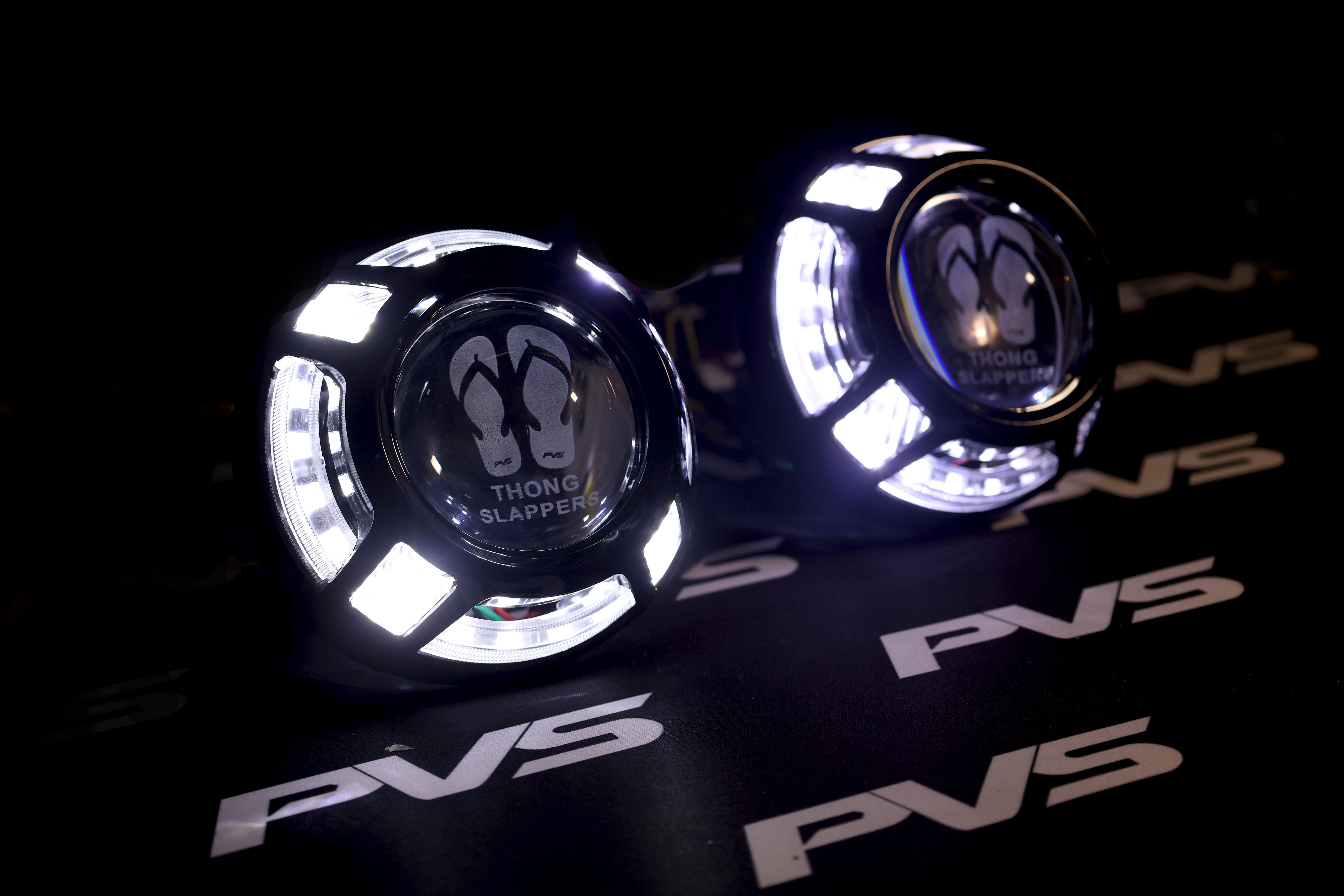

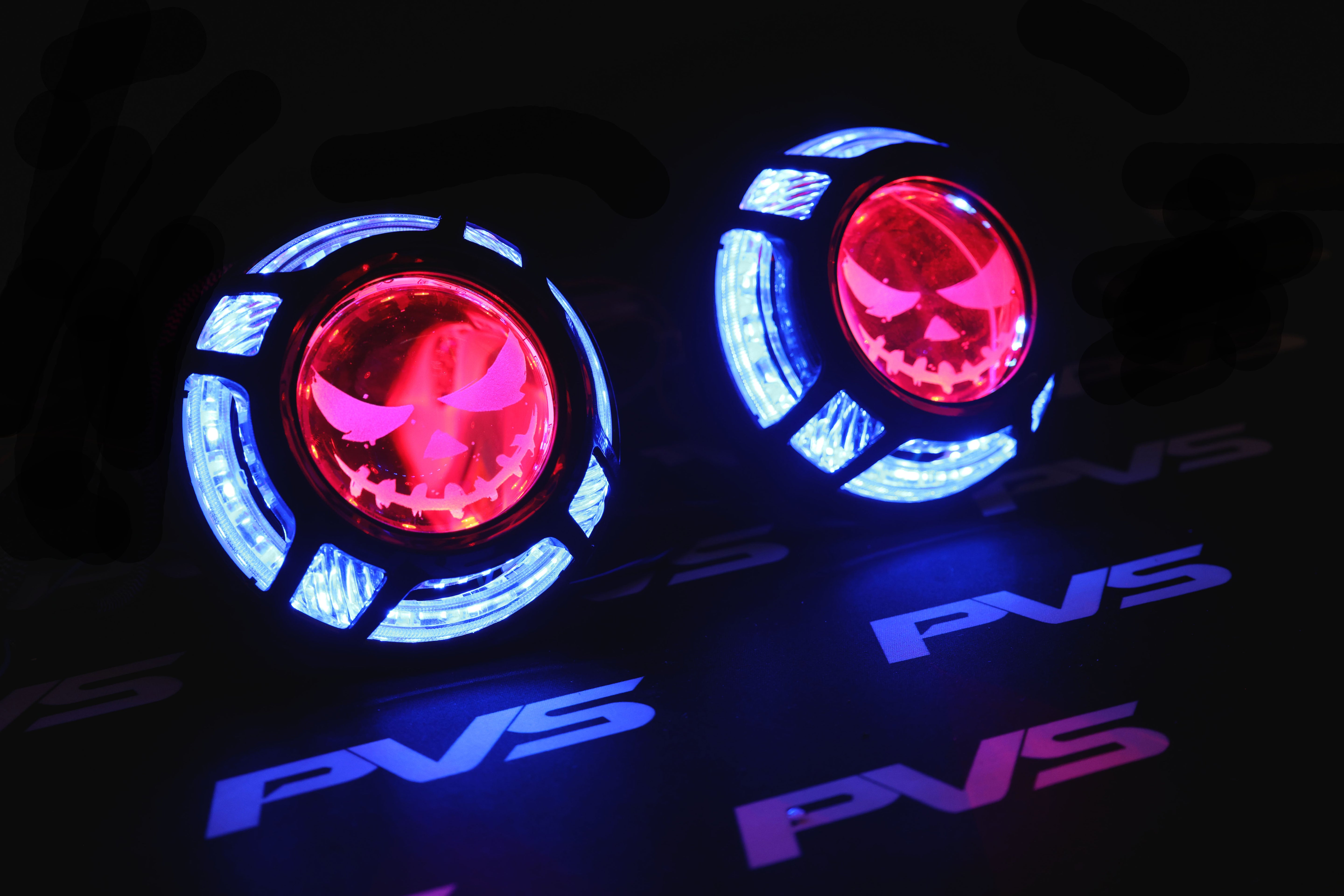

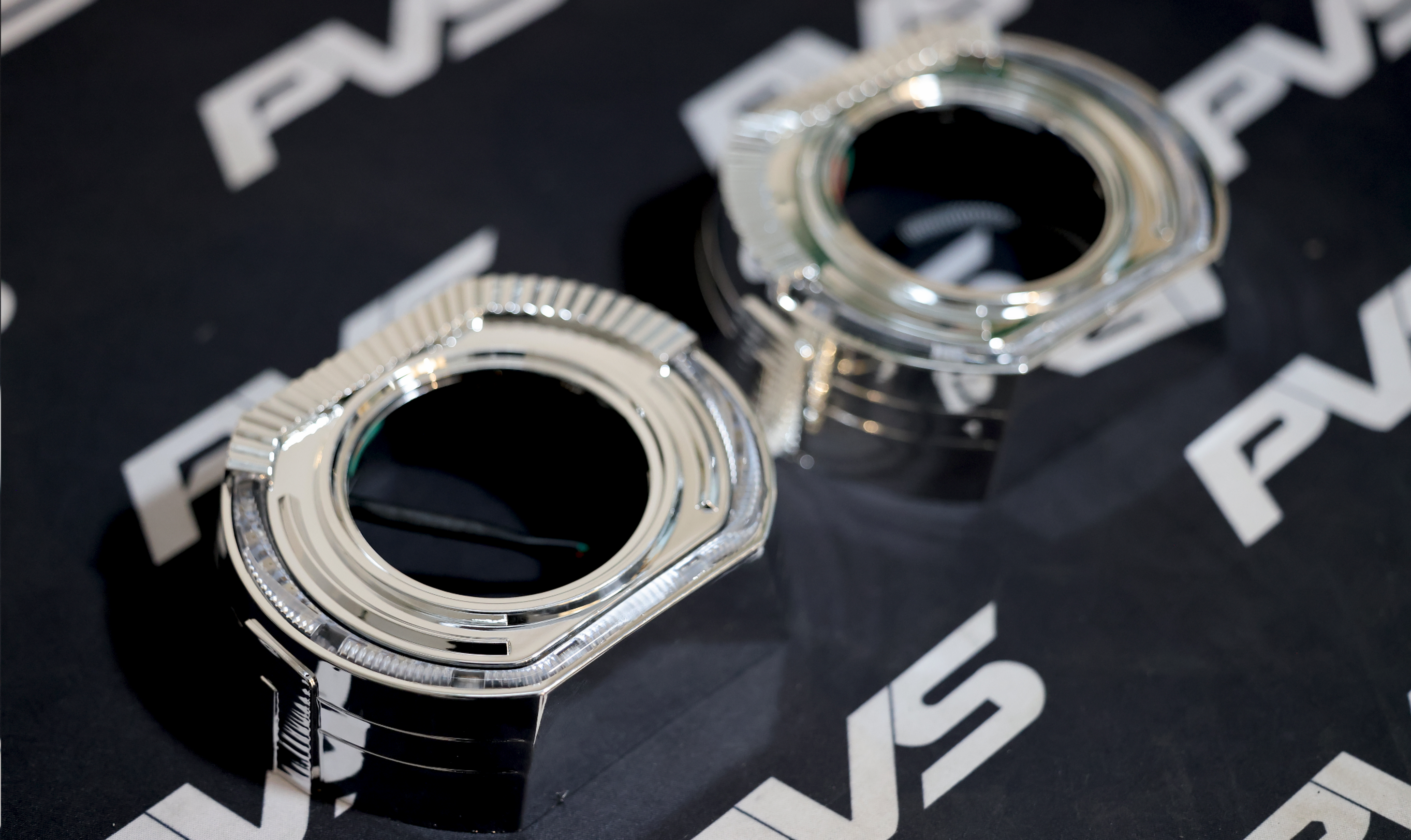

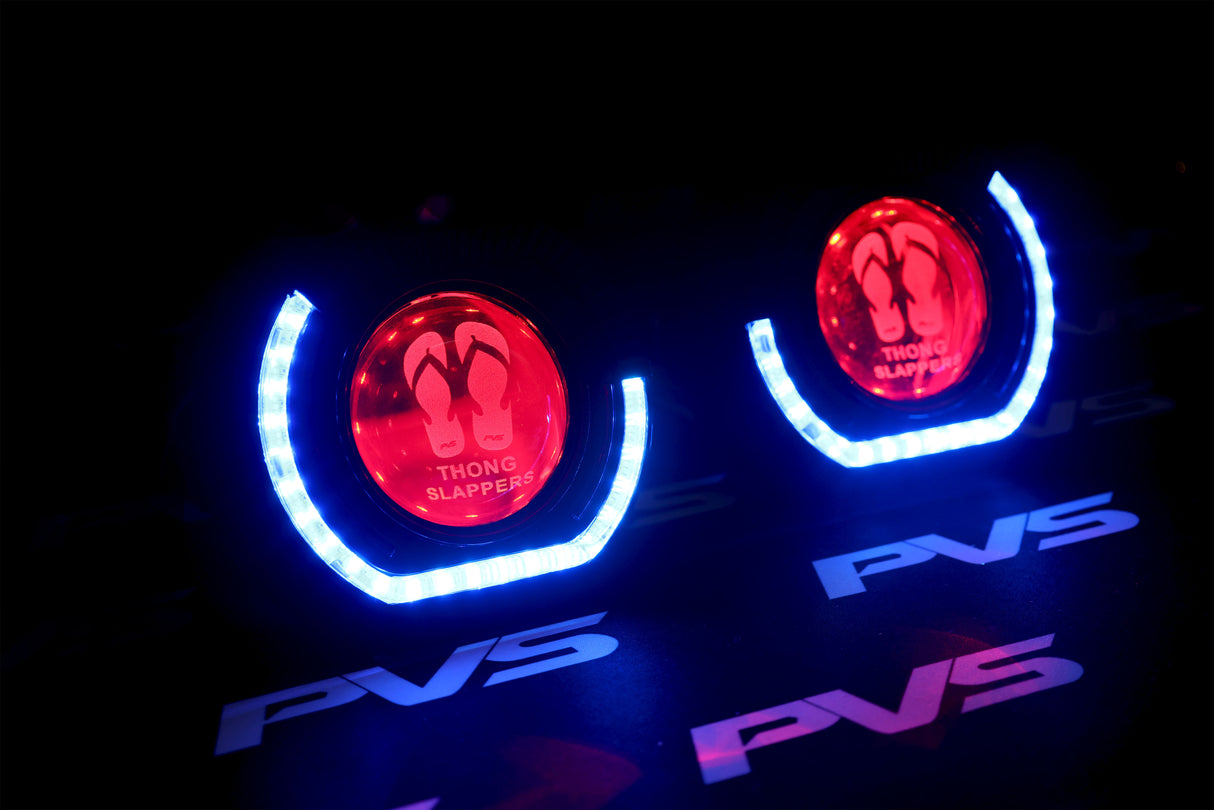

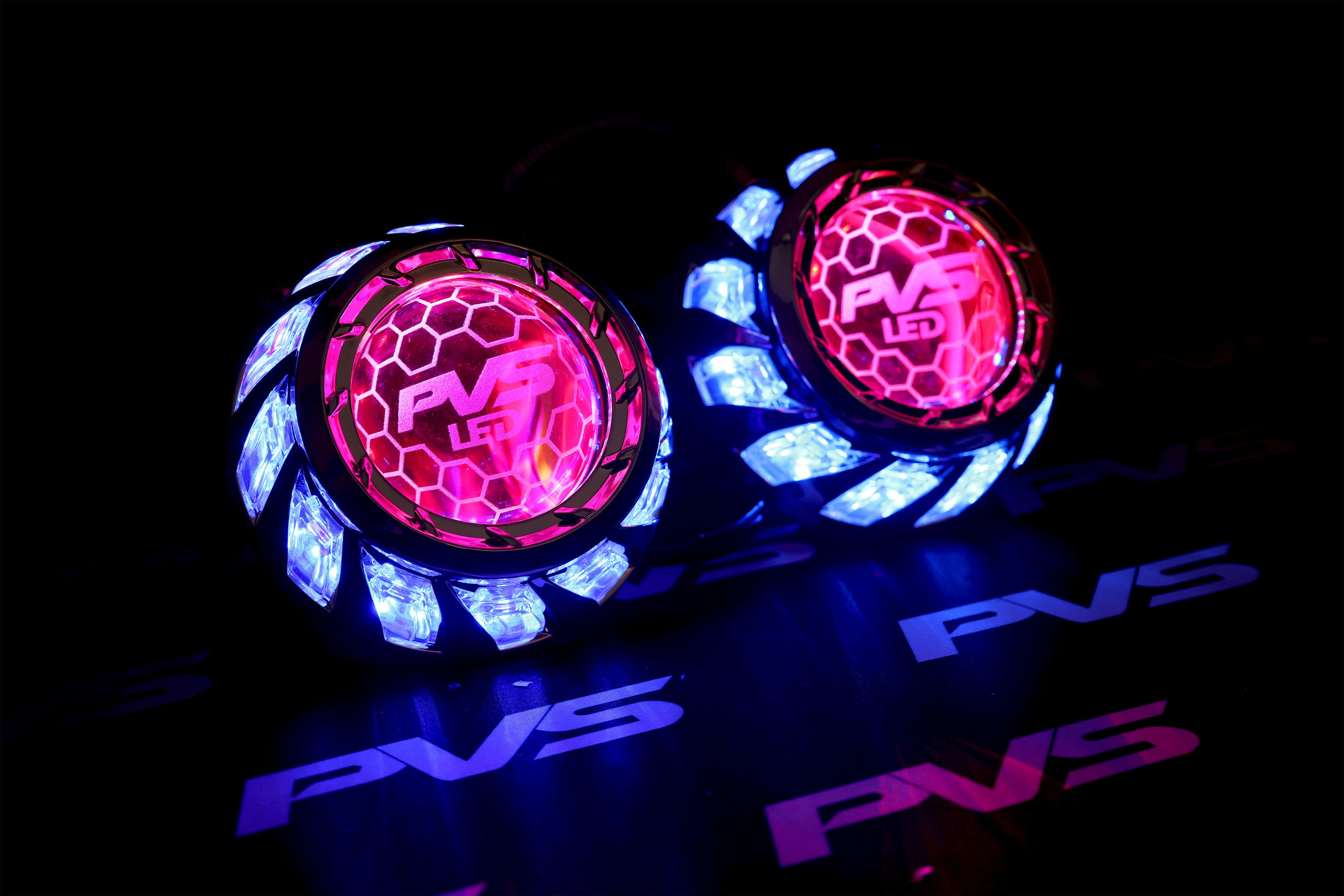

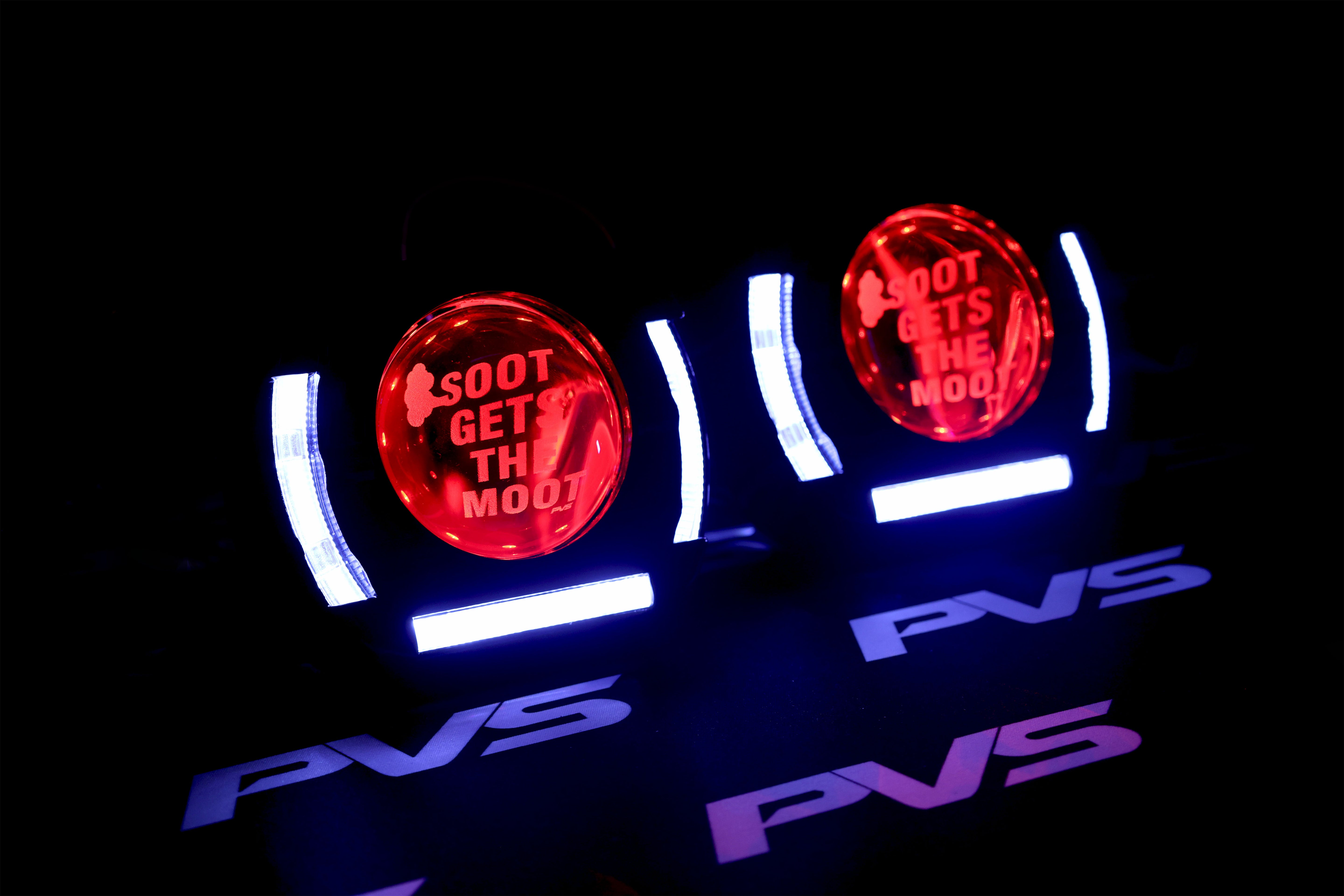

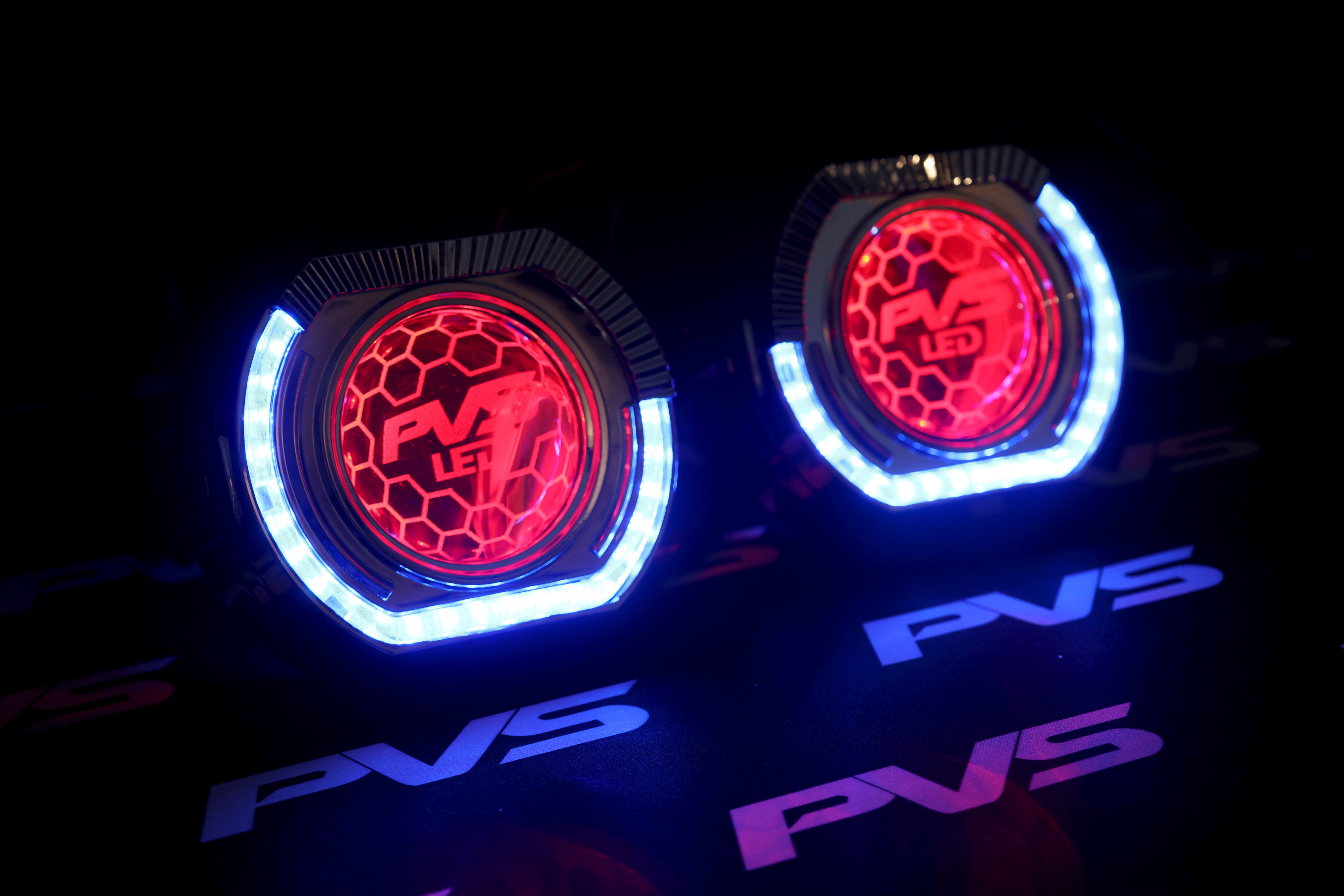

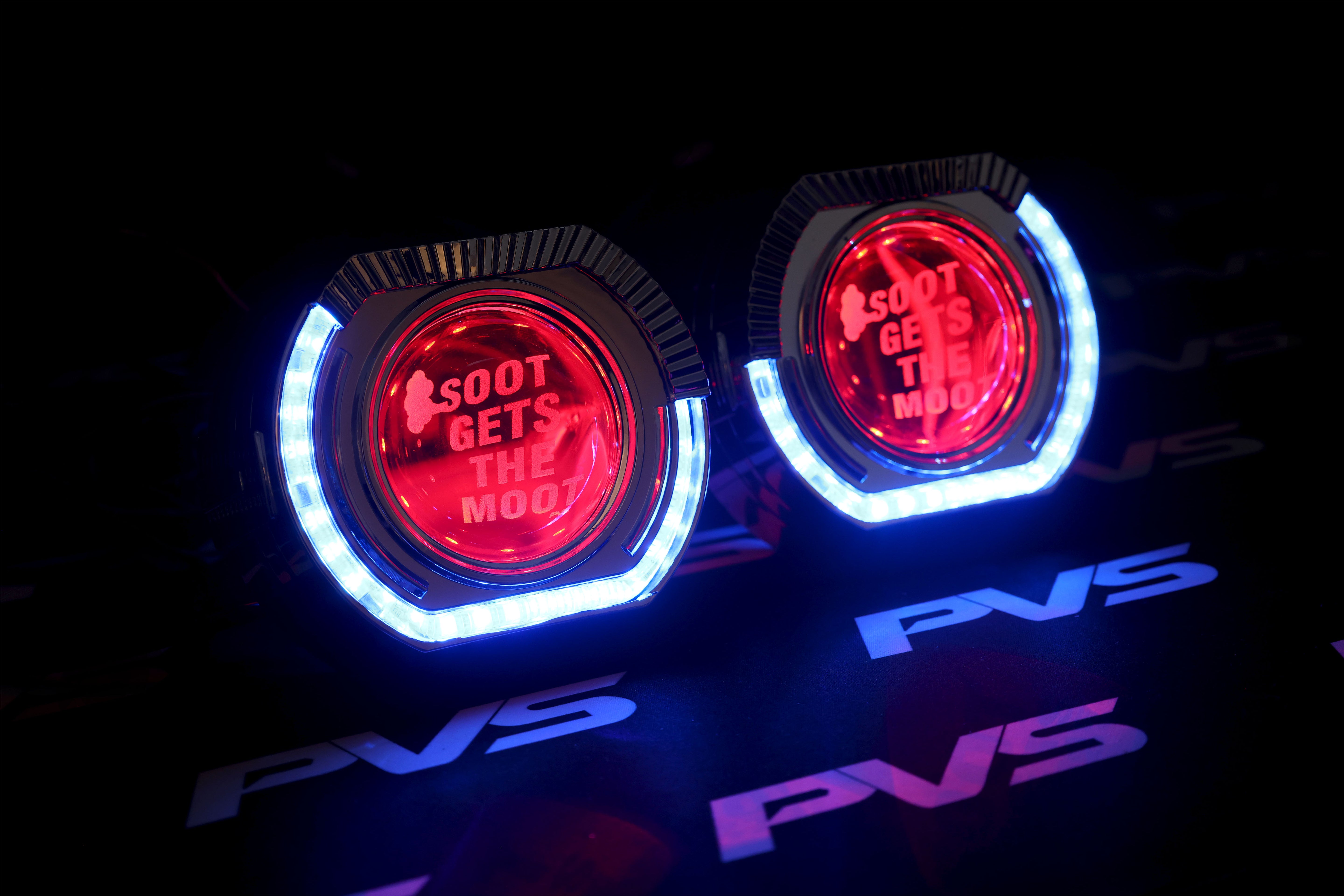

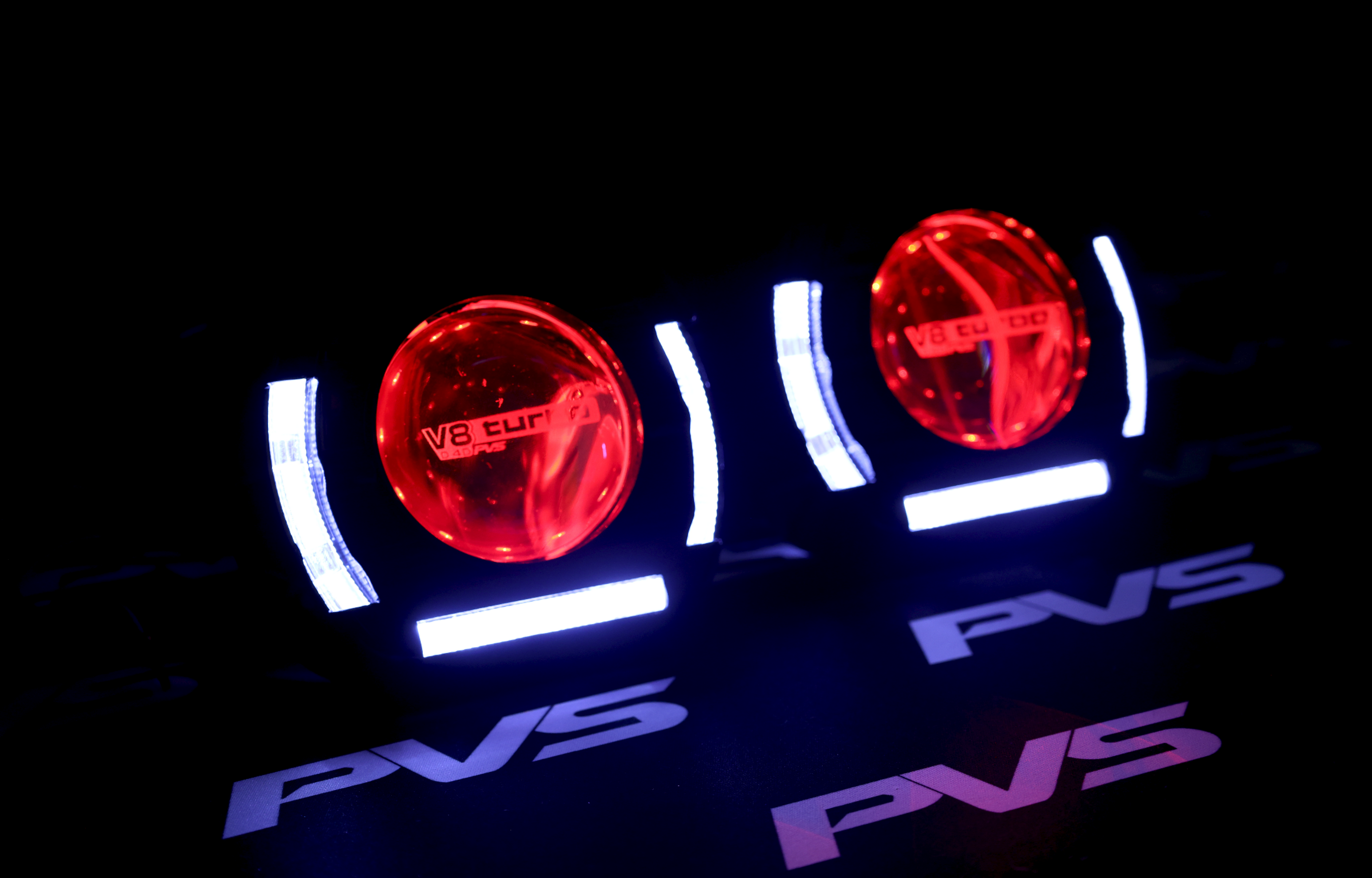

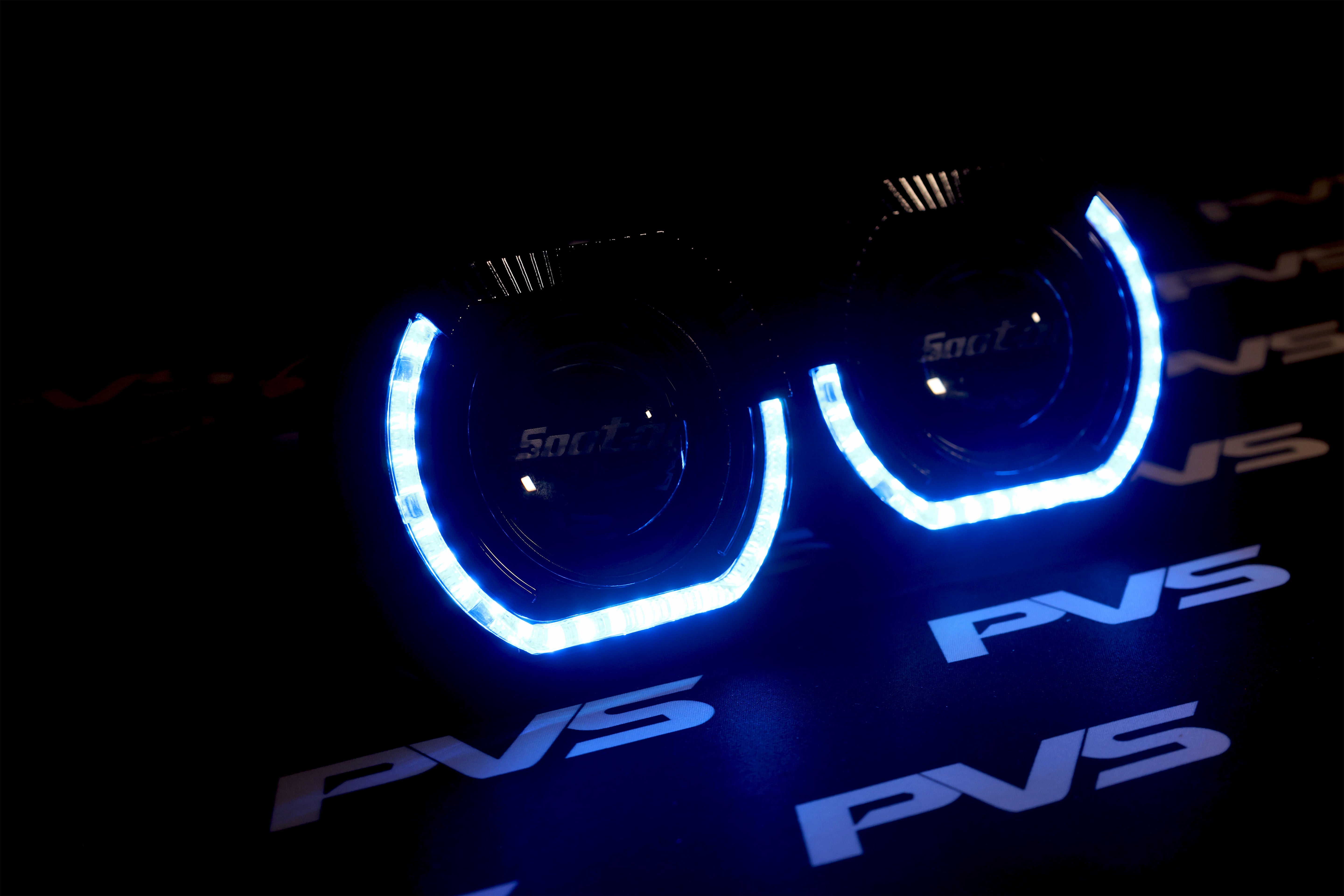

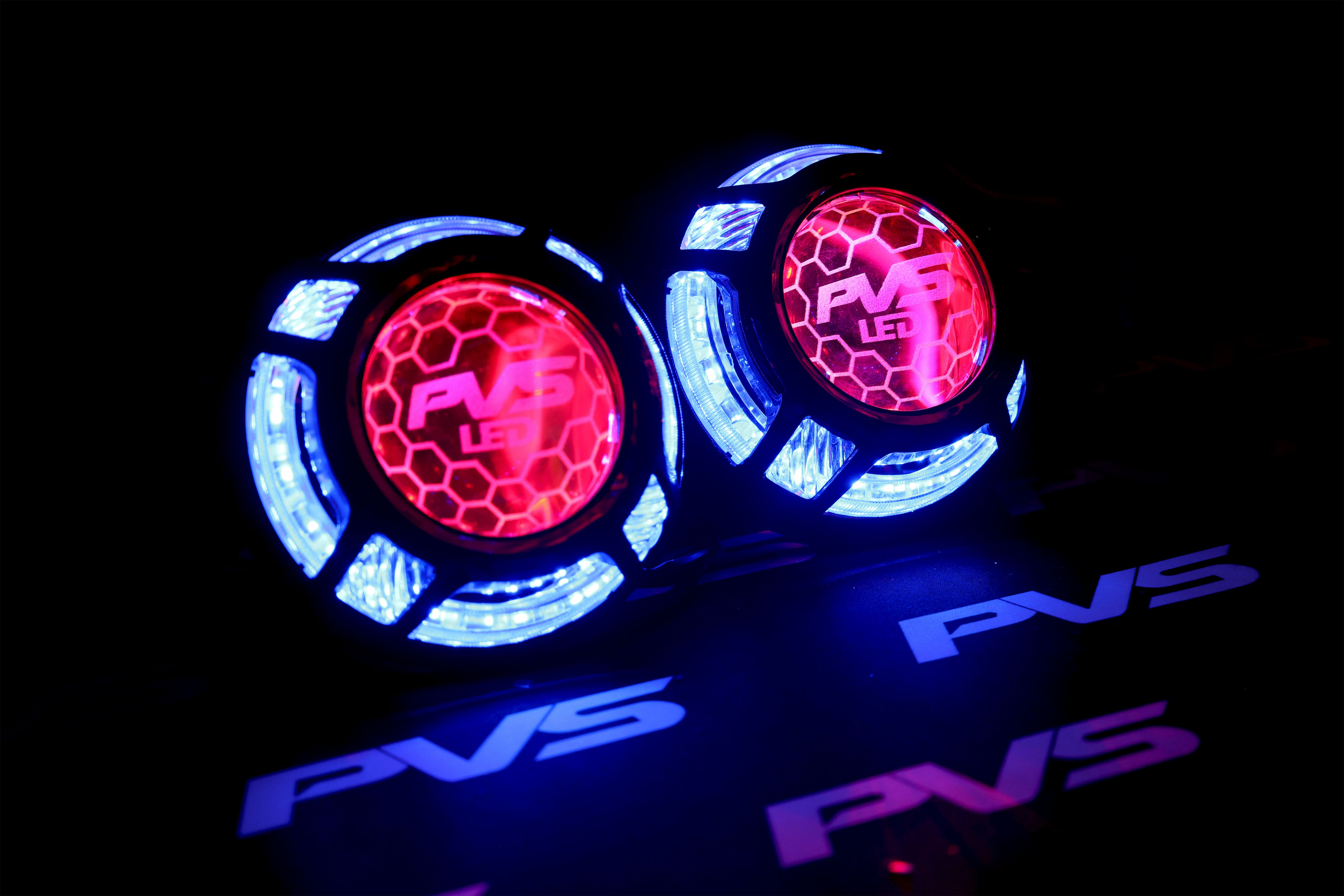

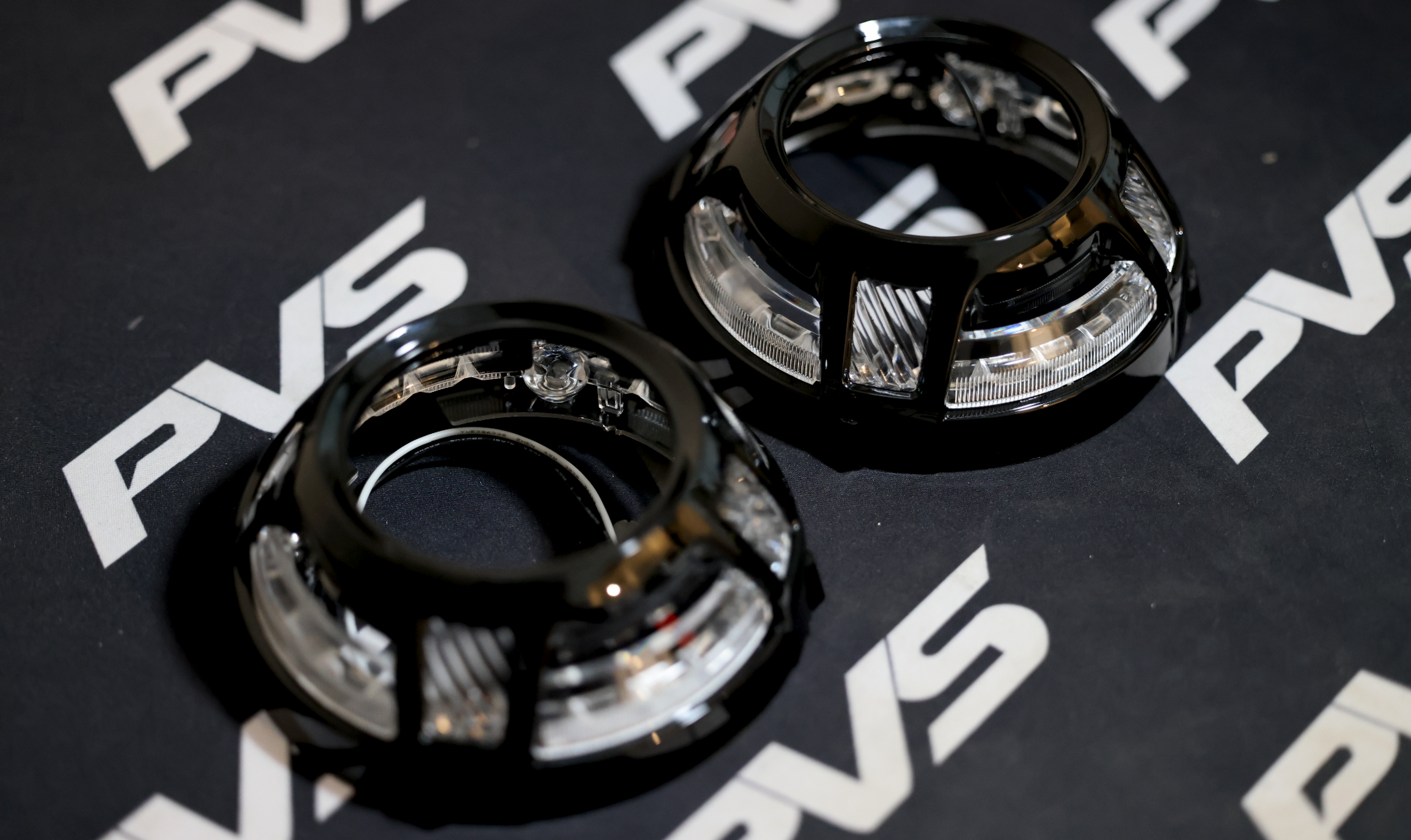

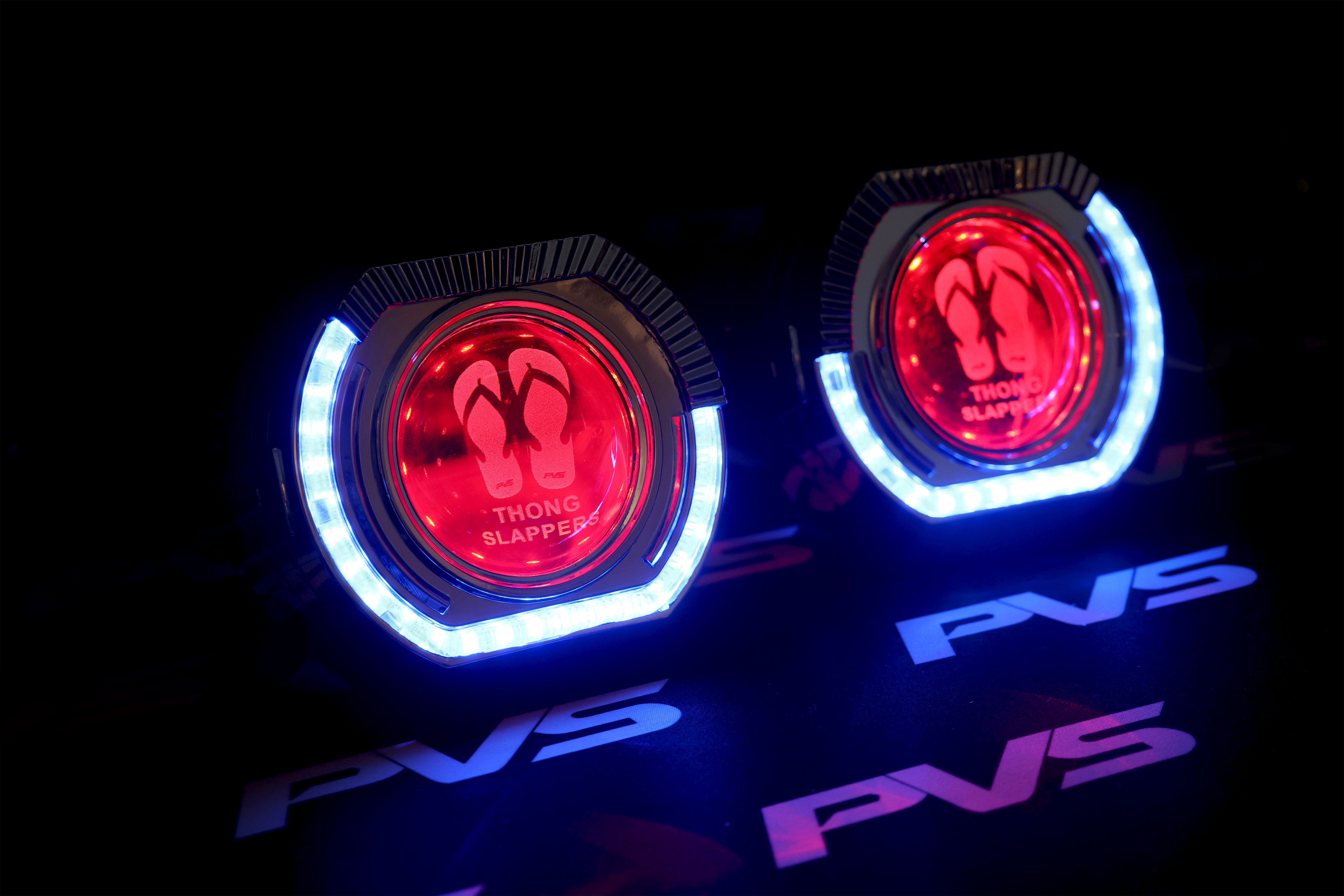

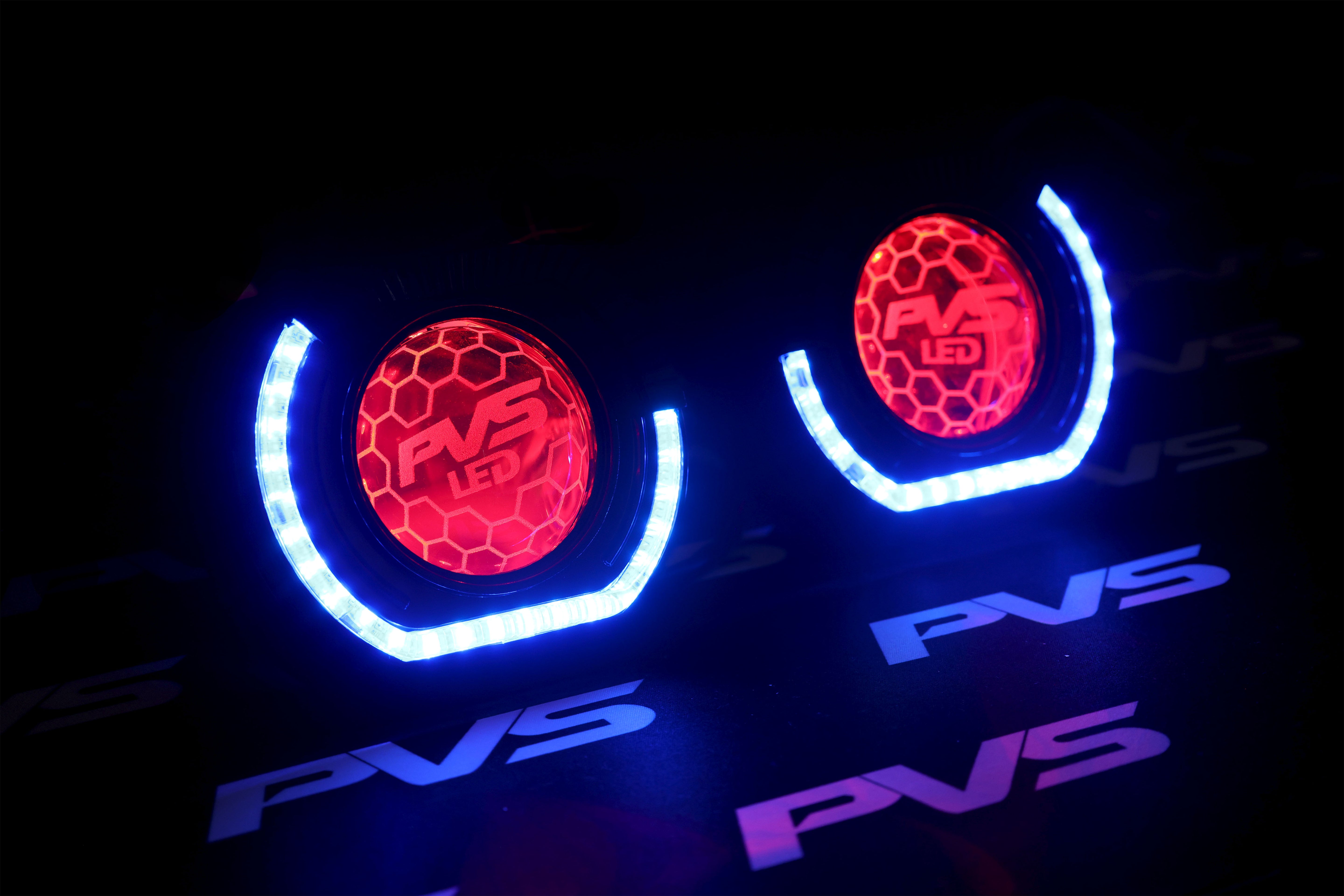

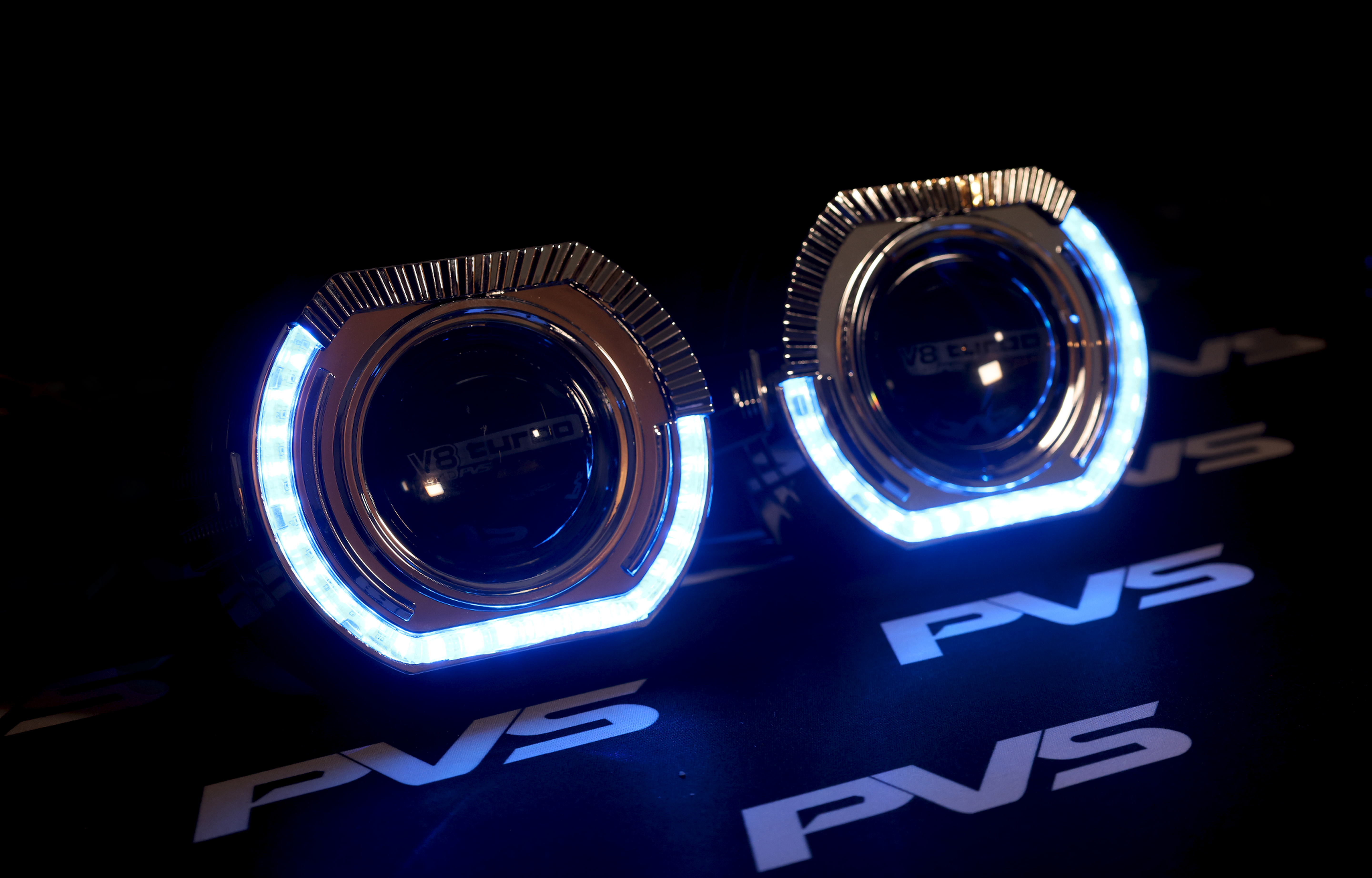

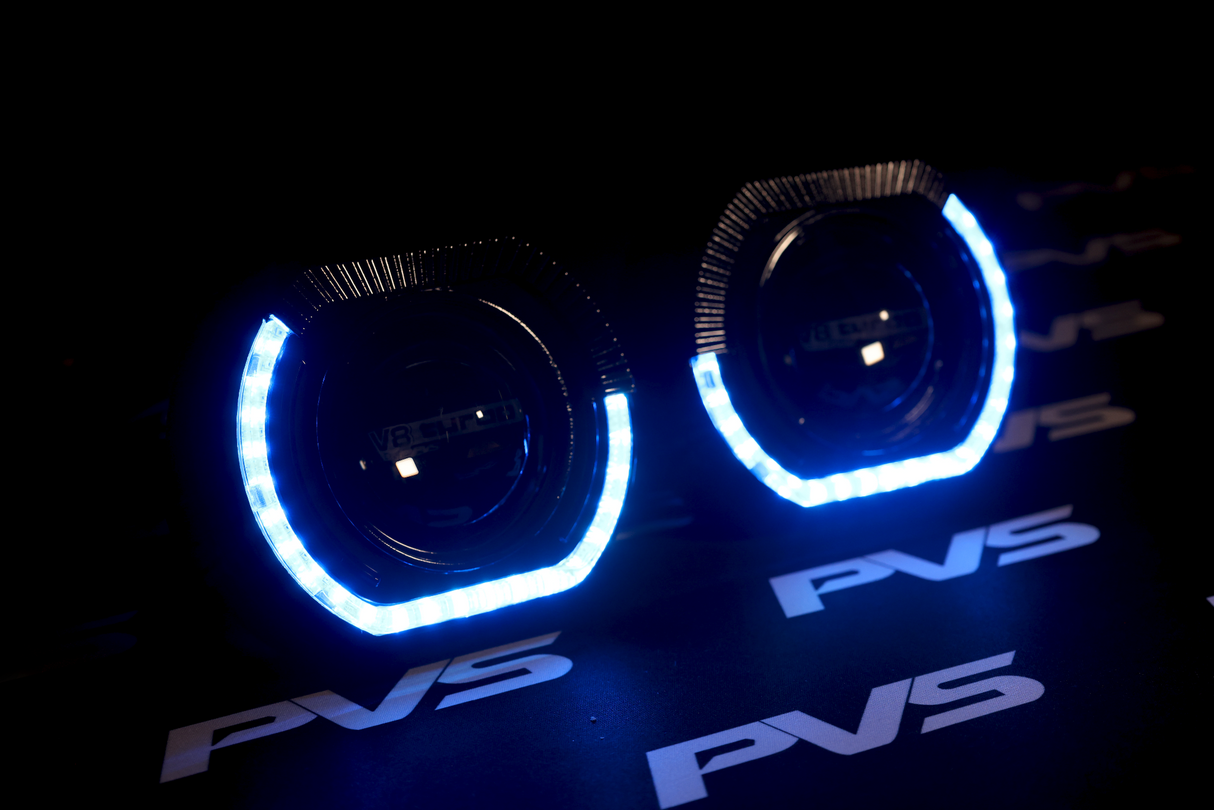

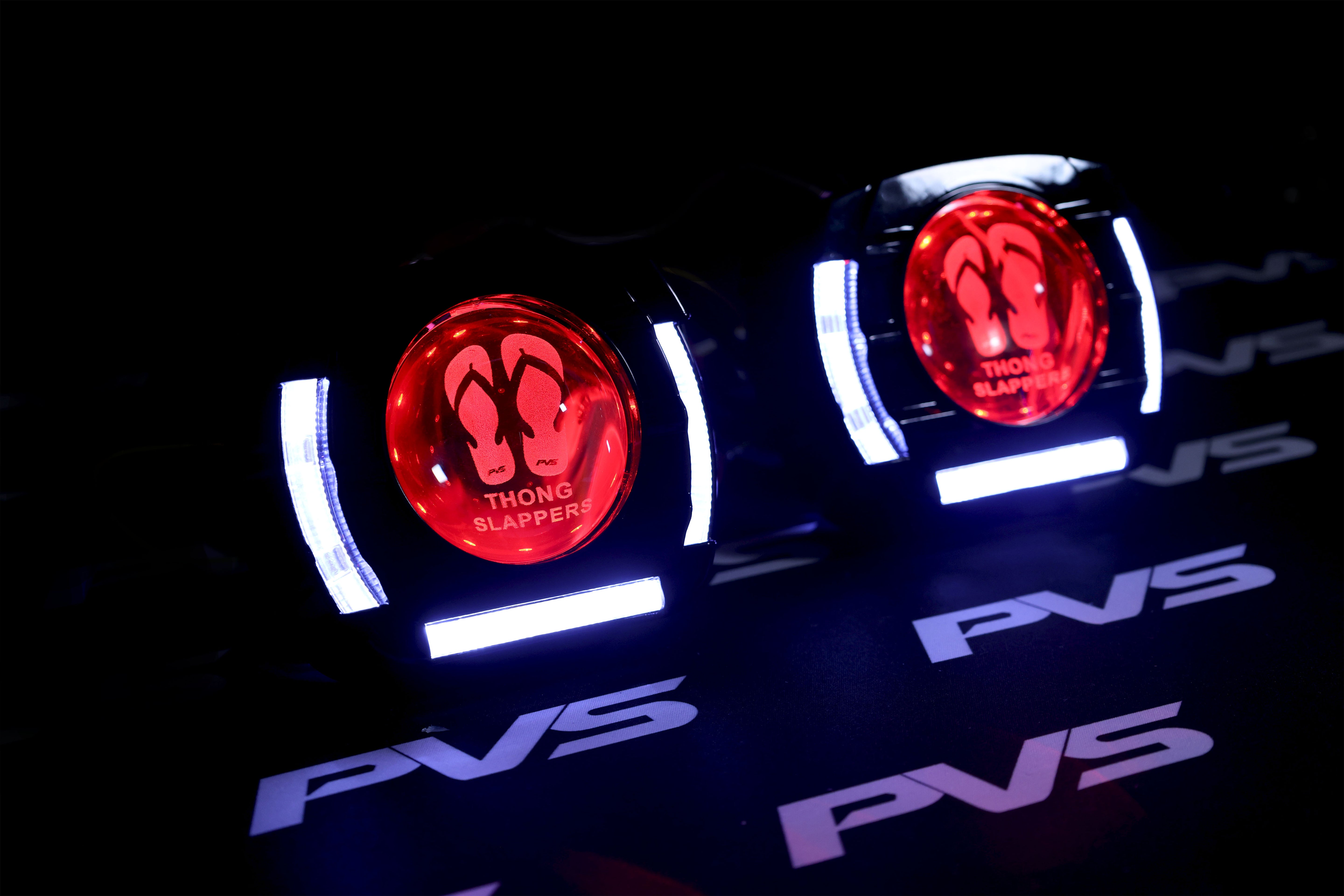

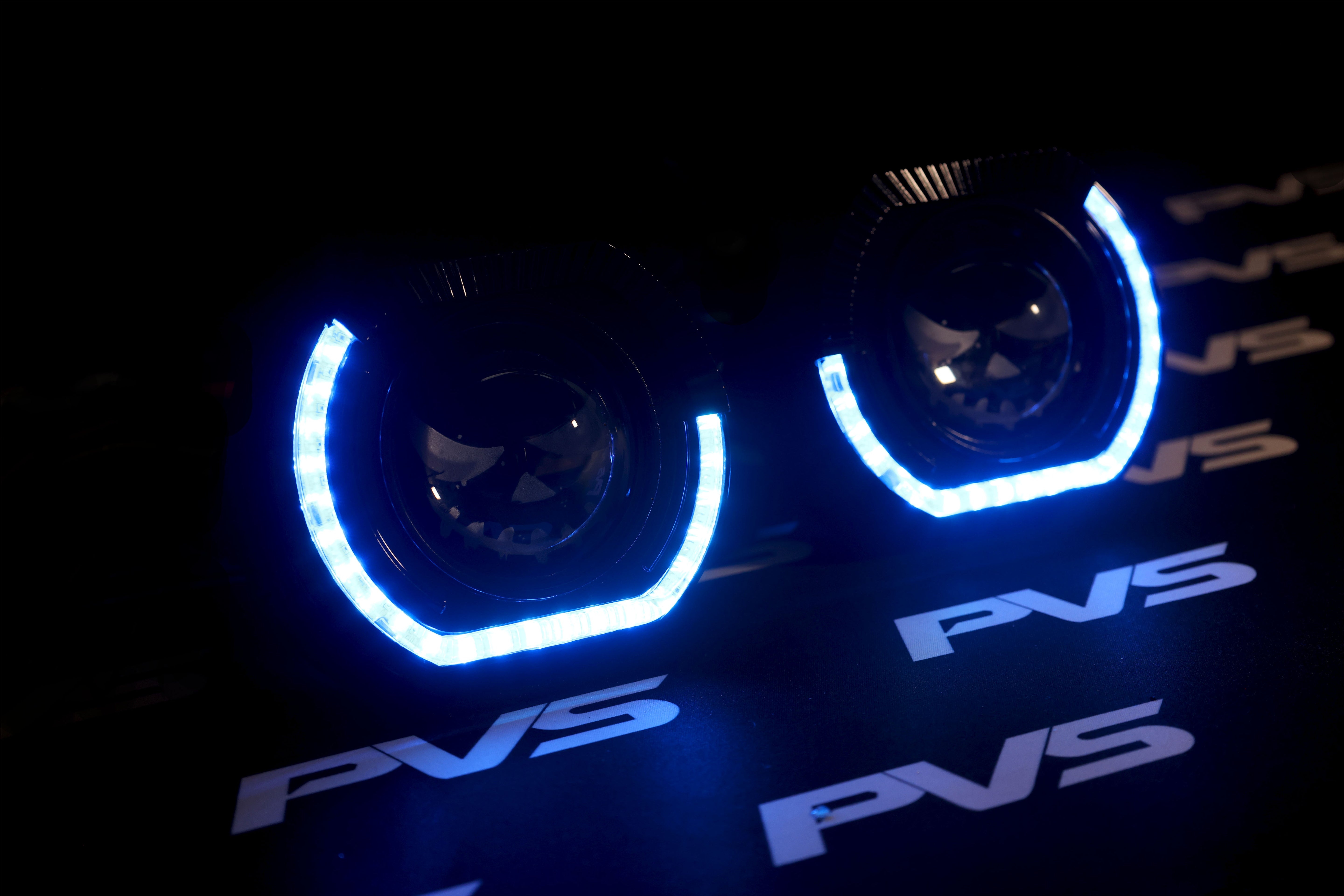

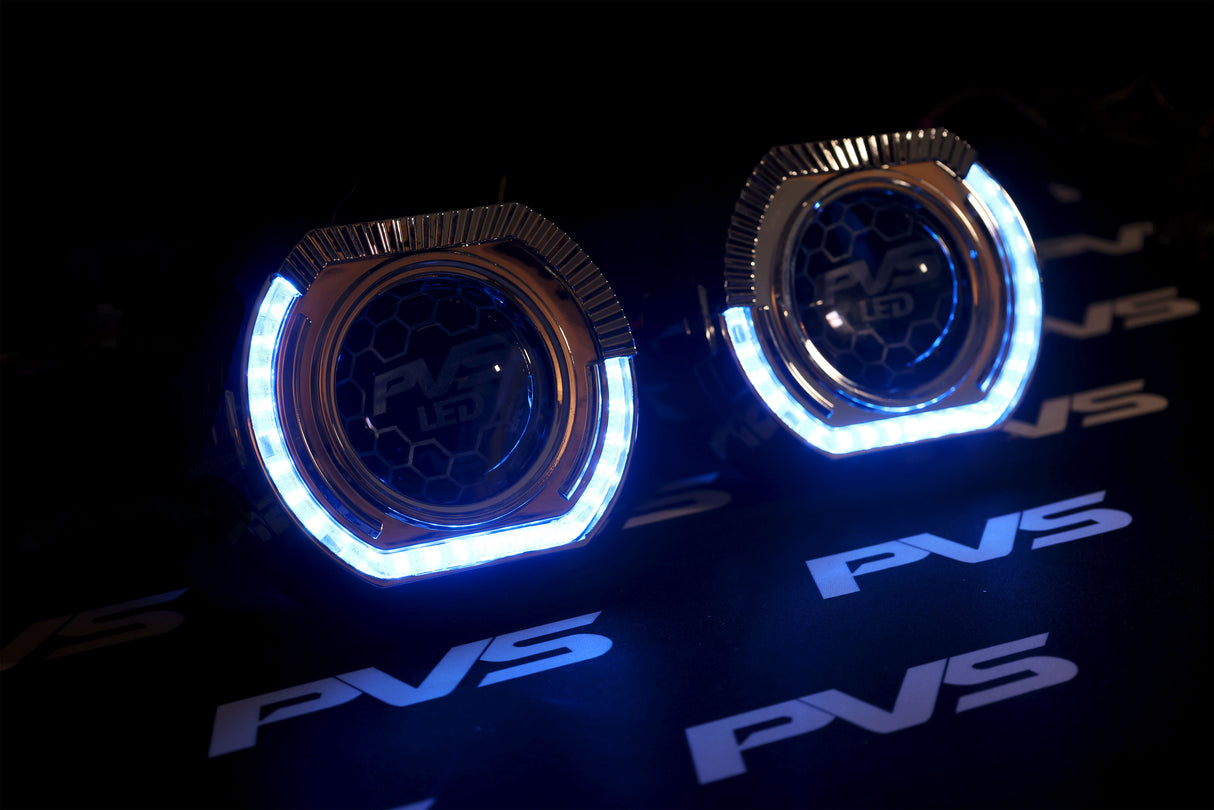

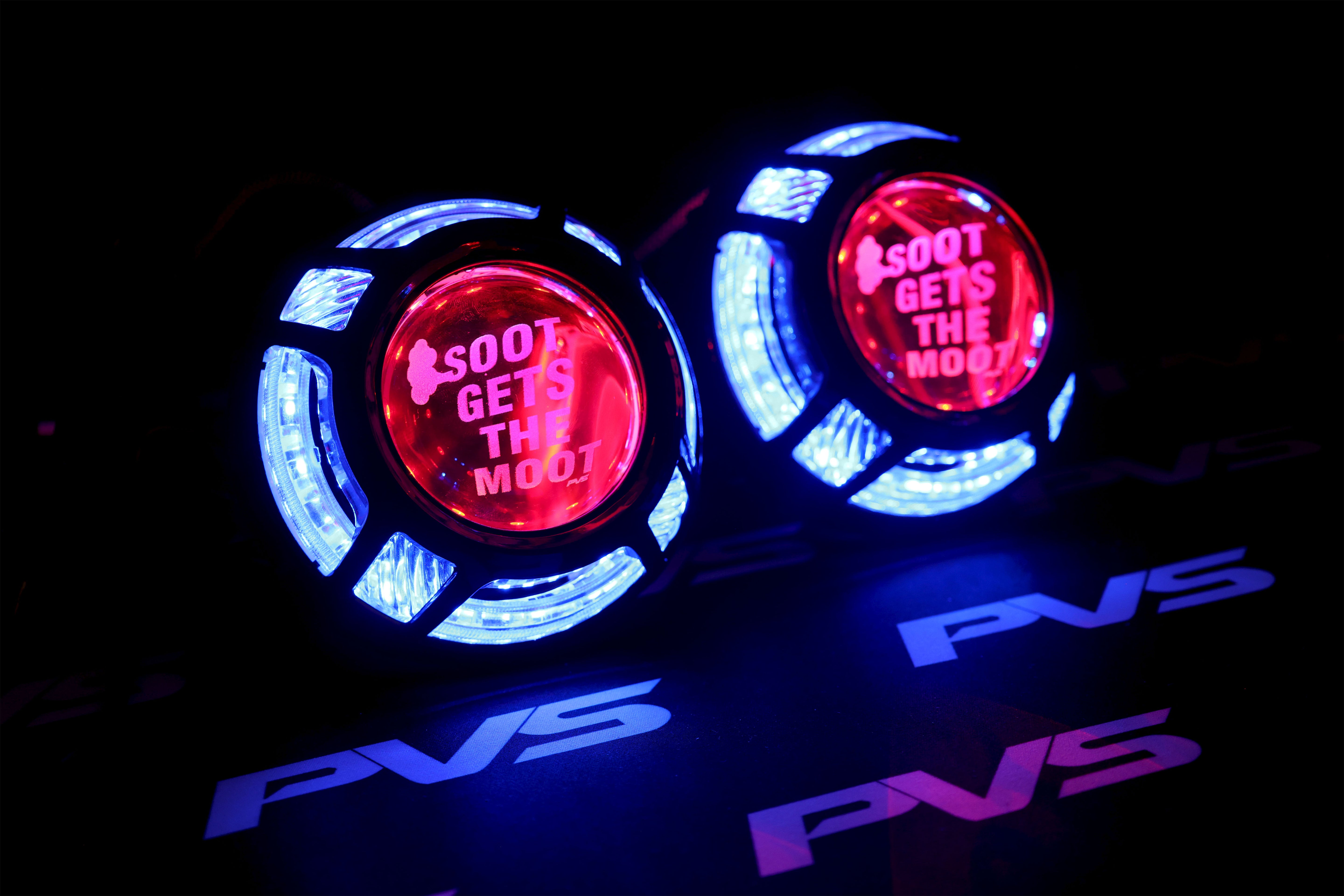

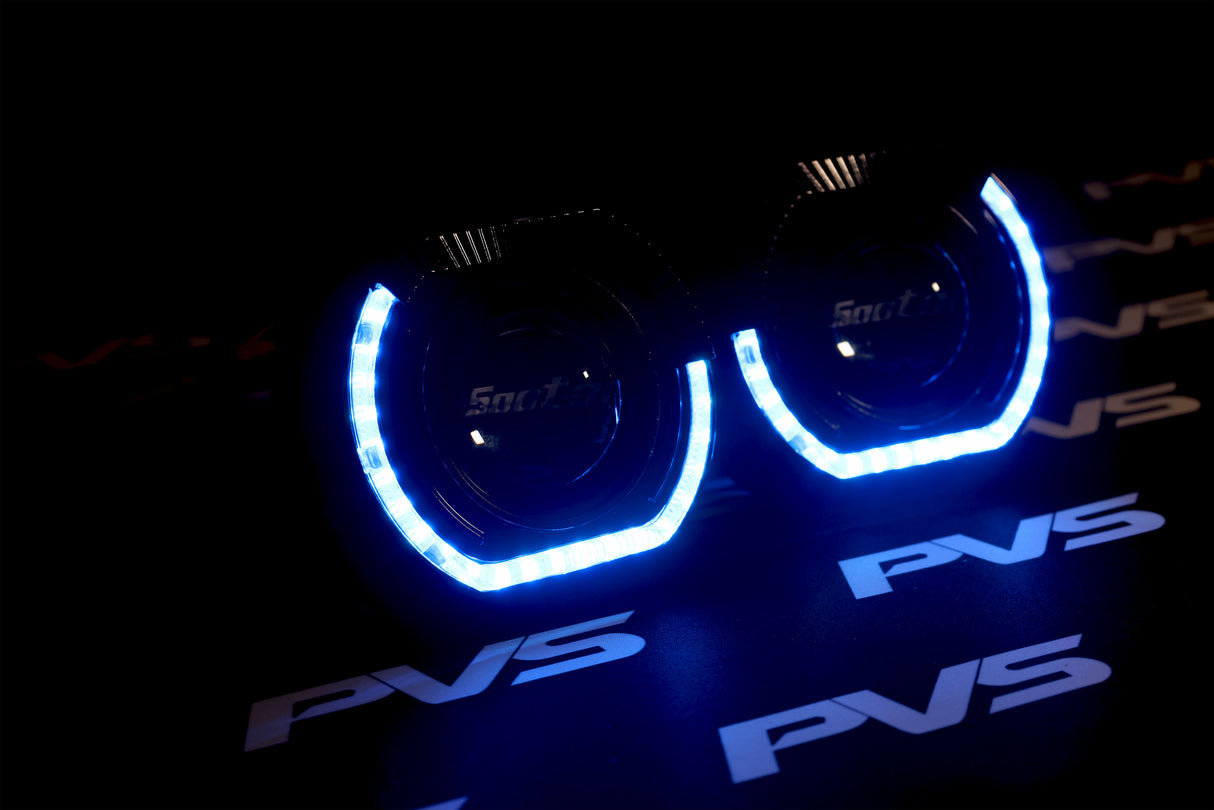

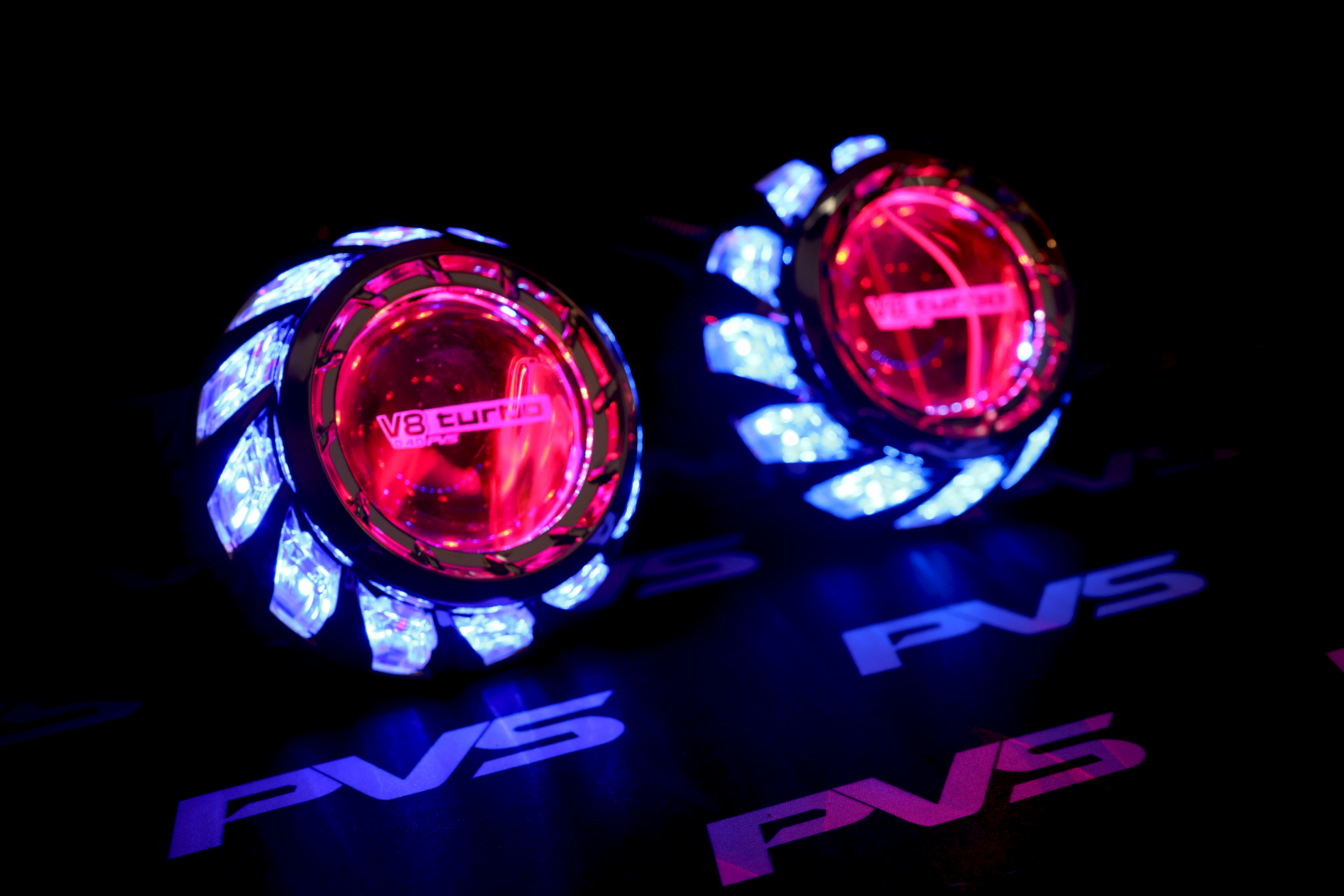

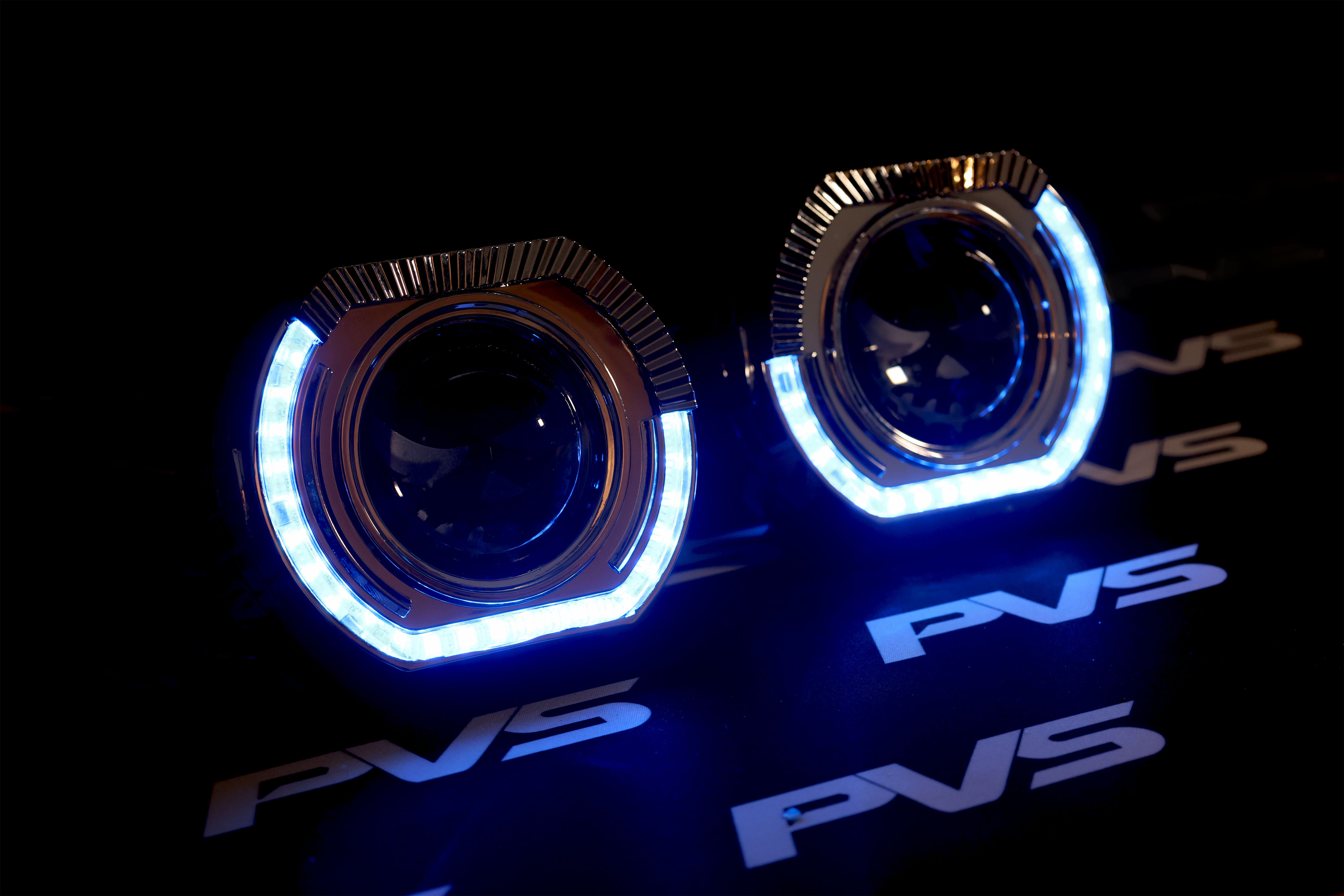

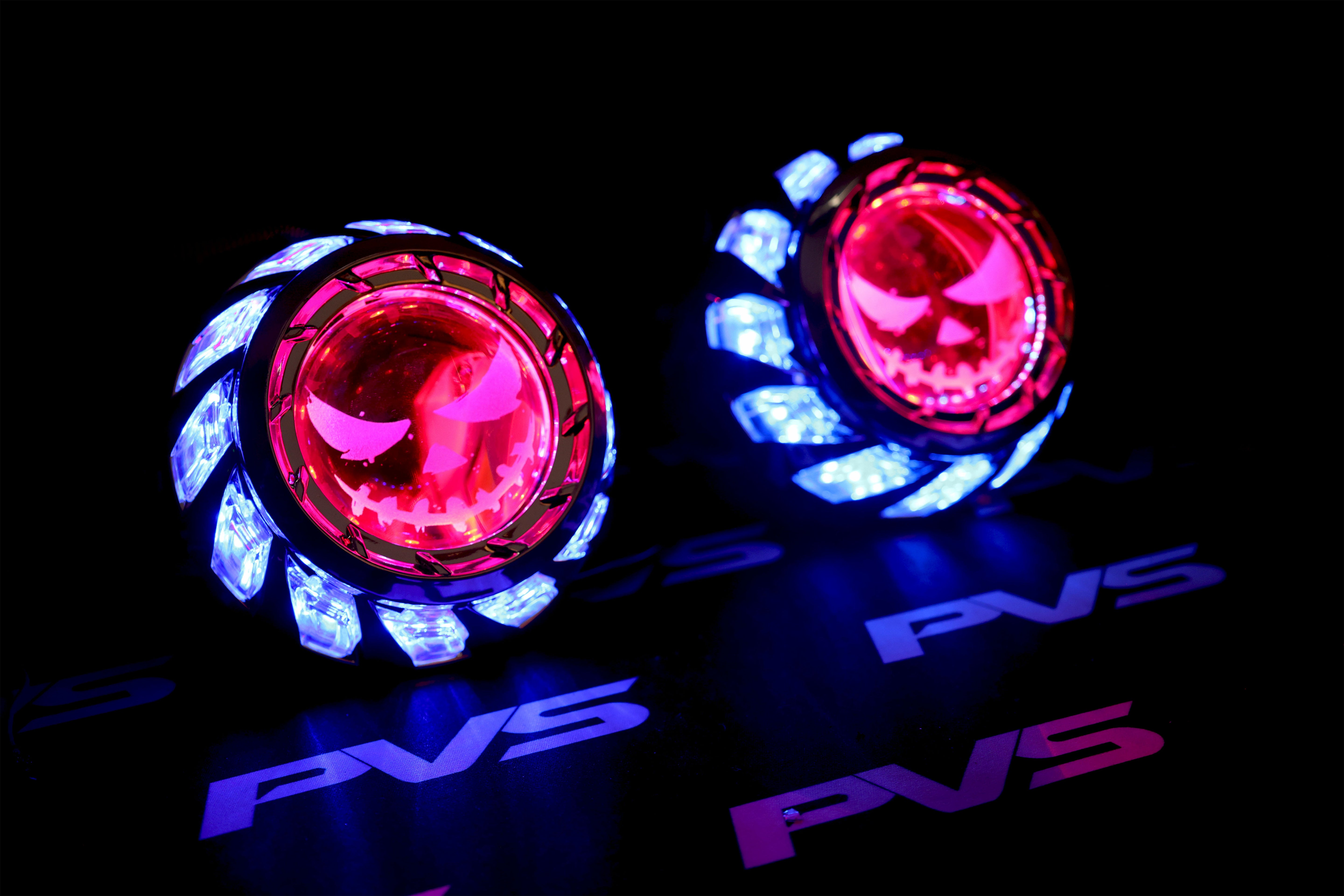

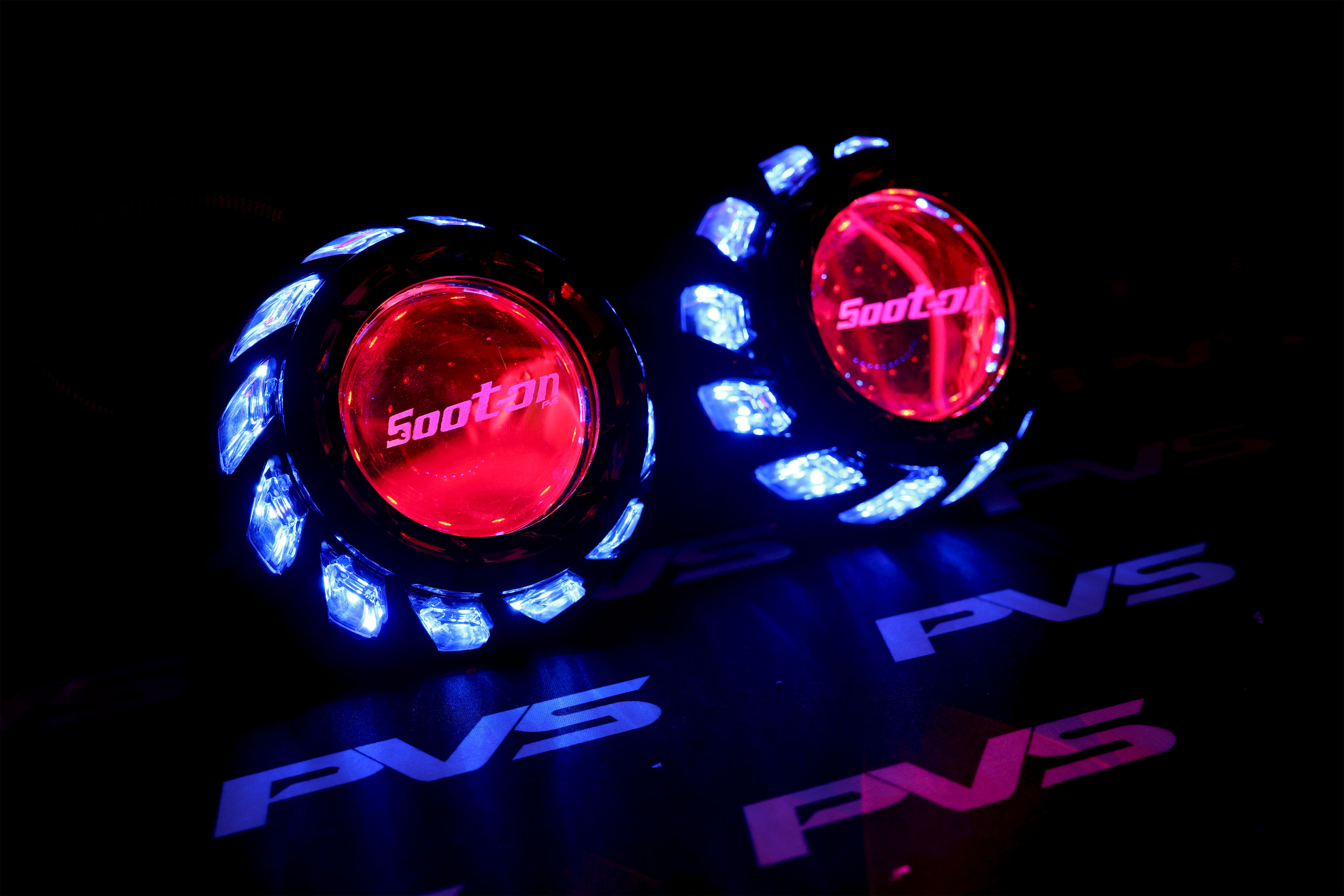

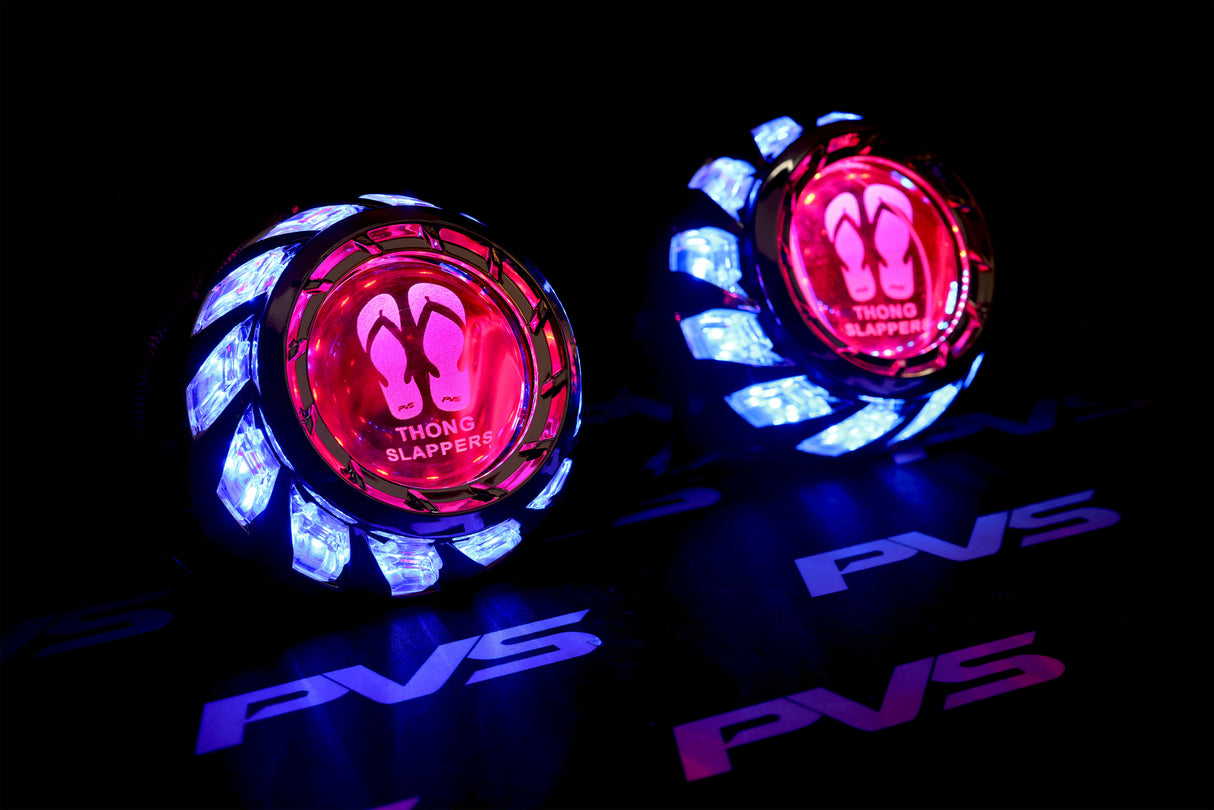

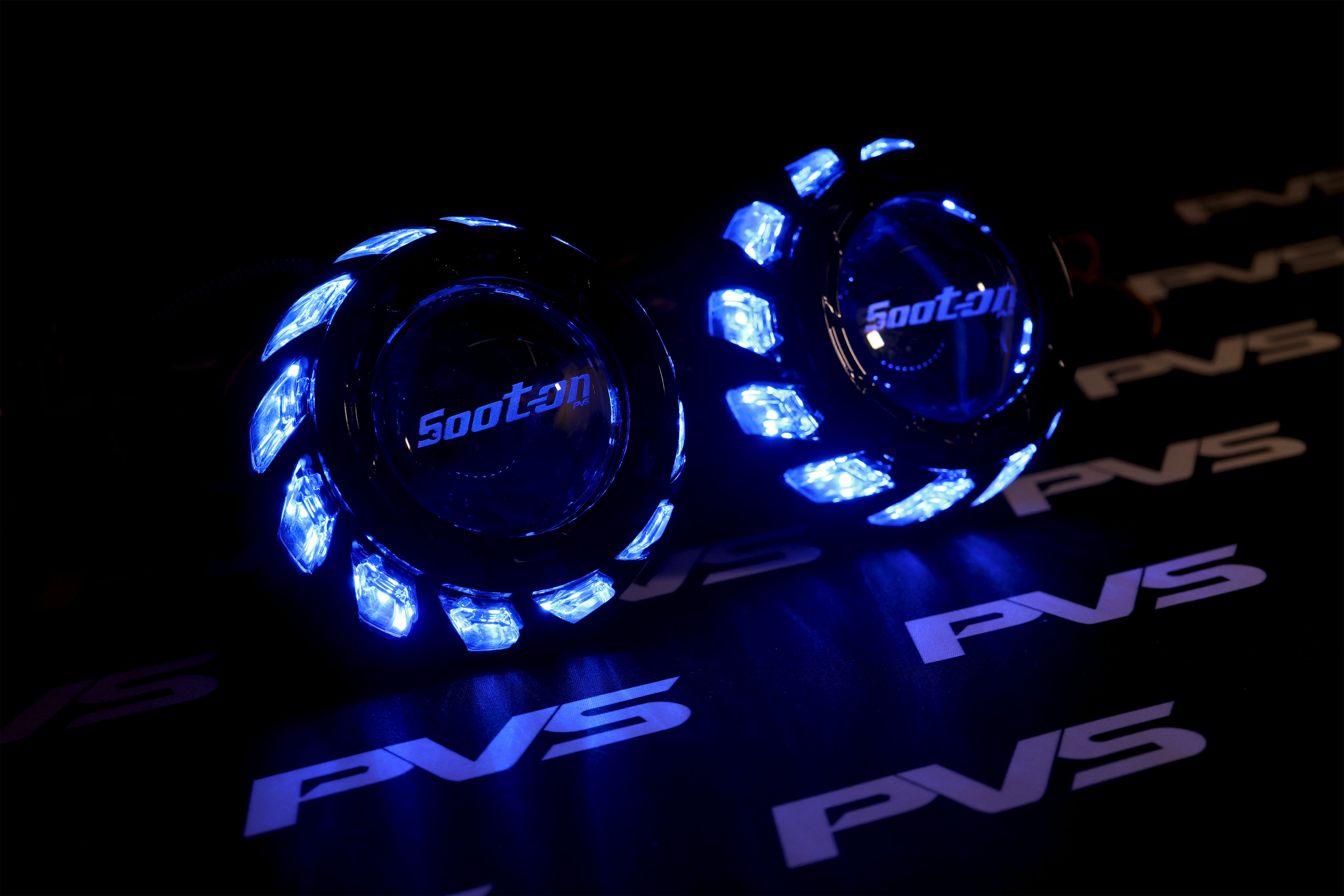

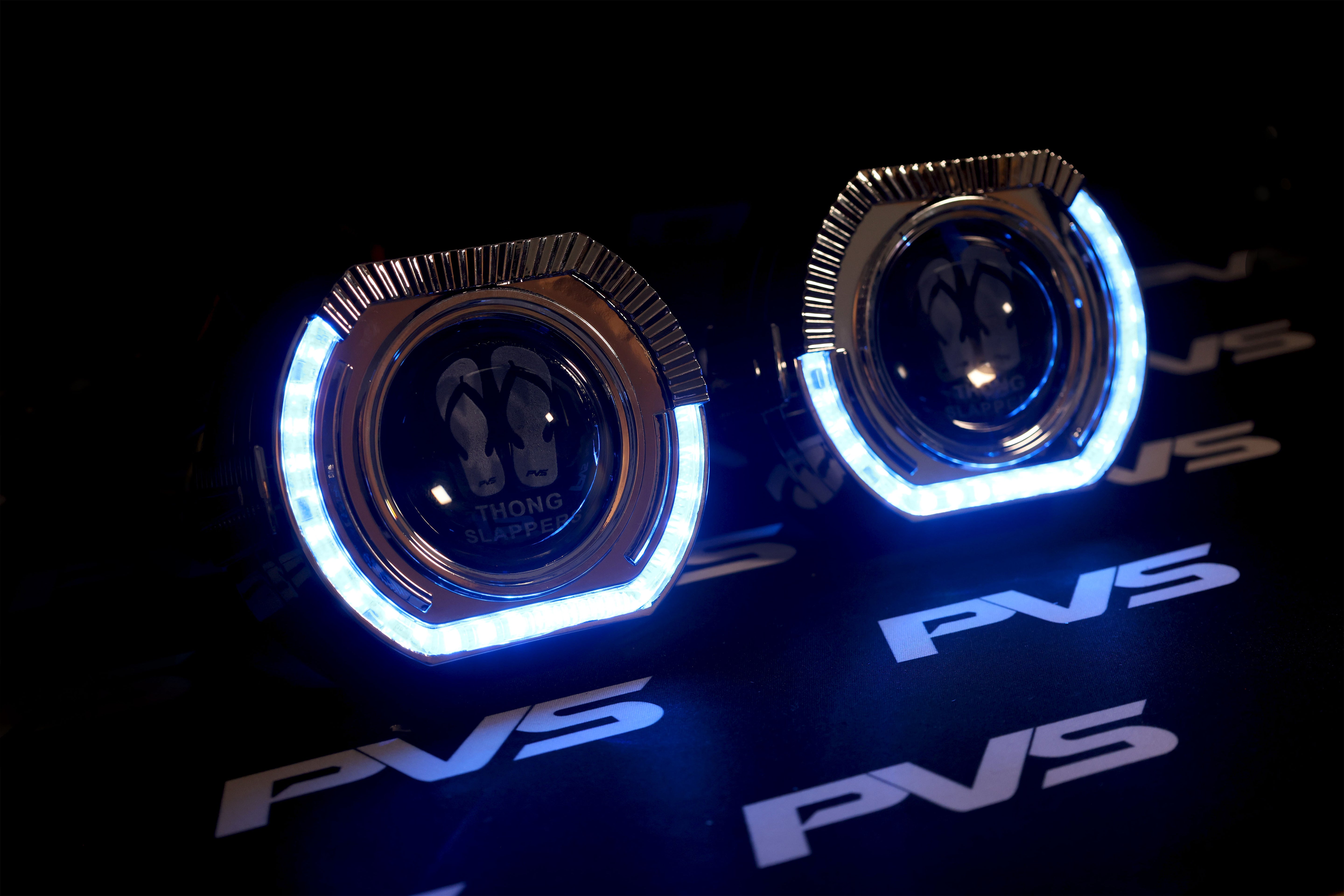

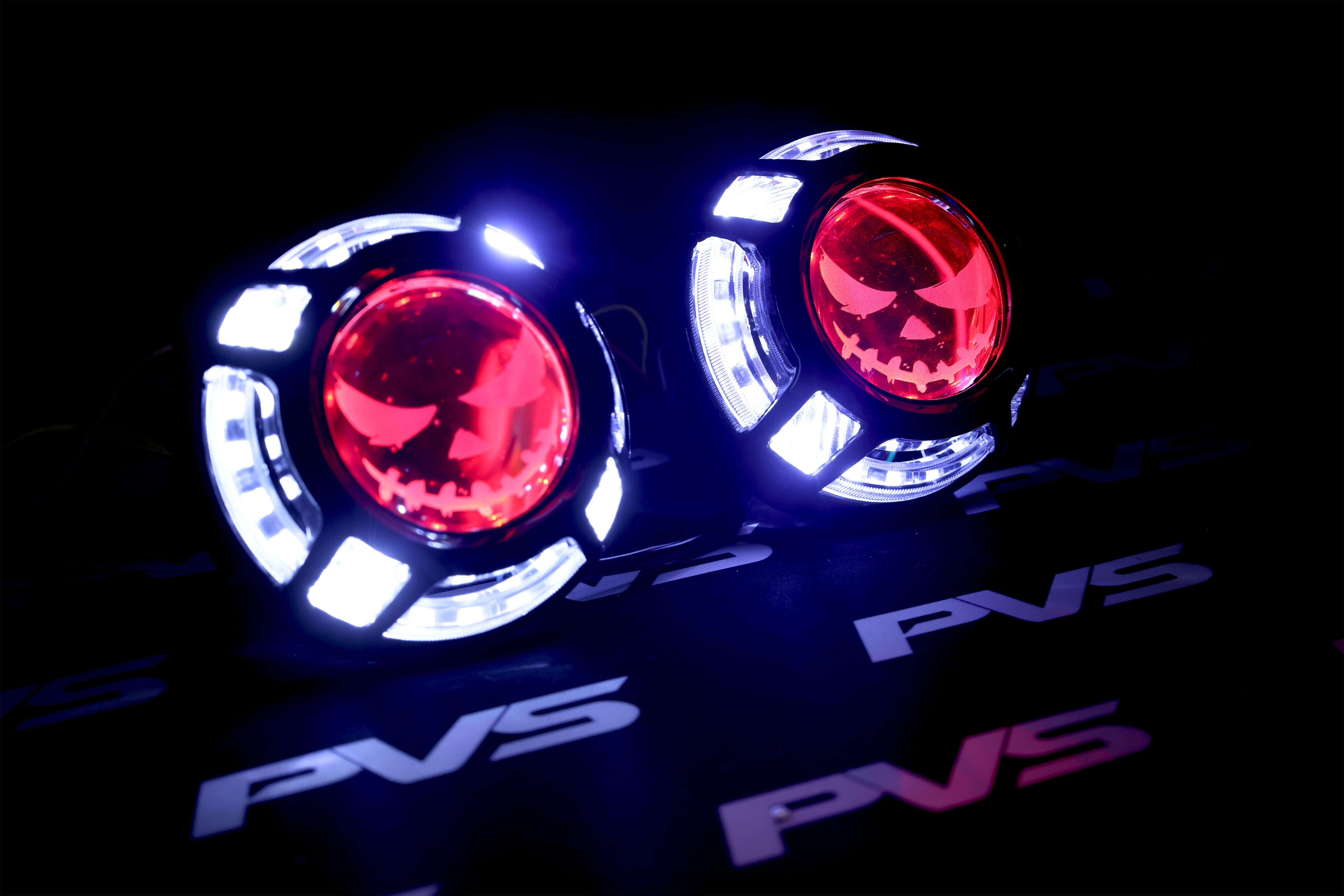

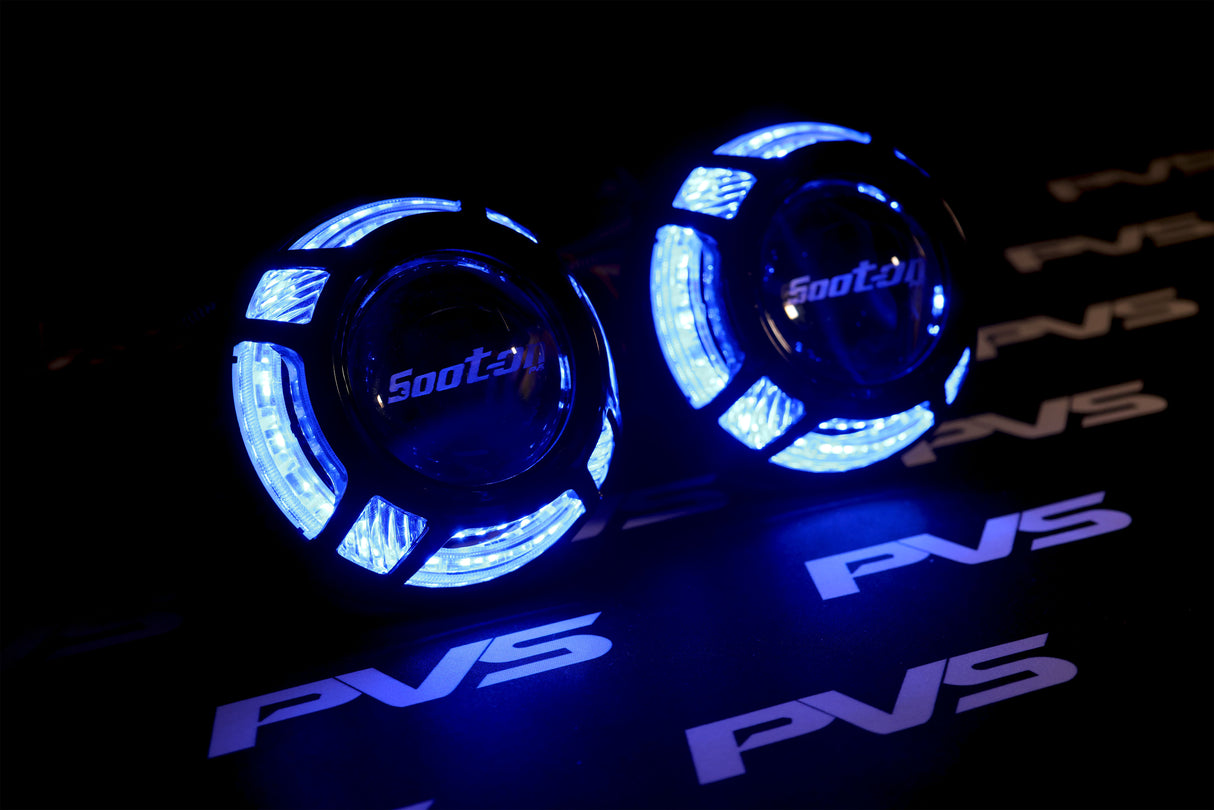

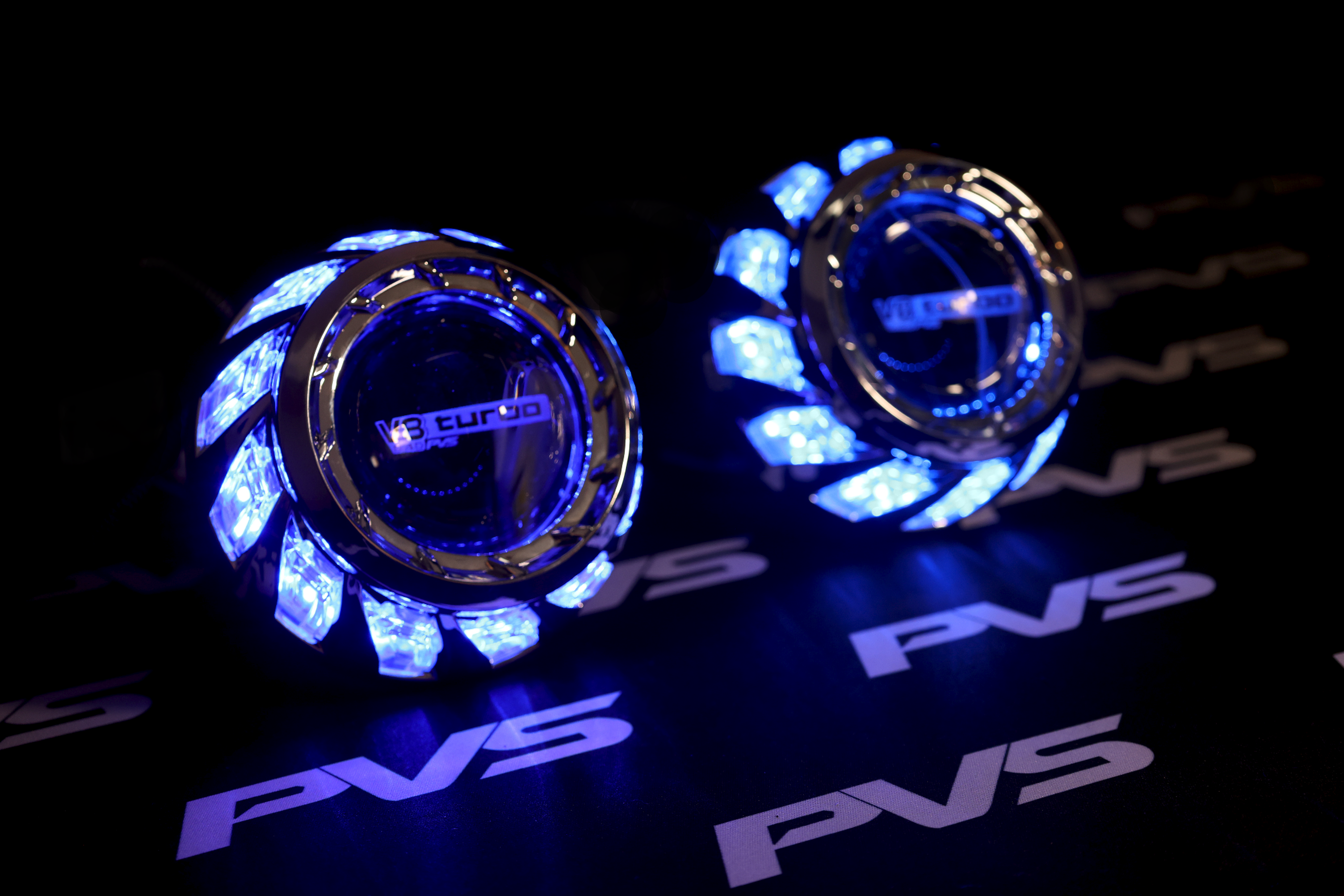

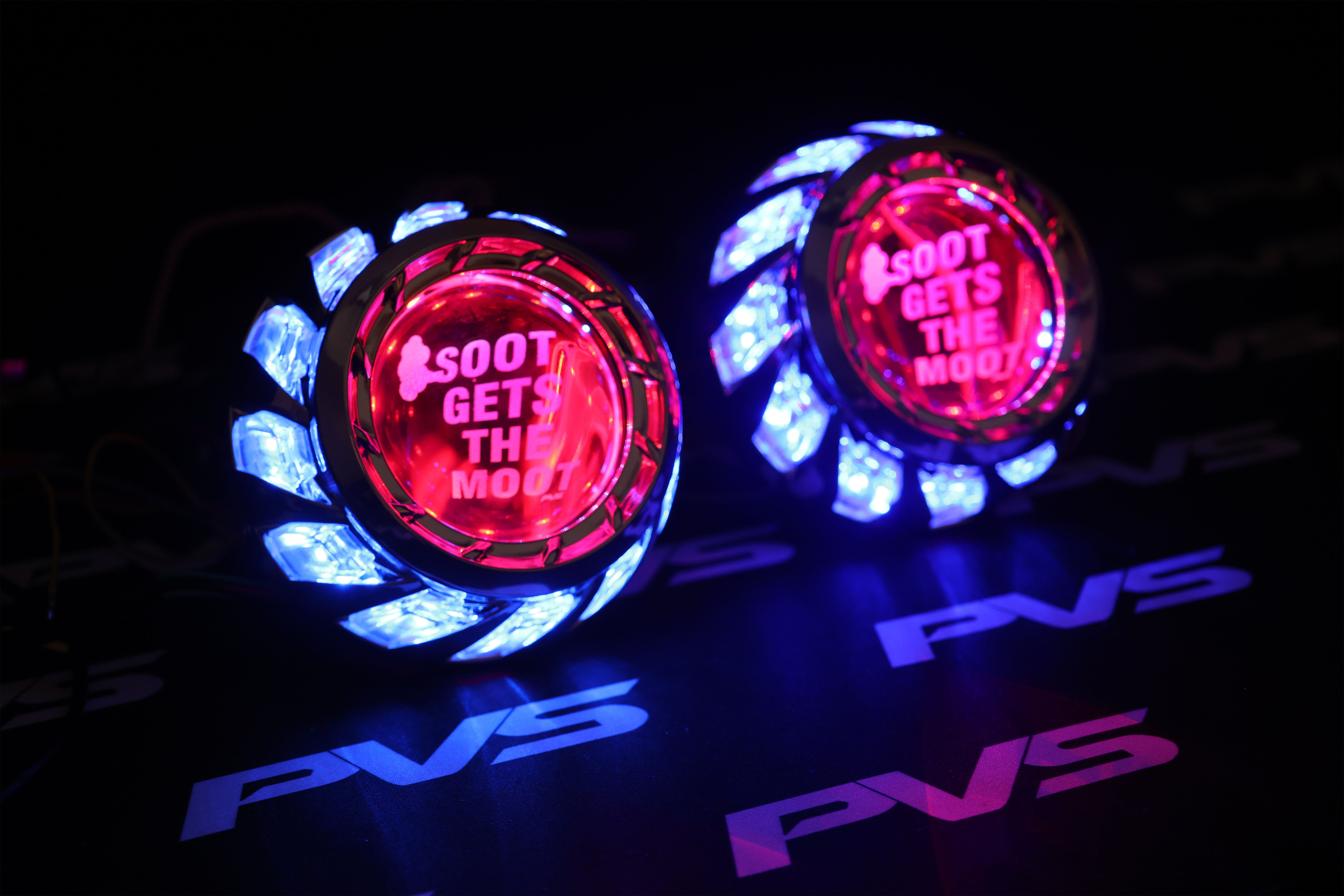

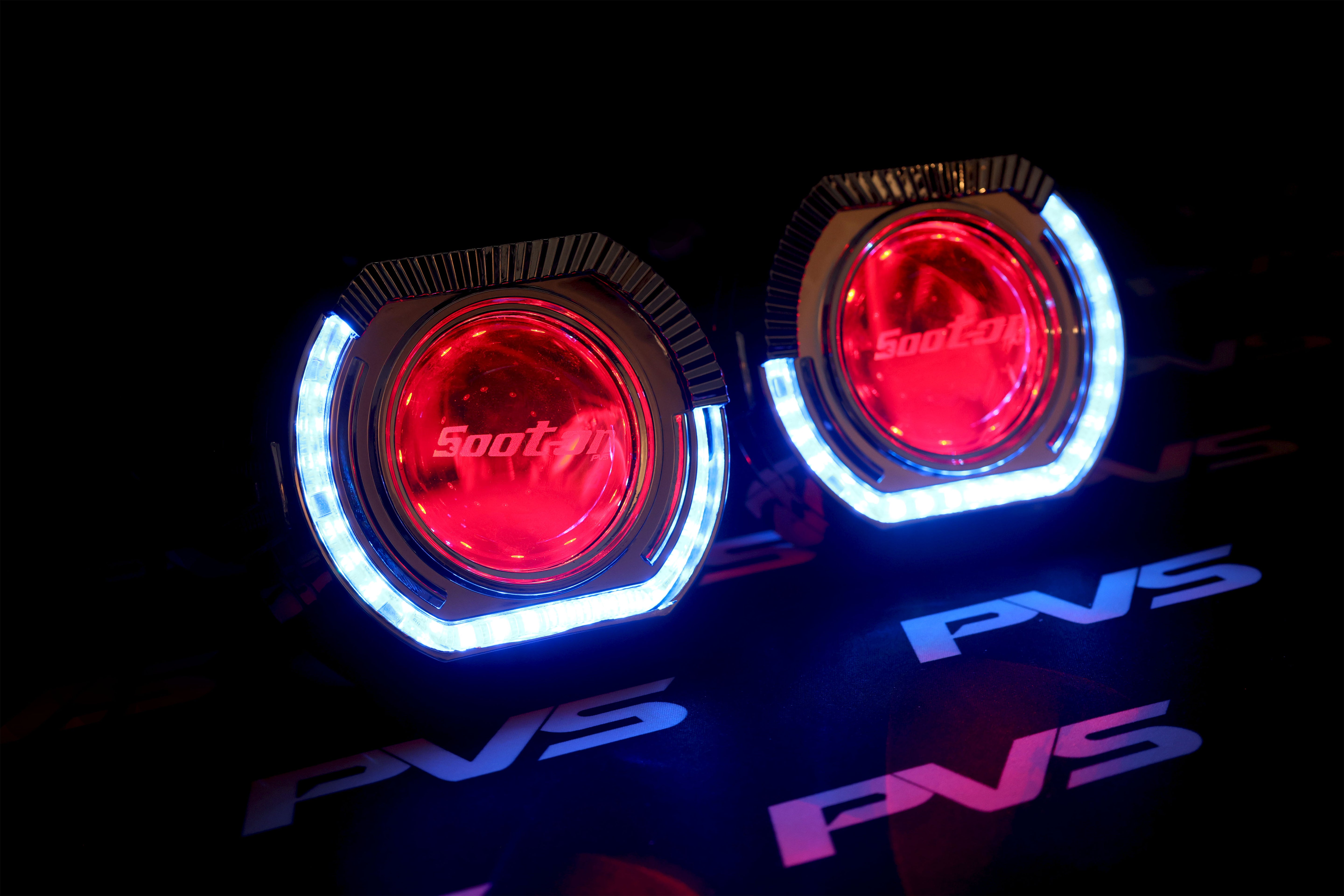

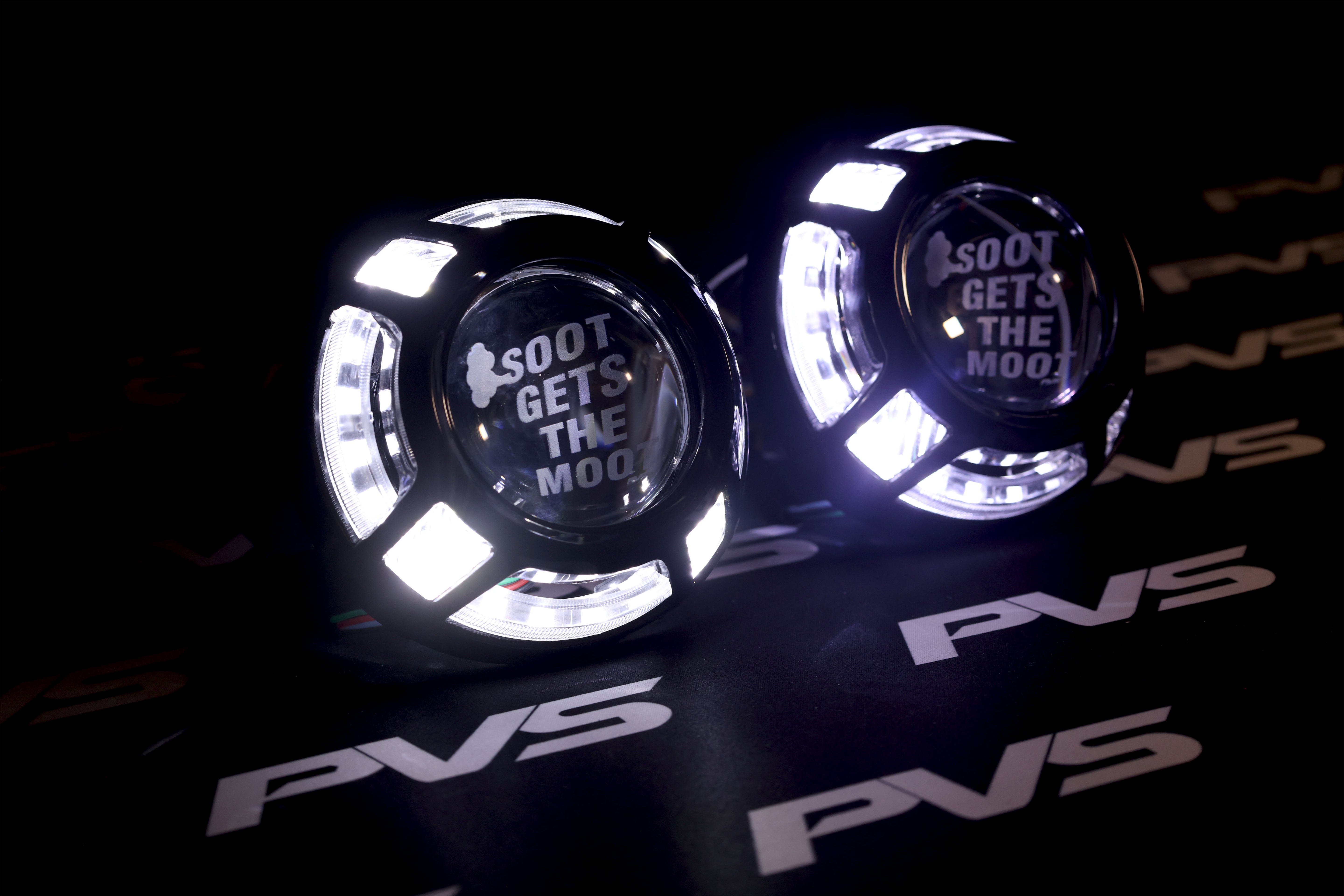

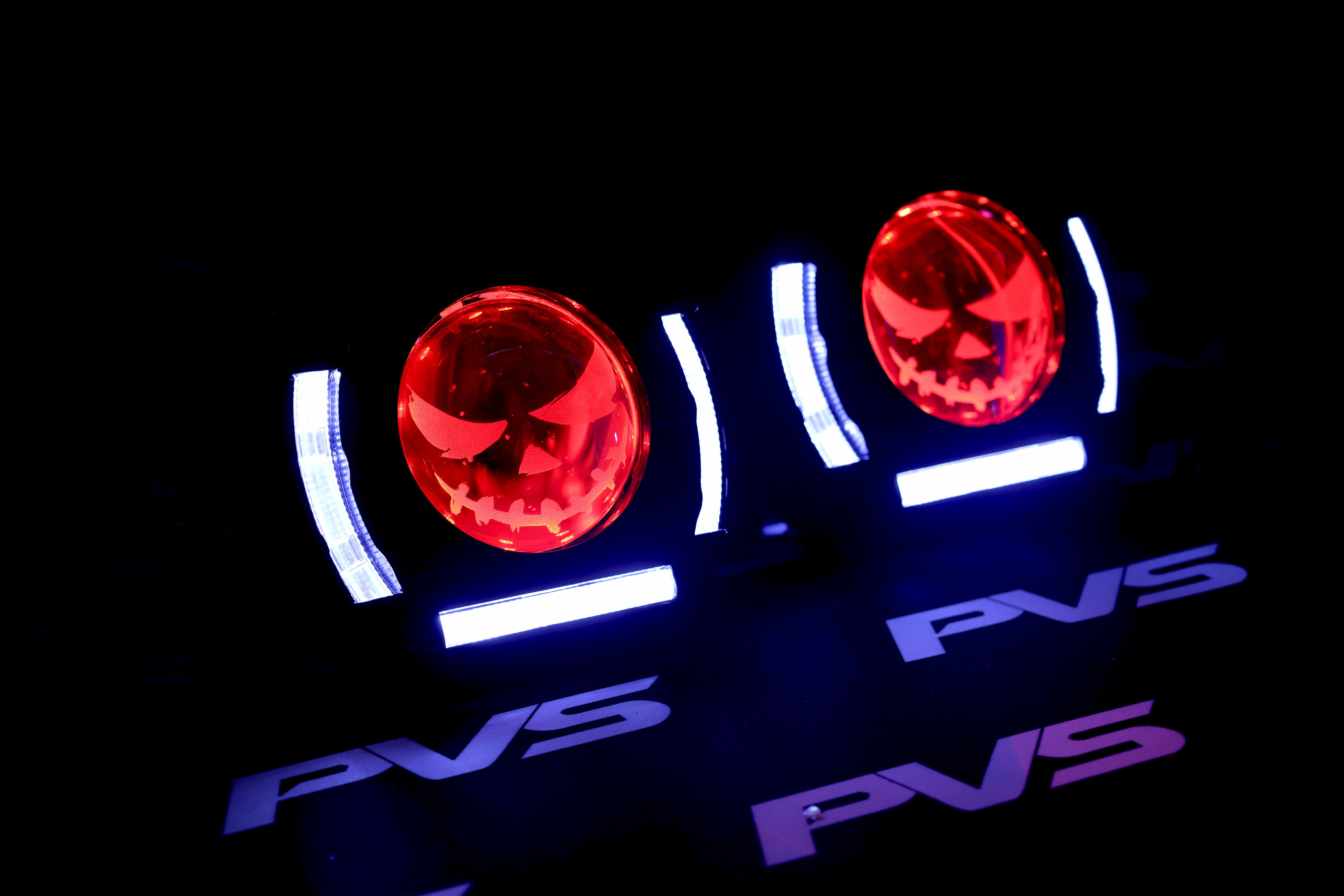

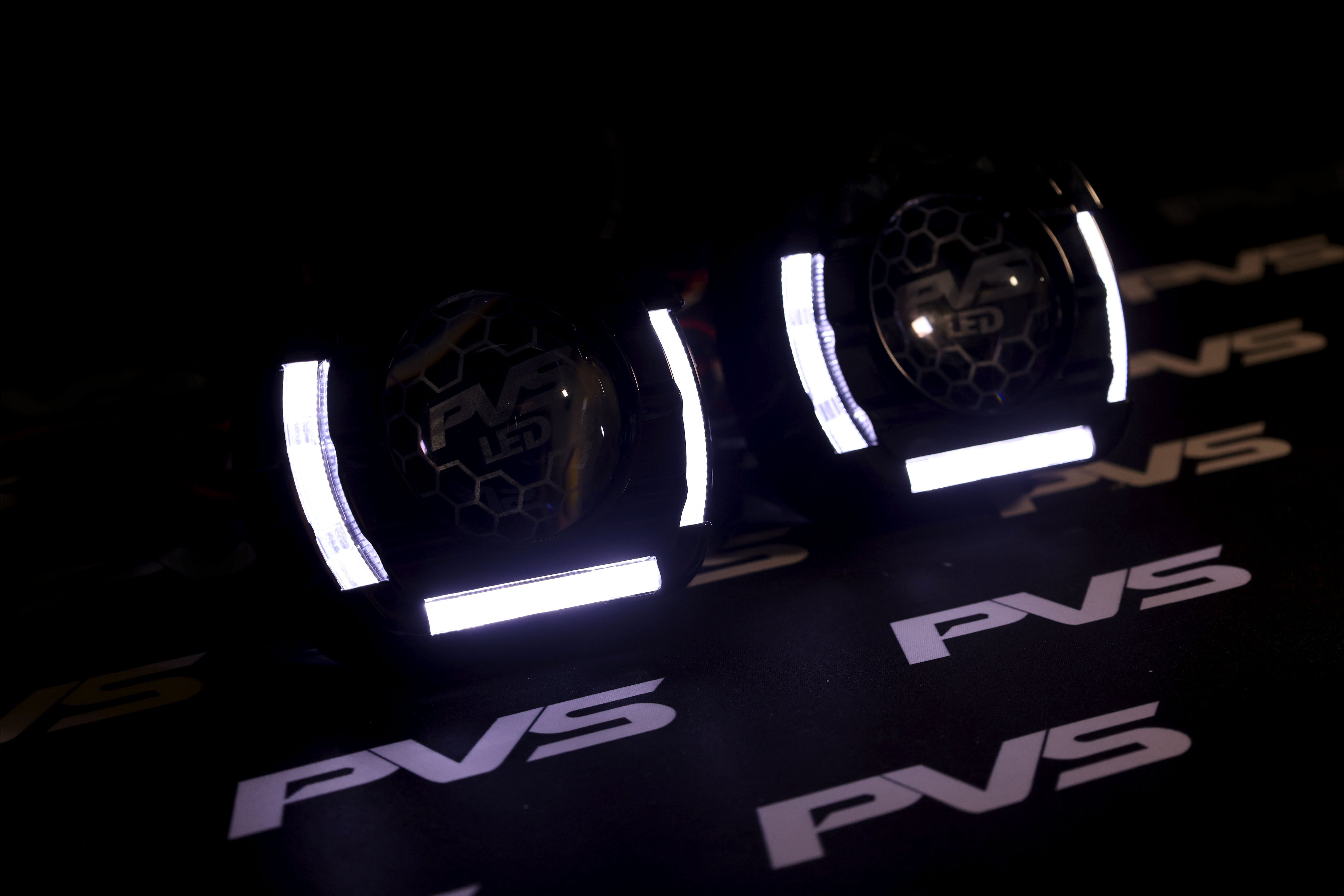

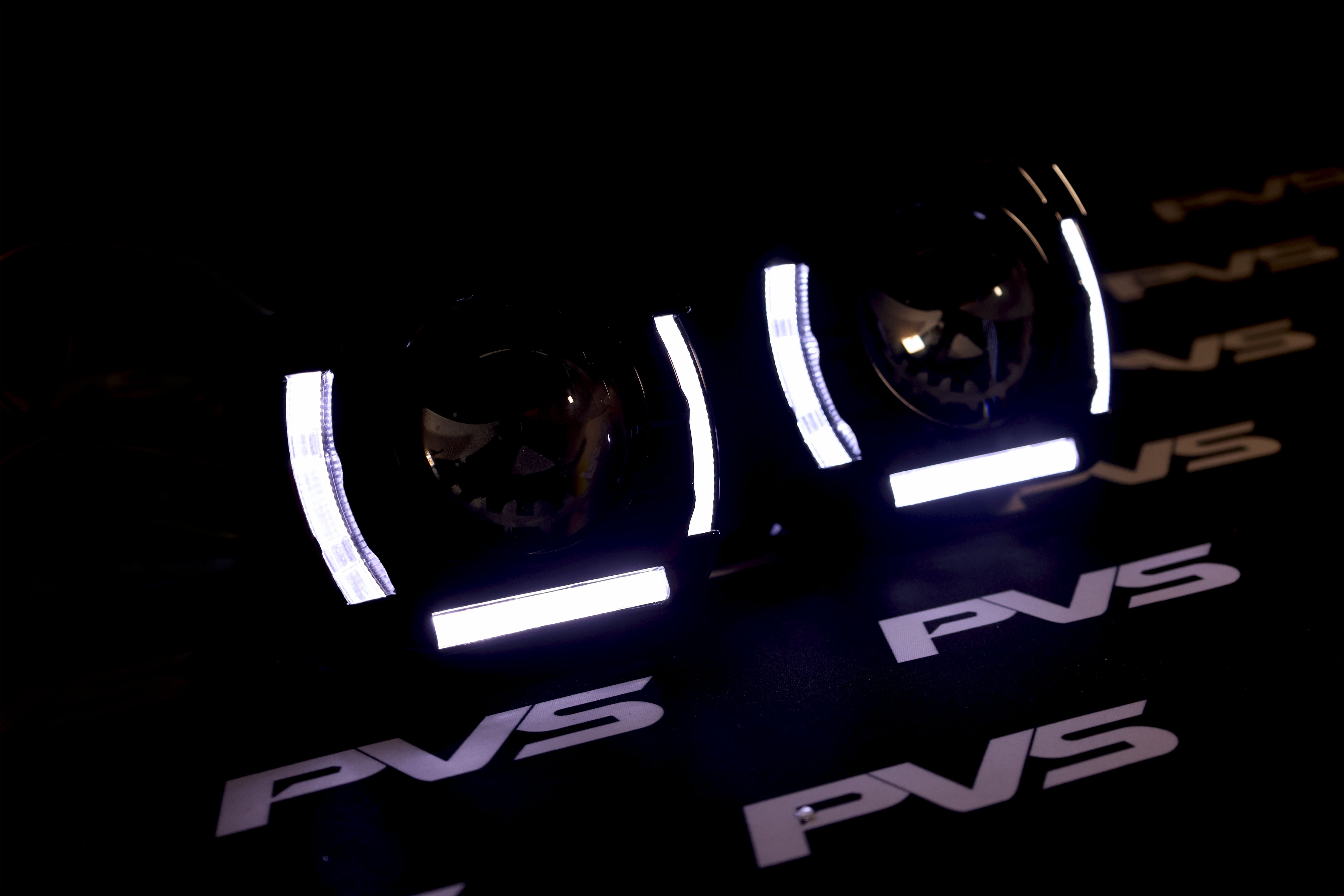

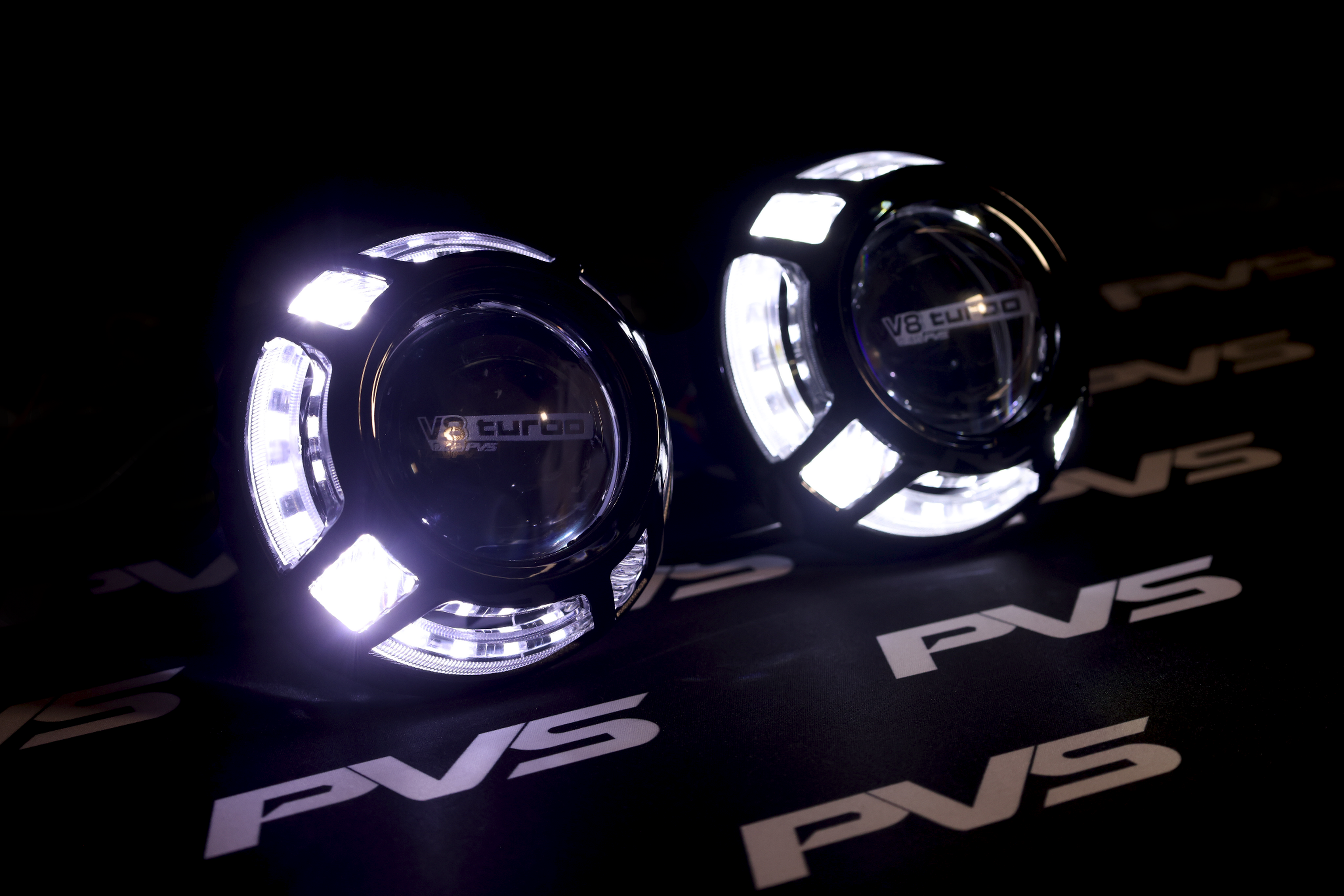

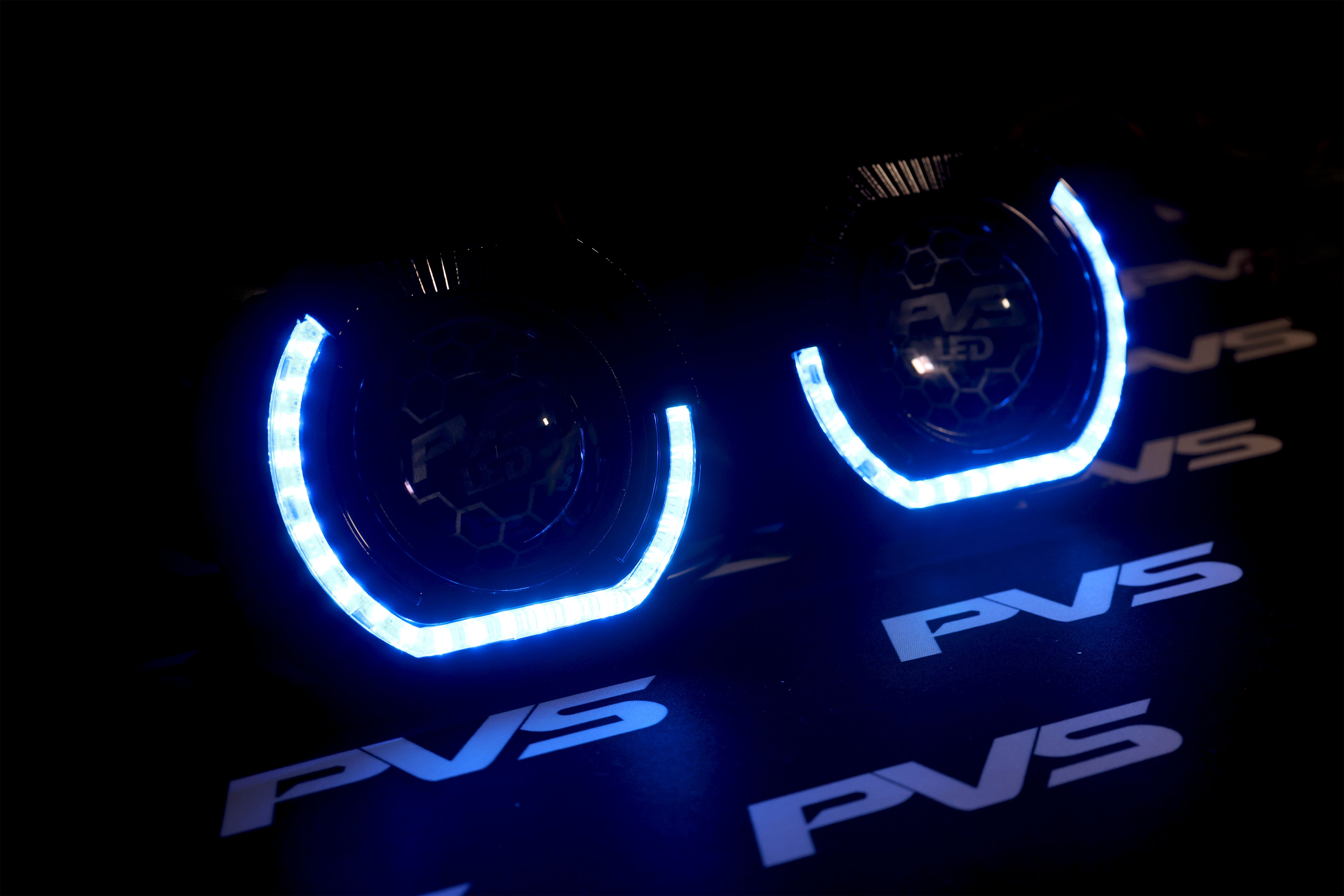

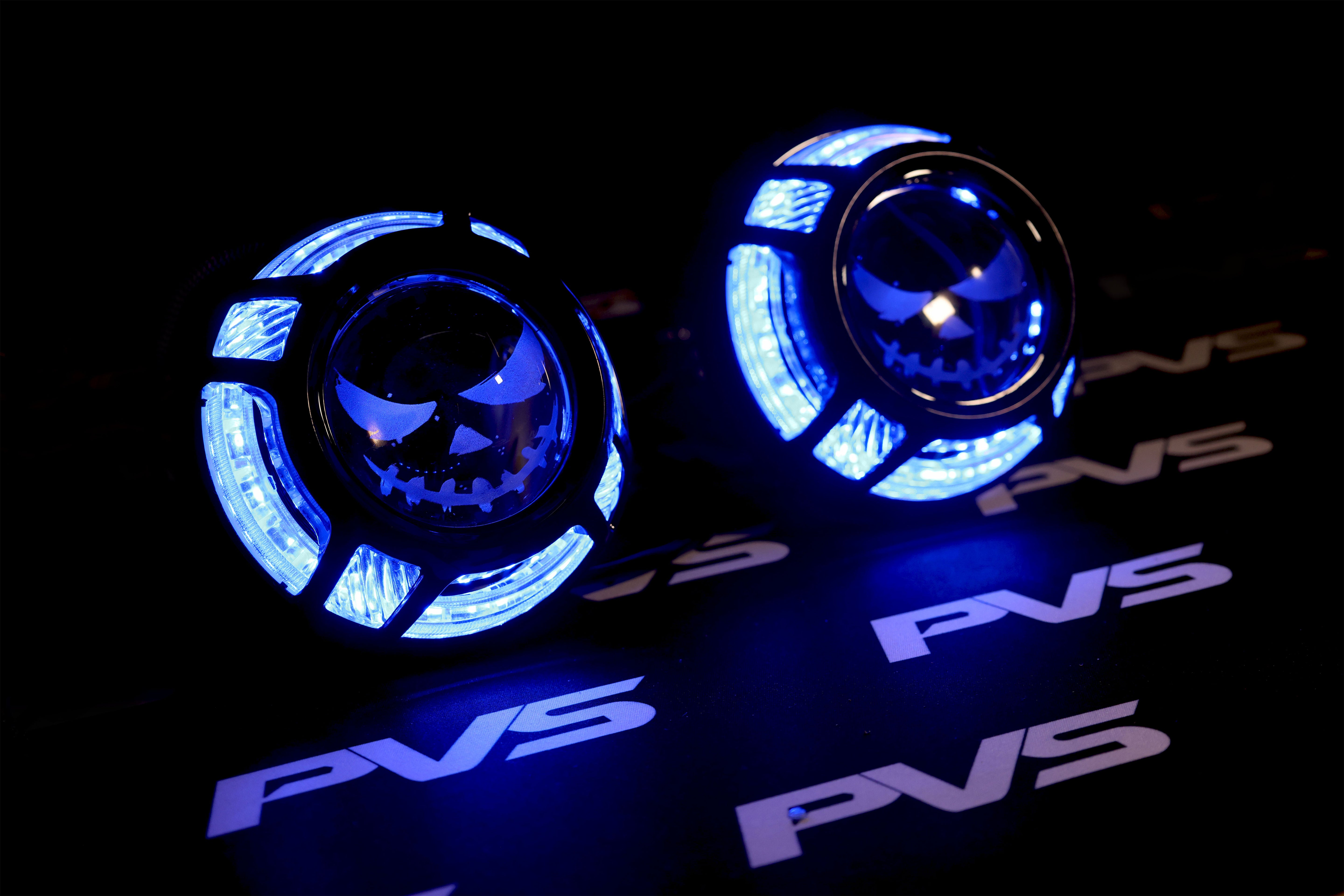

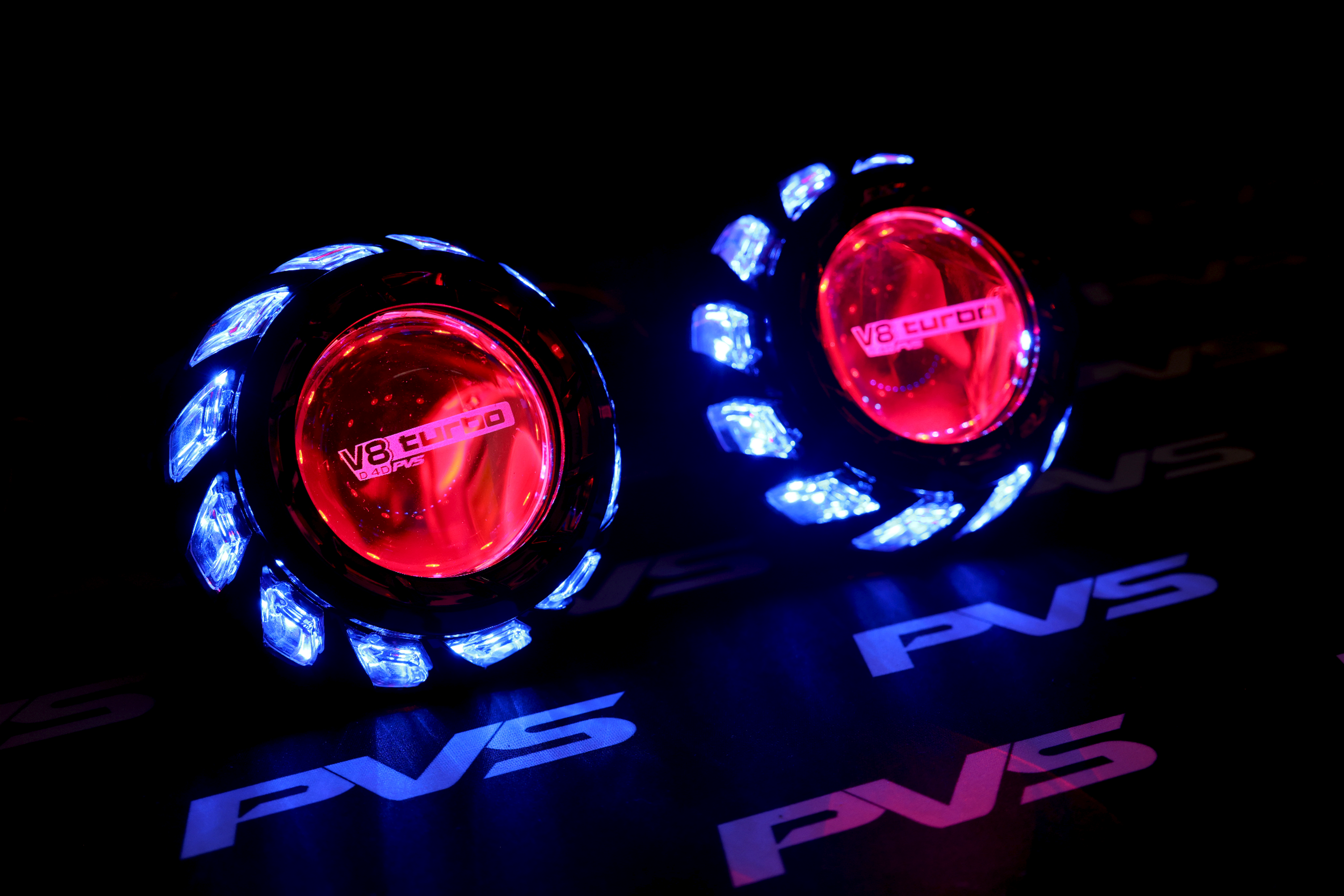

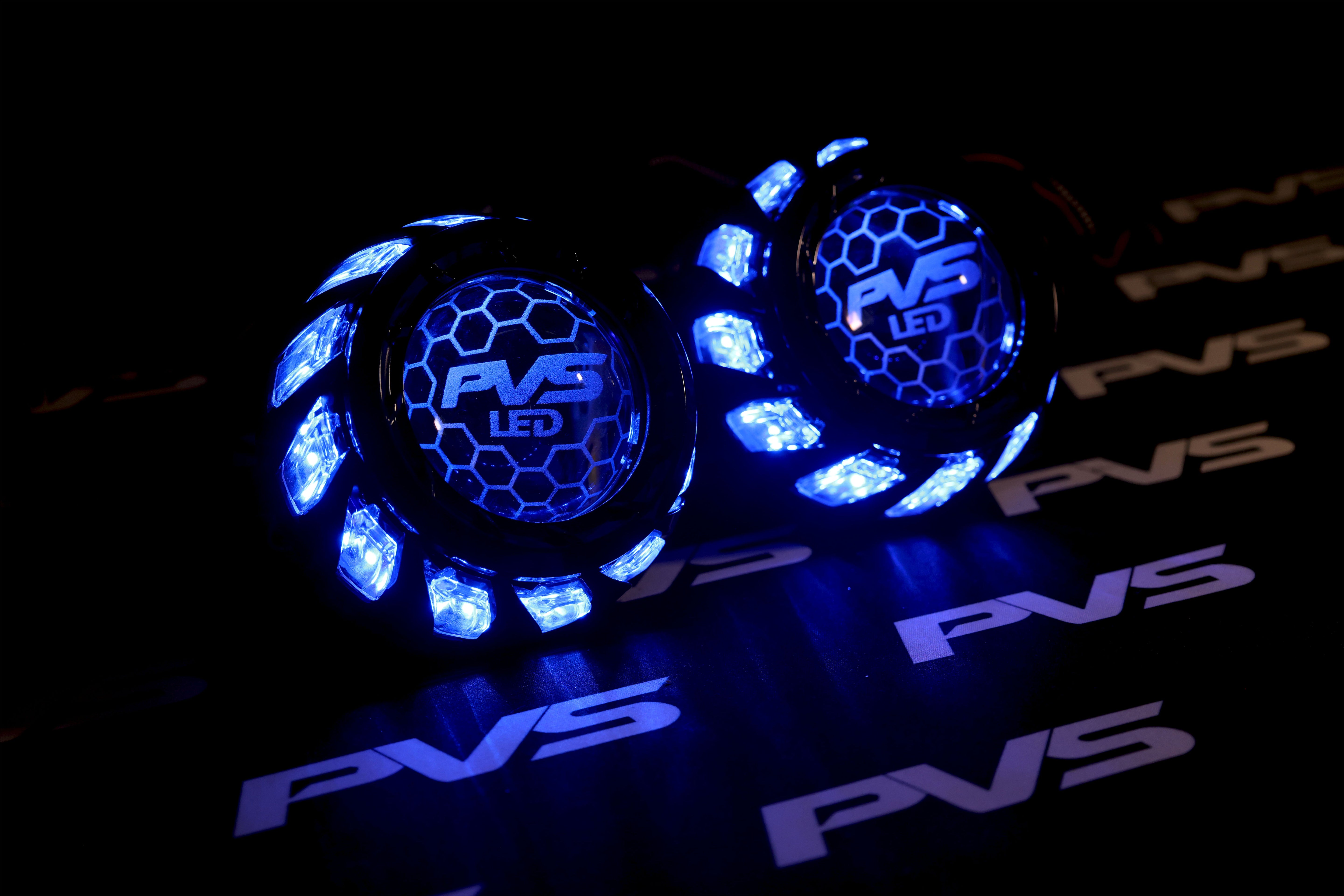

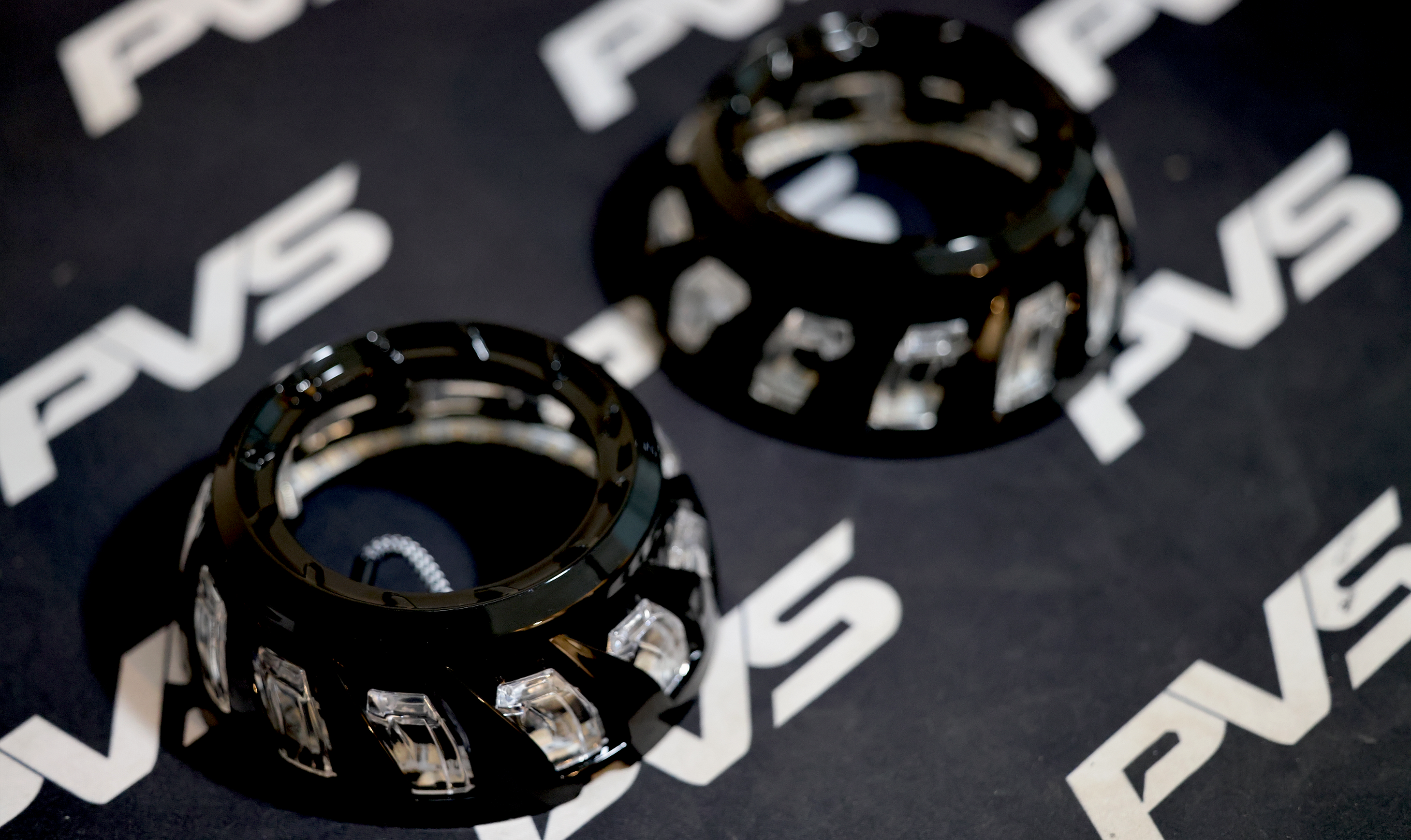

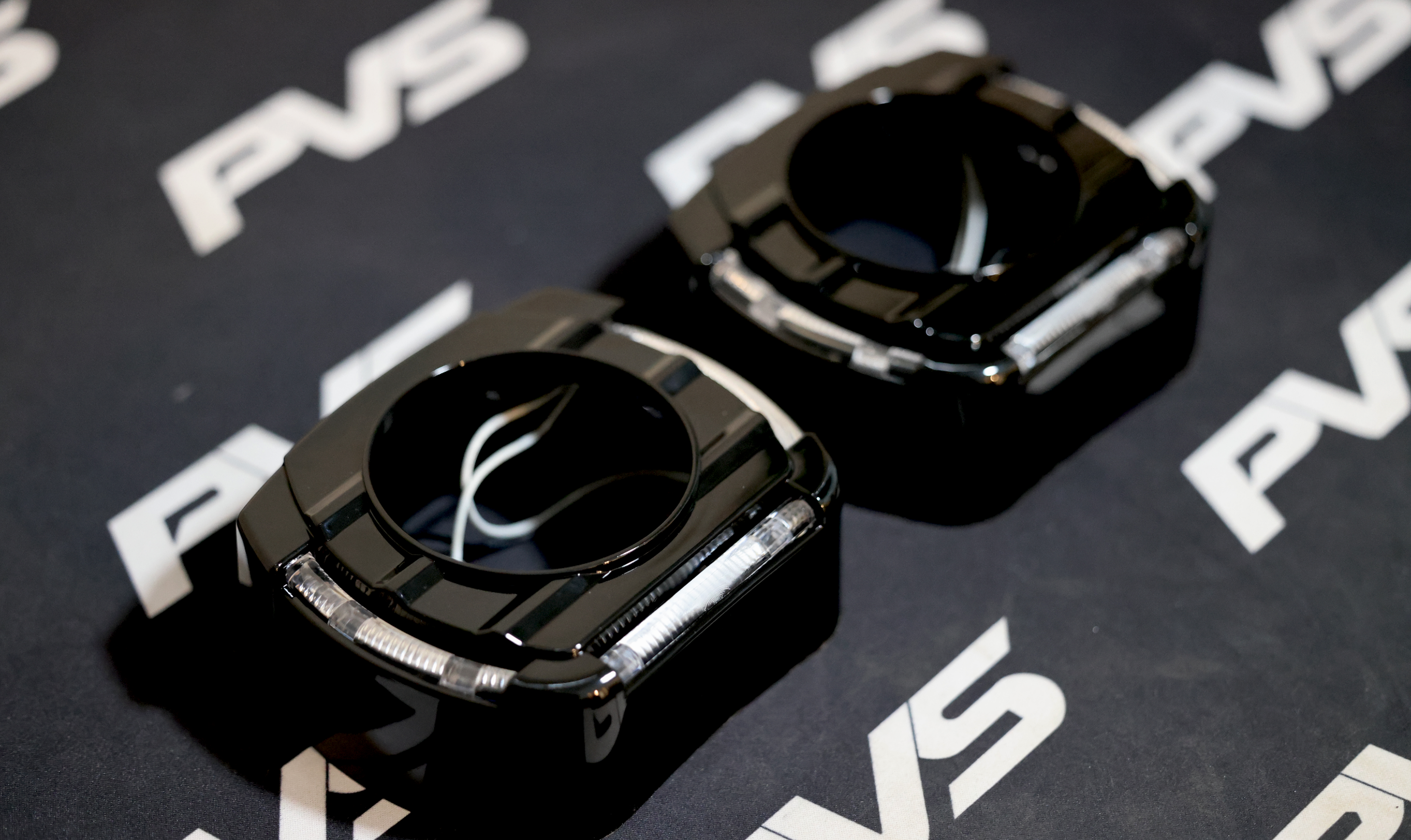

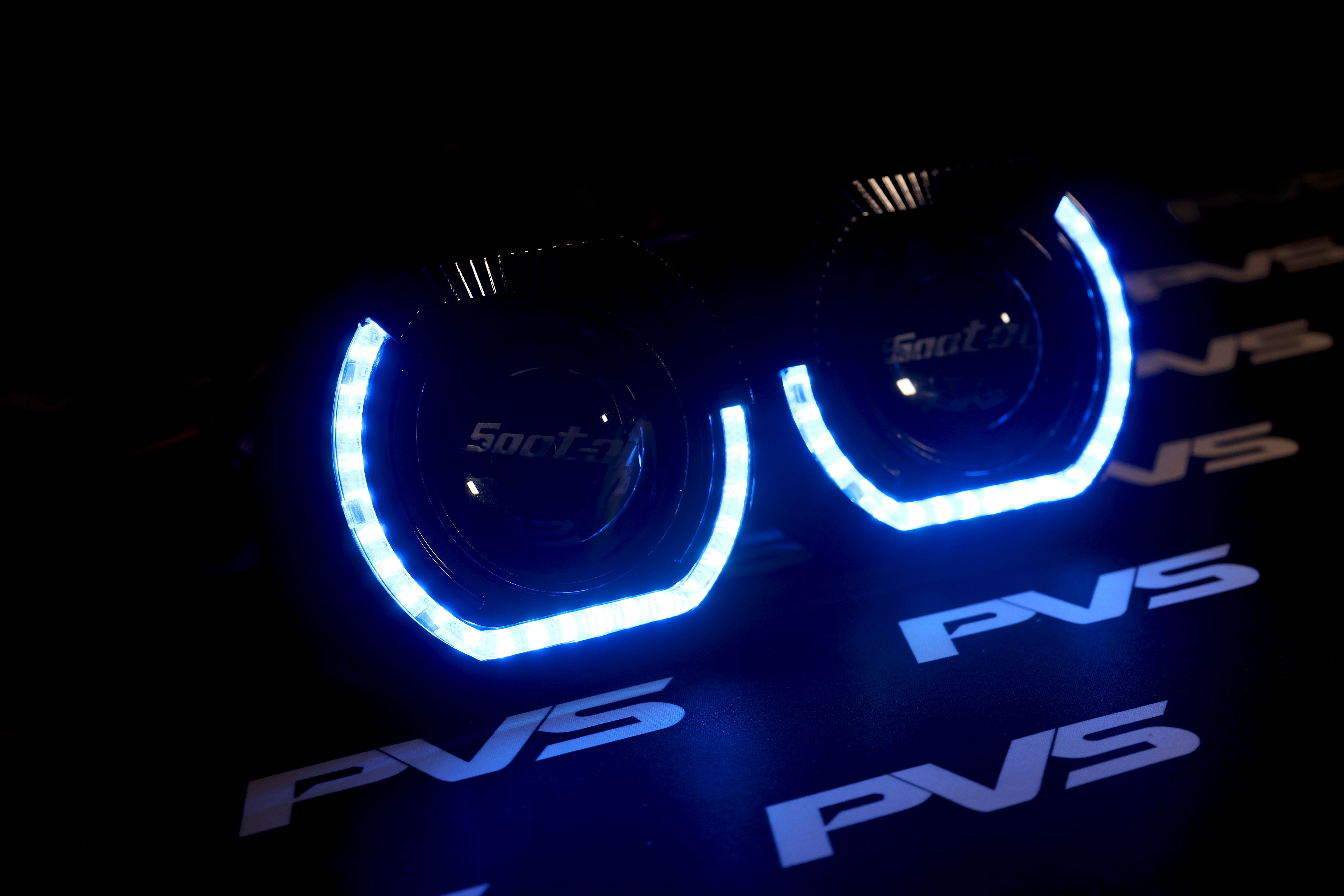

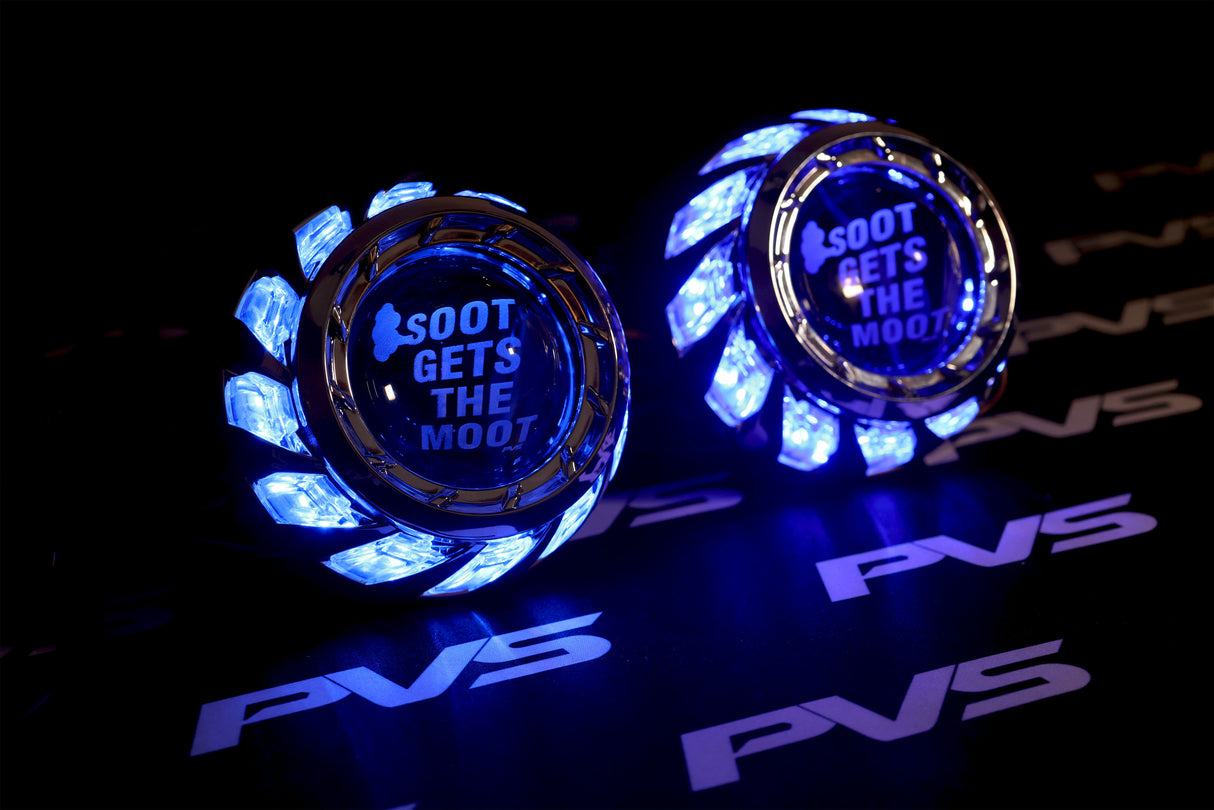

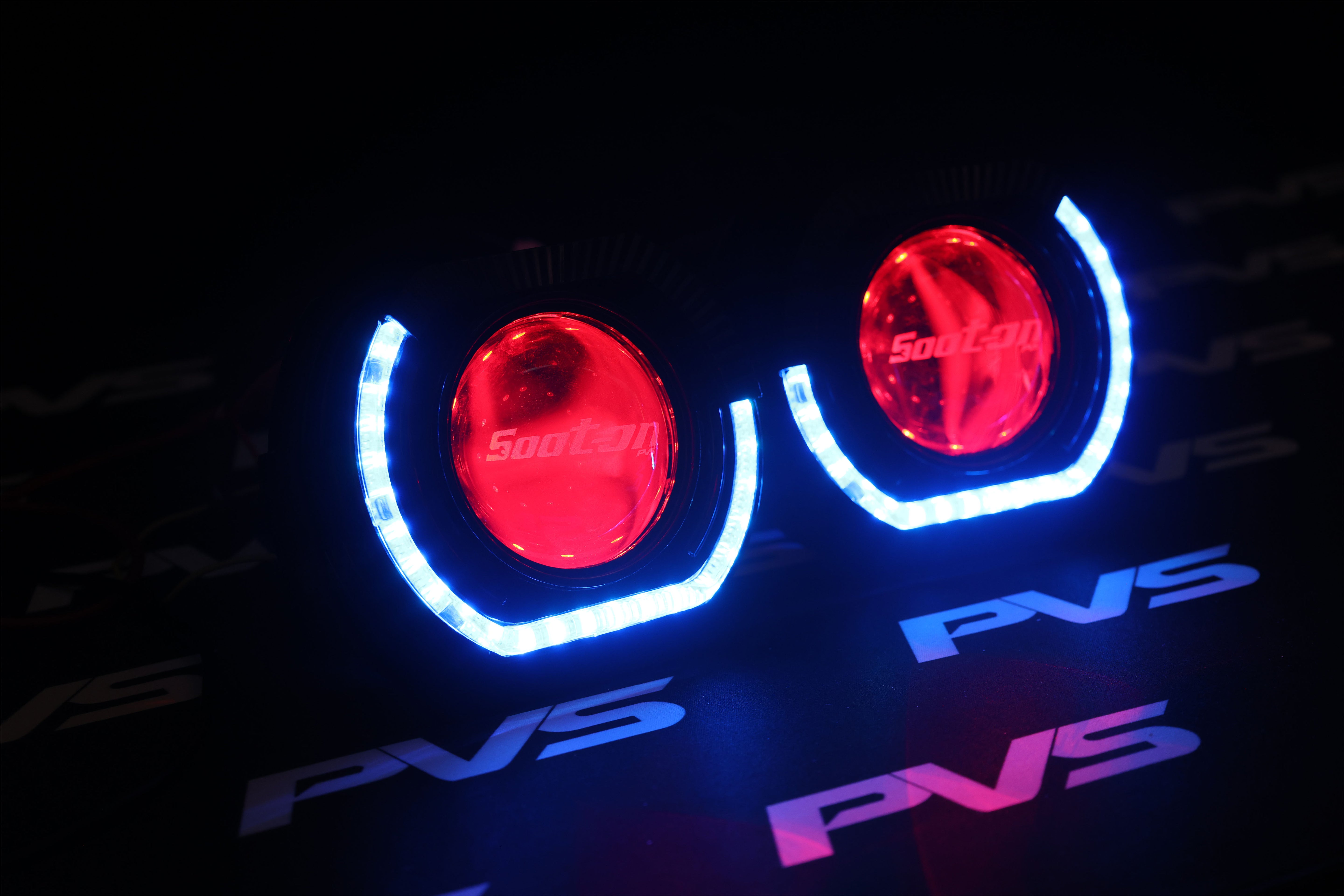

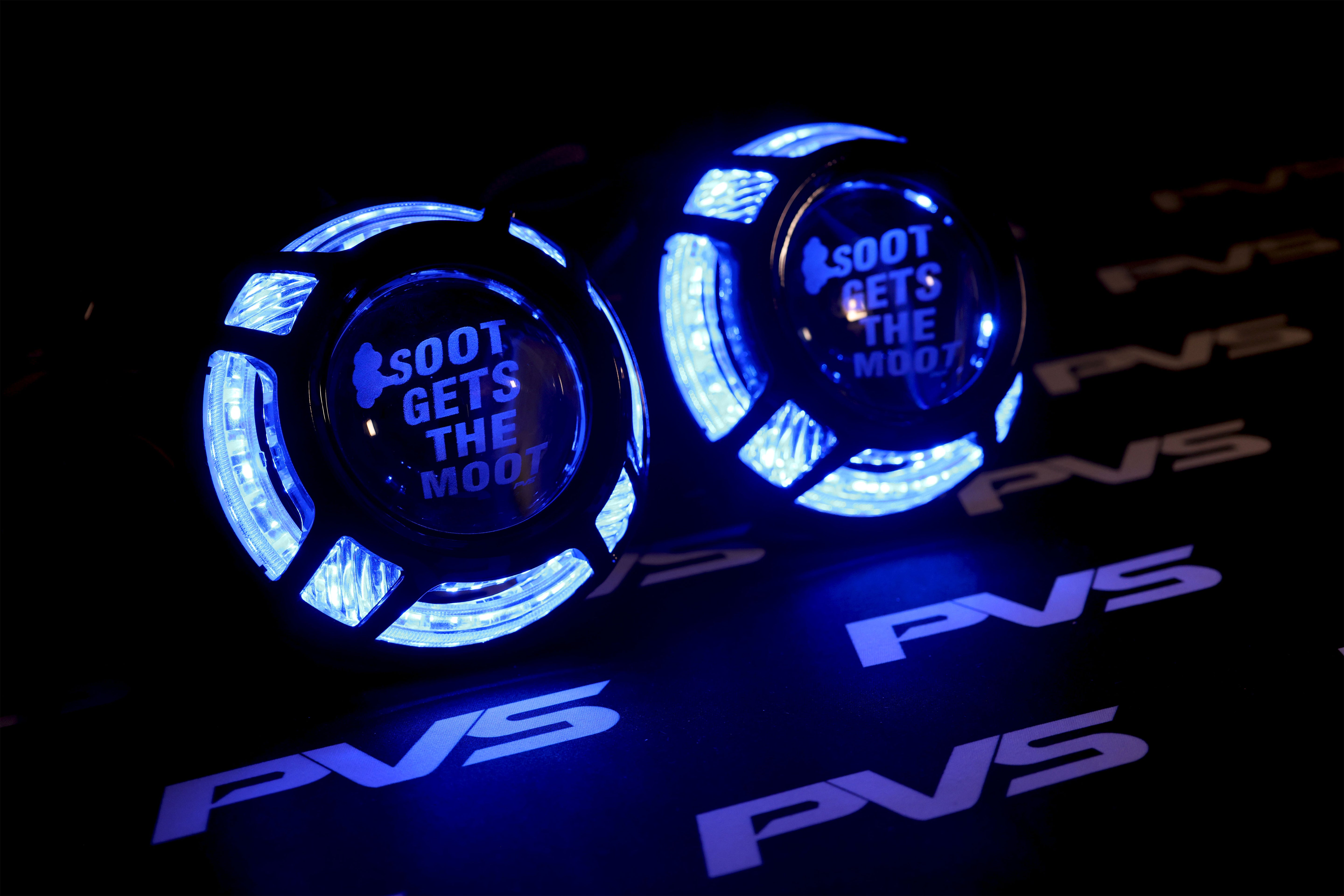

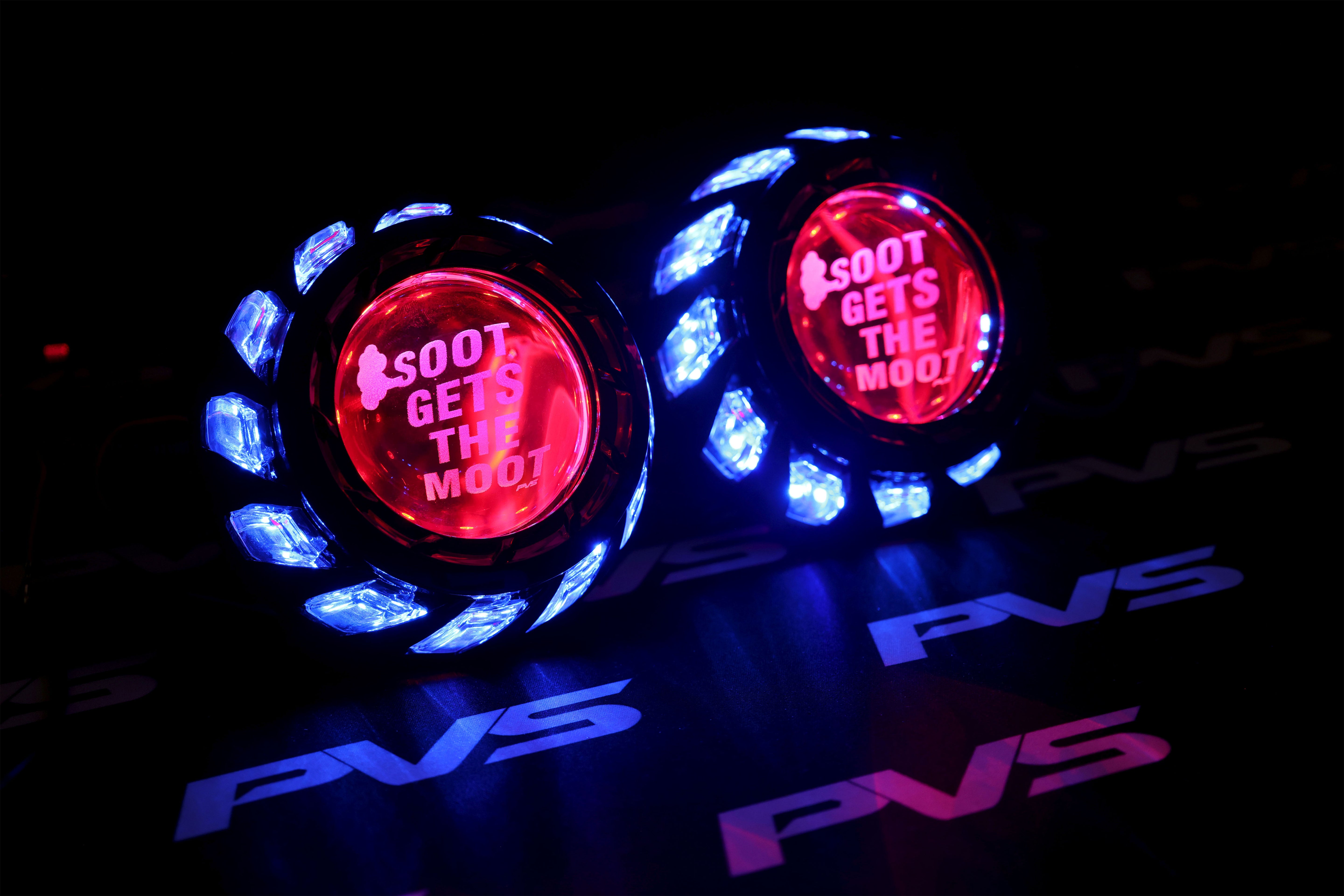

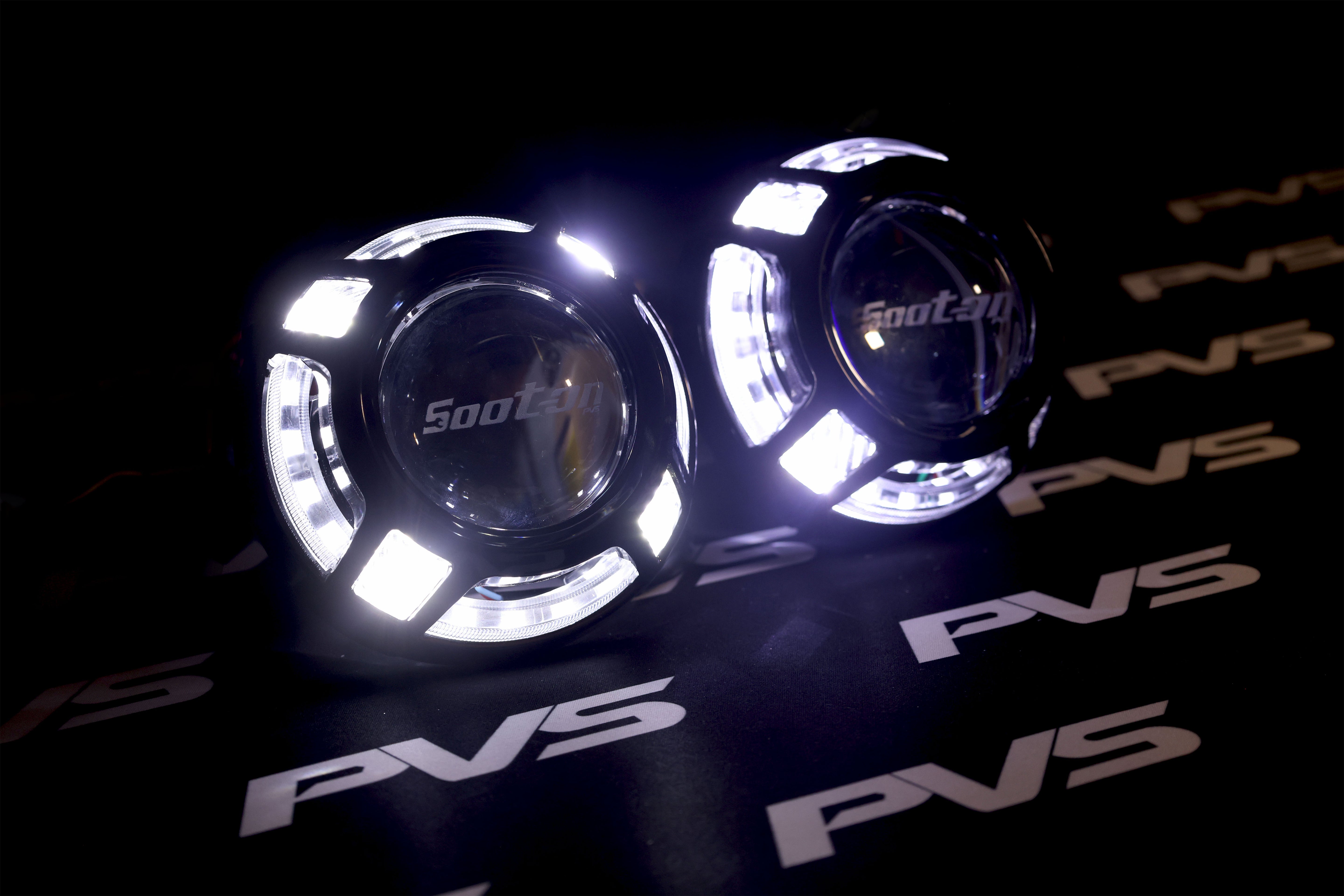

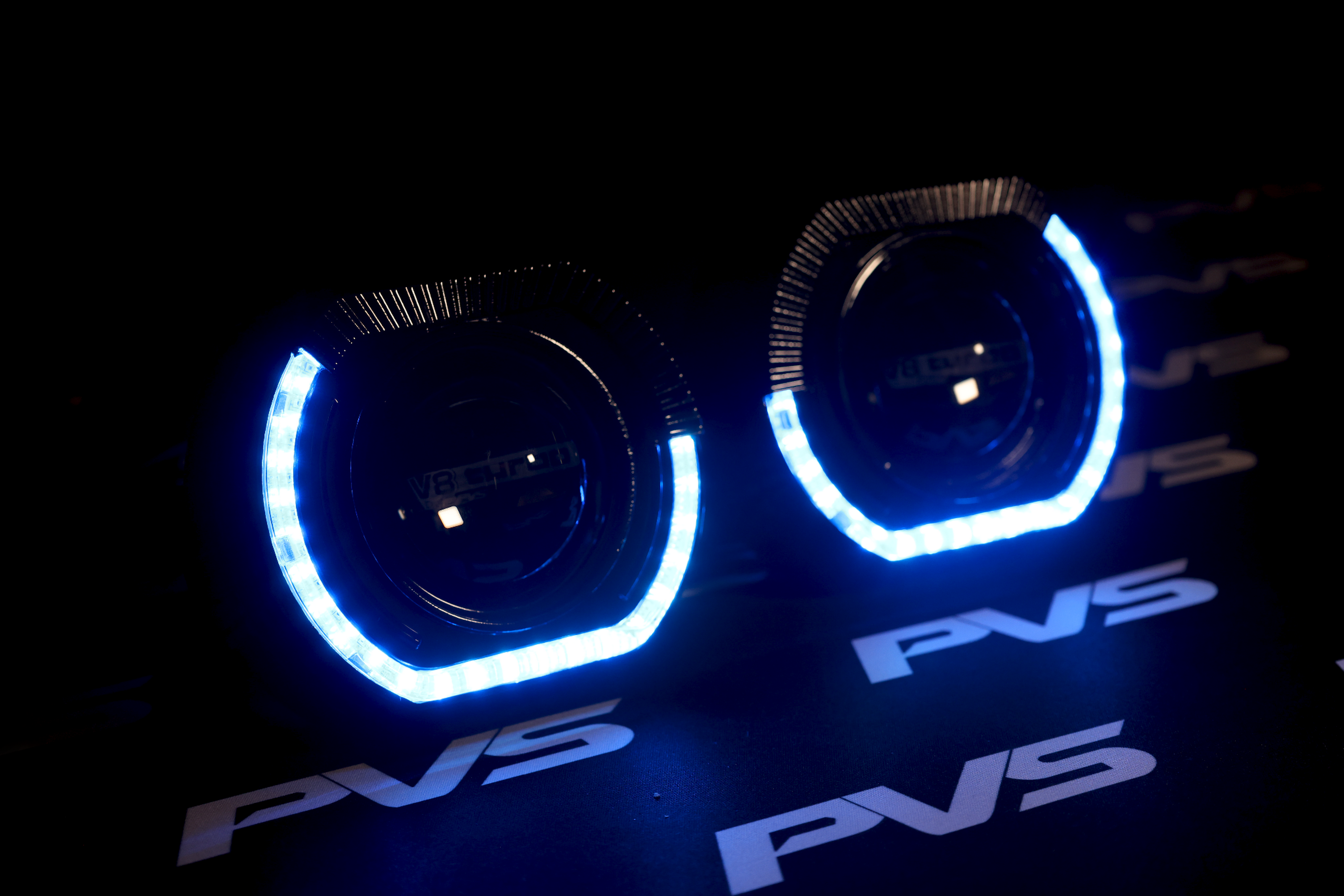

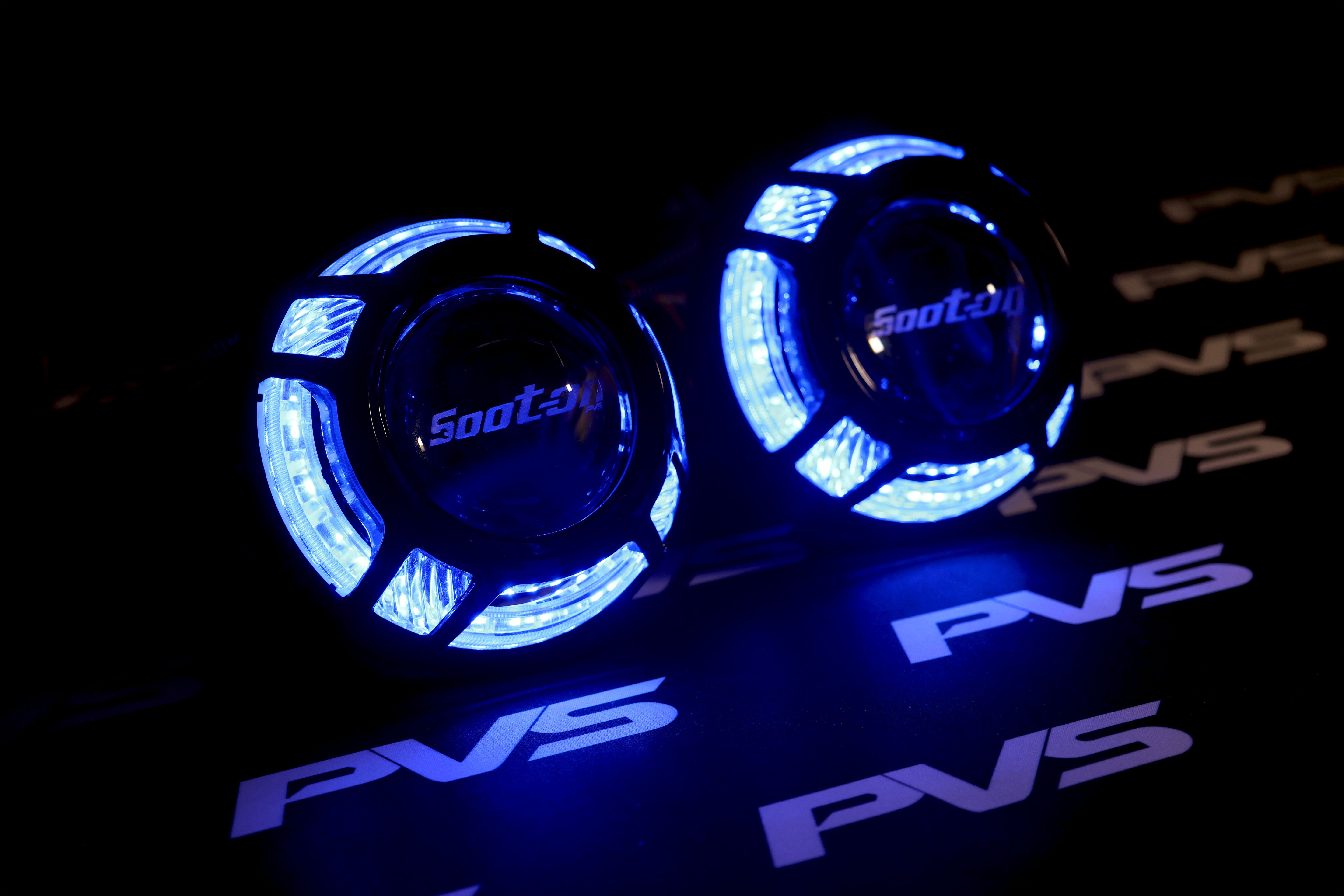

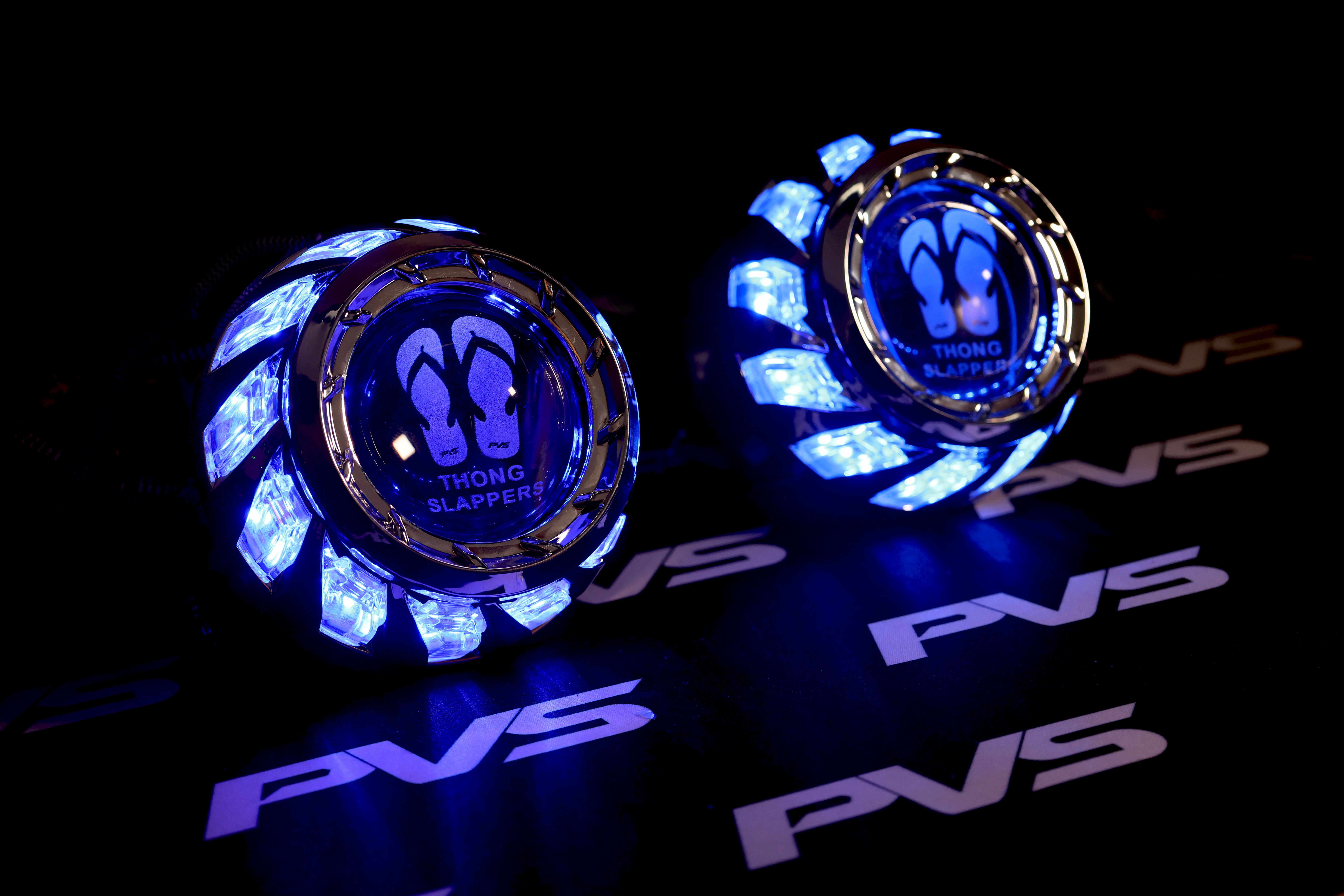

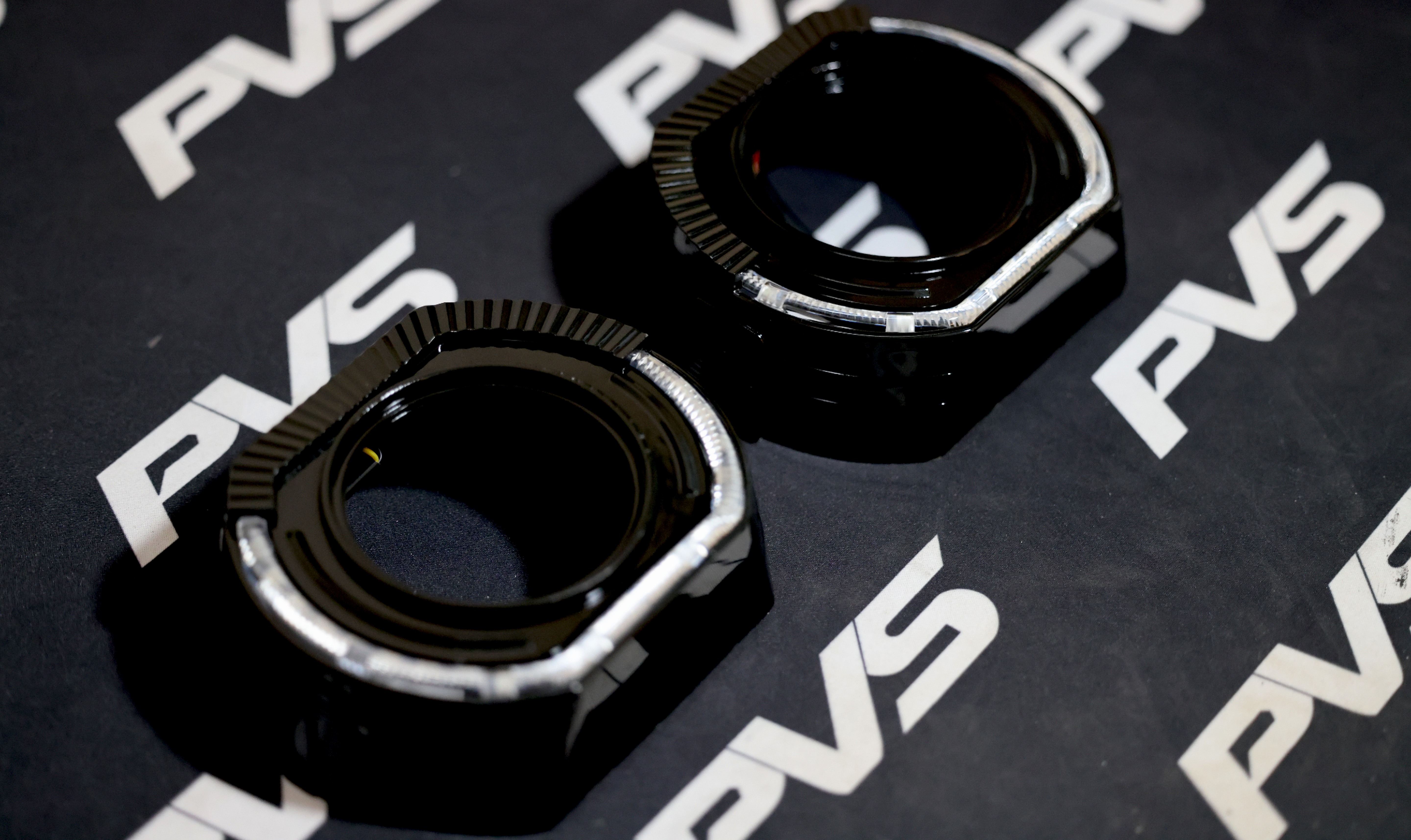

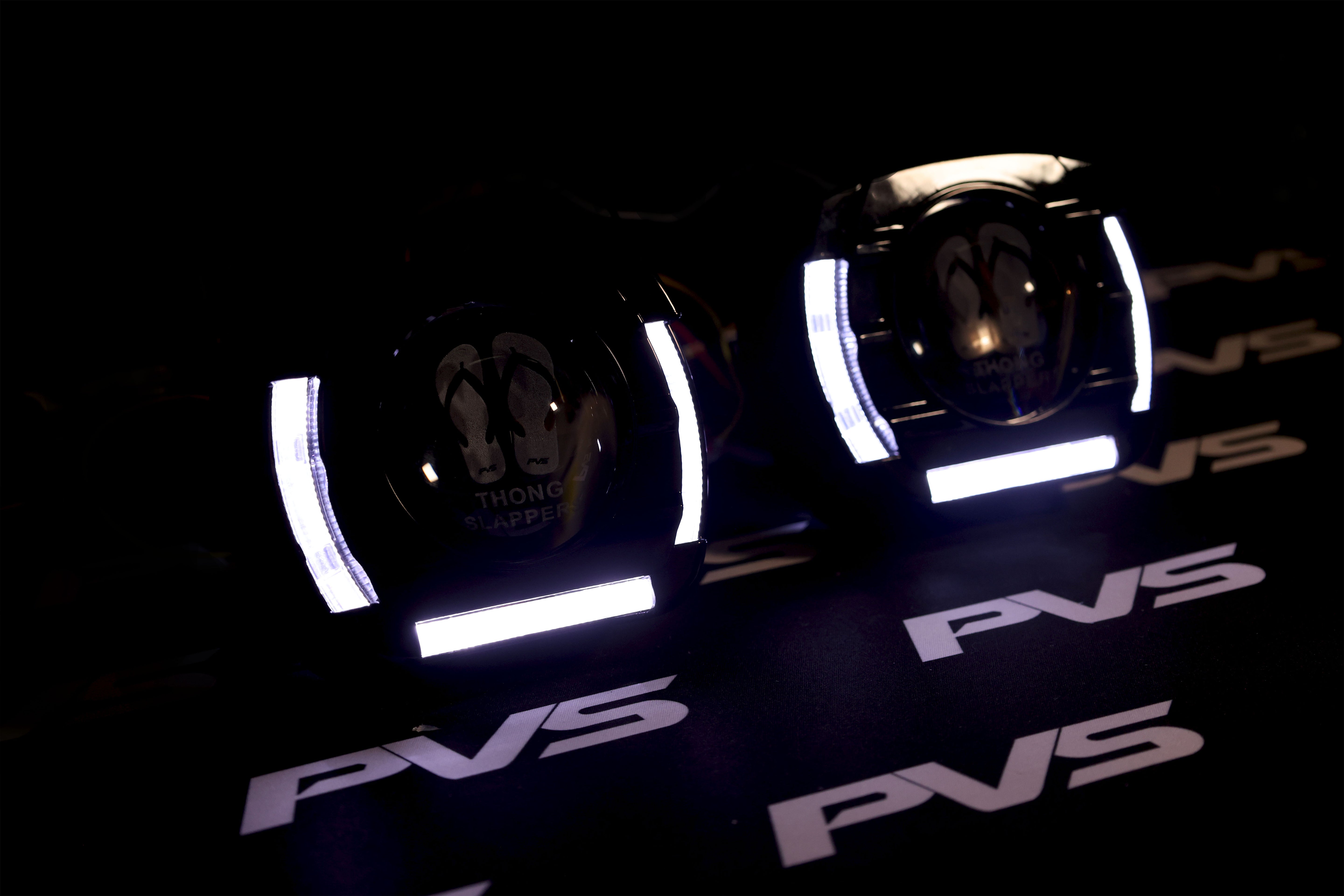

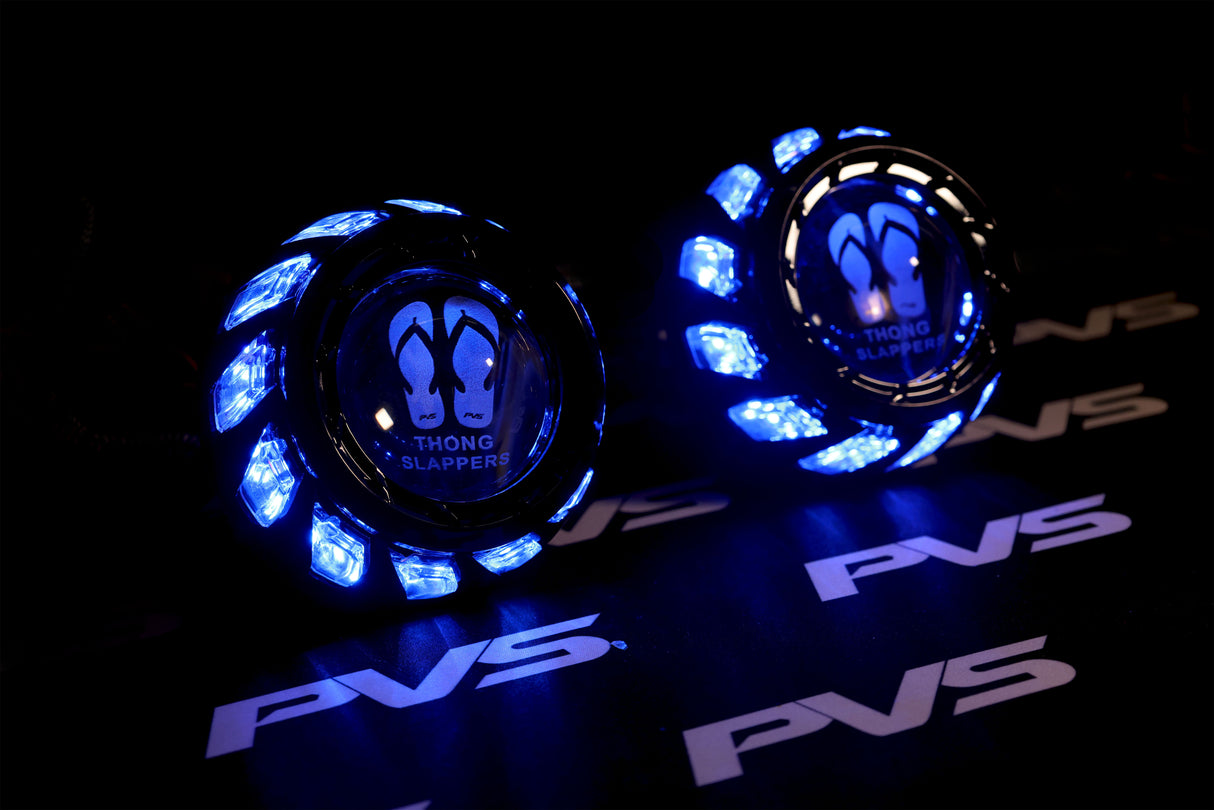

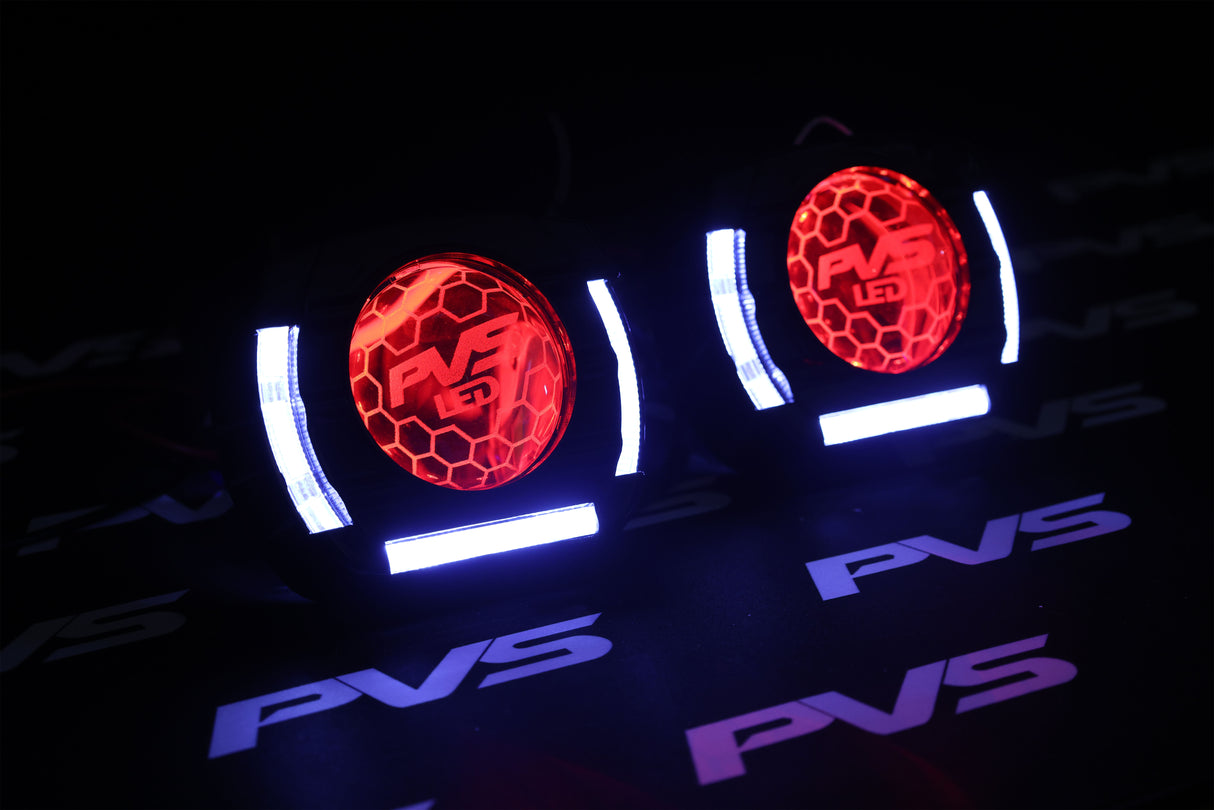

• Shrouds with Bluetooth Modules (x2) – Adds DRL and colour control features via your smartphone
• Dust Caps (x2) – Seals the back of the housing to prevent moisture entry
• Rubber Glands (x2) – Protects wiring and maintains watertight seal
• Breather Valves (x4) – Prevents condensation buildup inside the headlight assembly

Why Upgrade to the PVS DIY Projector Kit?

• OEM-Style Performance – Sharp cut-off line, bright output, and defined beam pattern
• Plug & Play Design – Designed for simple install with minimal wiring effort
• Universal H4 Fitment – Compatible with a wide range of popular H4-equipped 4WDs and utes
• Bluetooth-Controlled Shrouds – Customise colours and DRL effects directly from your phone
• Factory-Fit Aesthetics – Clean look without the bulk of aftermarket light bars or spotlights
• Weather-Sealed Components – Designed to handle the toughest Aussie conditions
• Cost-Effective Retrofit – Get projector performance without replacing your entire headlight assembly

Installation – Quick & Easy

This kit is designed for DIY installation by enthusiasts and professionals alike. You’ll need:

• 🛠 Rotary Tool or Heat Gun – To open the headlight housing
• 🛠 Screwdriver & Spanner Set – For fitting brackets and securing the projectors
• 🛠 Silicone Sealant – To reseal your headlights after installation
• 🛠 Smartphone – For Bluetooth setup and shroud control

Vehicle Fitment

Compatible with vehicles that use H4 halogen headlights, including:

• ✅ Toyota Hilux 2001–2005 (N140, N150, N160, N170 Facelift)
• ✅ Toyota Hilux N70 (SR/SR5)
• ✅ Toyota Hilux N80 (SR Halogen Models)
• ✅ Toyota Prado 120
• ✅ Toyota LandCruiser 76, 78, 79, 100, 105 Series
• ✅ Holden Colorado RC & RG (H4 Halogen Models)
• ✅ Isuzu DMAX / MU-X (All H4 Halogen Variants)
• ✅ Mazda BT-50 (2011–2019, Halogen Models)
• ✅ Mitsubishi Triton MN (All Halogen Models)
• ✅ Nissan Navara D22
• ✅ Nissan Navara D23 (RX, DX & 2021+ SL)
• ✅ Nissan GU Patrol (All Y61 Variants)
• ✅ Ford Ranger 2006–2011
• ✅ Ford Ranger PX1, PJ

Important Notes

• 📌 Headlight Compatibility – This kit is designed specifically for vehicles with factory H4 halogen headlights. It will not suit factory HID or LED headlights.
• 📌 Professional Sealing Recommended – For best results, reseal headlights using high-temp silicone to ensure long-term weather resistance.
• 📌 Shroud Power – Bluetooth DRL shrouds require a 12V accessory or DRL power source for full functionality.
• 📌 Legal Use – Ensure alignment and compliance with local headlight regulations after installation.
