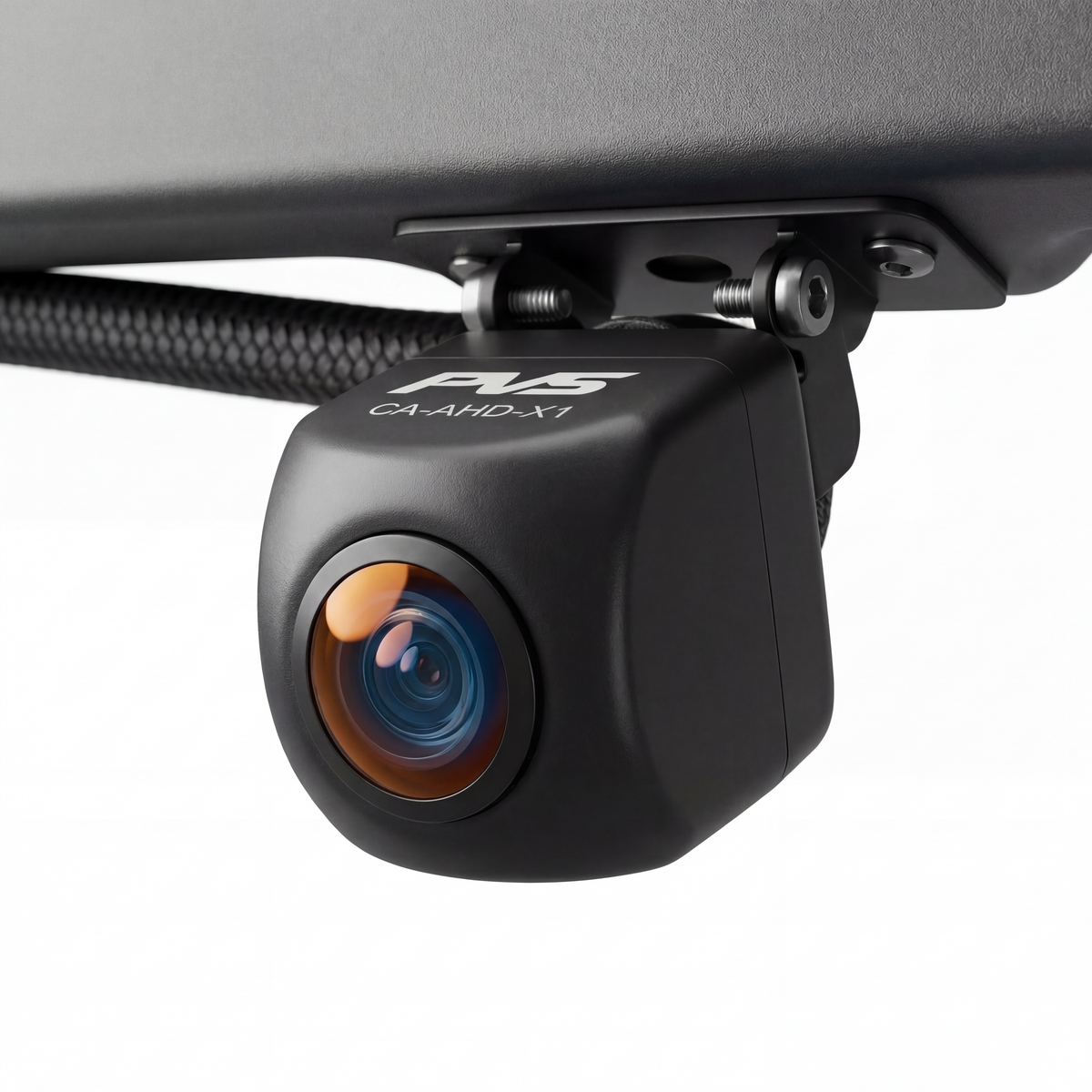

FULLHD 720/1080p Camera
Compatible with AHD Headunits ONLY
Installation Instructions
The reverse camera kit has two ends. One end has the RCA Cable with a Red Cable, this connects to Reverse Cont./BACK on the back of the headunit.
The other end with the Red and Black Wires need to tap into the Reverse Lights.
RED Wire > RED/BLACK Cable on Tail Lights
BLACK WIRE > GROUND
Camvin on the main harness is for reverse input. The other 2 RCA cables are for AUX Cameras.
Please note the setting on our 9 inch headunit is set to AHD720p 25fps
Settings>Car Settings>Reverse Camera>Camera Type>AHD 720P 25fps
